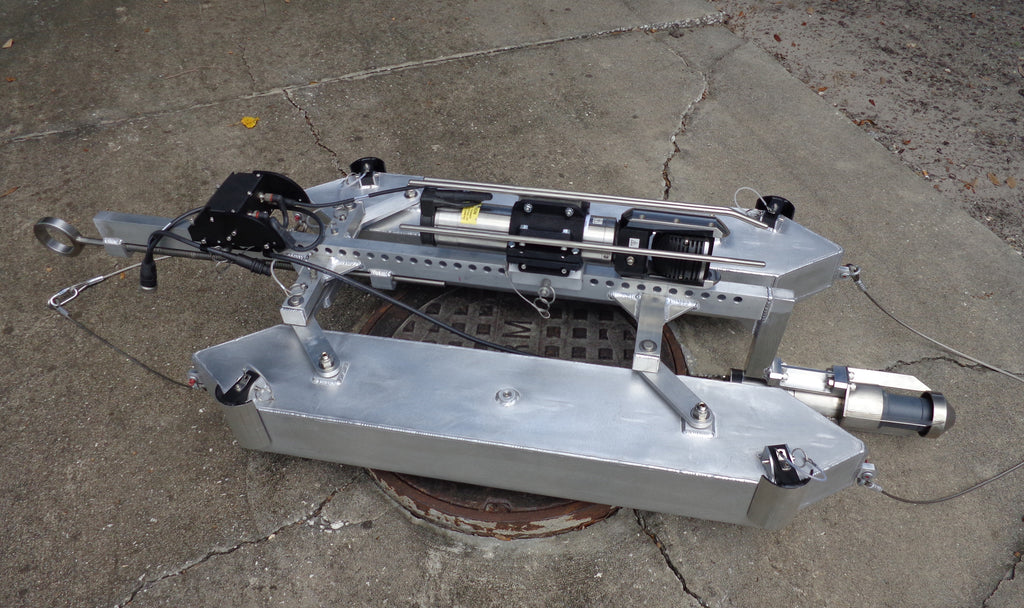

CUES CATVS combined TV and sonar system

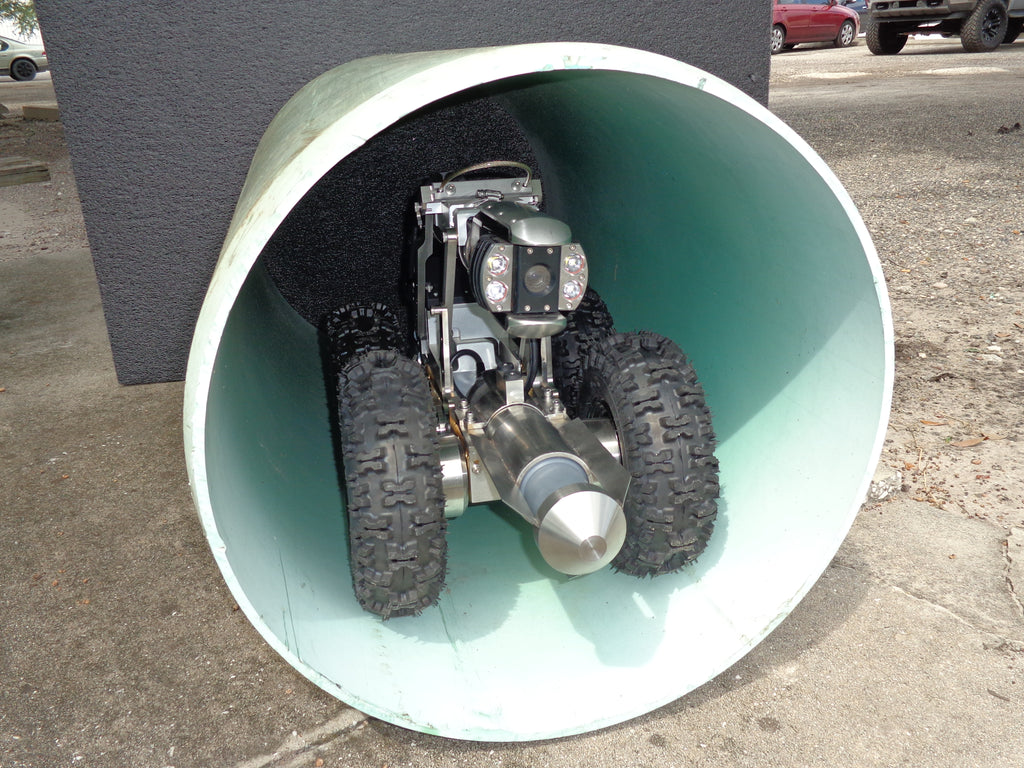

CUES CATVS sonar on transporter

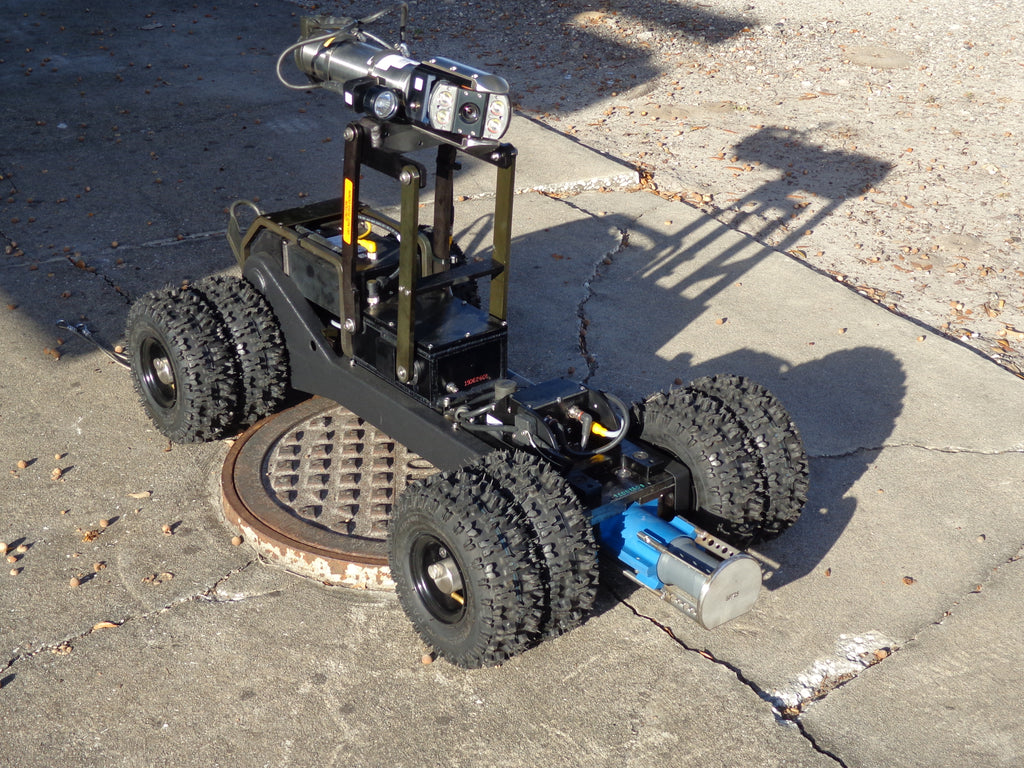

CUES CATVS black wheeled transporter with raised camera and sonar over a manhole cover

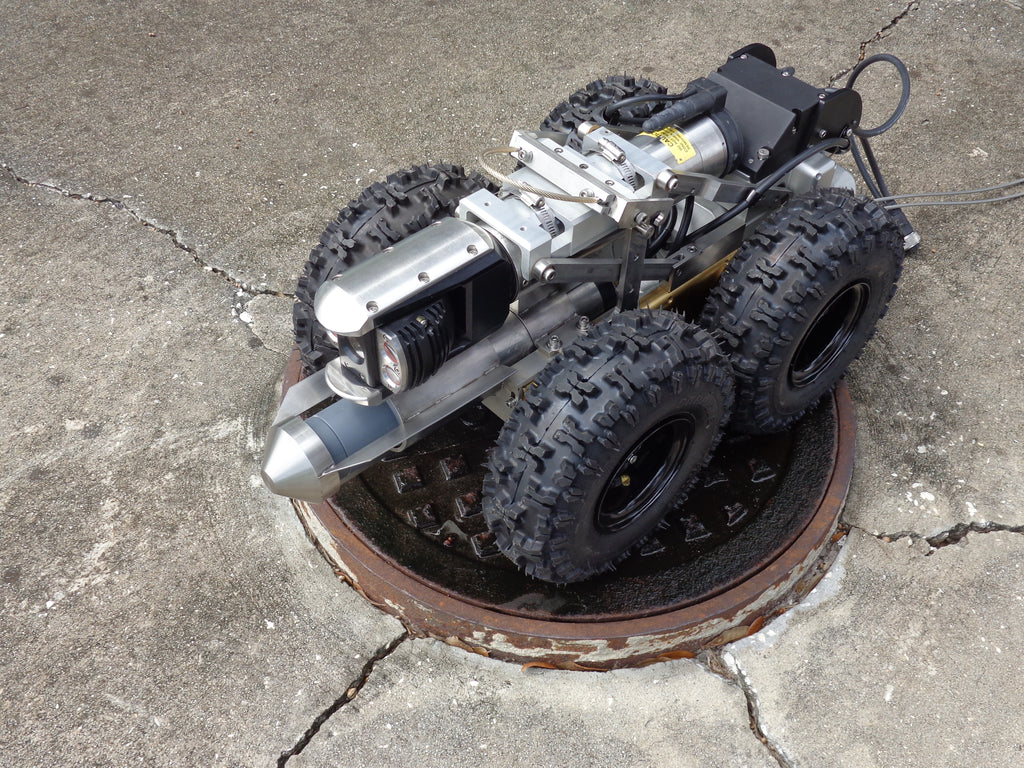

CUES CATVS stainless transporter with camera and sonar on a manhole cover
Sourcewell awarded contract 080525-CUE for CUES equipment
CUES

CATVS Combined TV & Sonar

request price / demo download specs share equipment
description specs

Overview

CUES CATVS (Combined Analog TV & Sonar) transmits video and sonar on one multi-conductor cable. Inspection distance is up to 5,000 ft. (1,524 m), depending on the equipment configuration.

Key Features

  • Simultaneous TV/Sonar inspections with only one reel
  • Receiver requires one 1U rack opening in the control room
  • Compatible camera: OZII, using a standard CUES gold cable

Options & Configurations

CATVS is configurable with the CUES Base Station.

Features

  • Model: CATVS
  • Full model name: CATVS Combined Analog TV & Sonar
  • Transmission: Video and sonar on one multi-conductor cable
  • Compatible camera: OZII, using a standard CUES gold cable
  • Adaptable platforms: Multiple, including Sonar Float, steerable and non-steerable Pipe Ranger transporters, and the MudMaster transporter
  • Inspection distance: Up to 5,000 ft. (1,524 m), depending on equipment configuration
  • Simultaneous TV/Sonar inspections with only one reel
  • Receiver requires one 1U rack opening in the control room
  • Retrofit: Bolt-on upgrades to an existing transporter and float
  • Configurable with the CUES Base Station
  • TV/Sonar work using transporters does not require a winch and tagline
