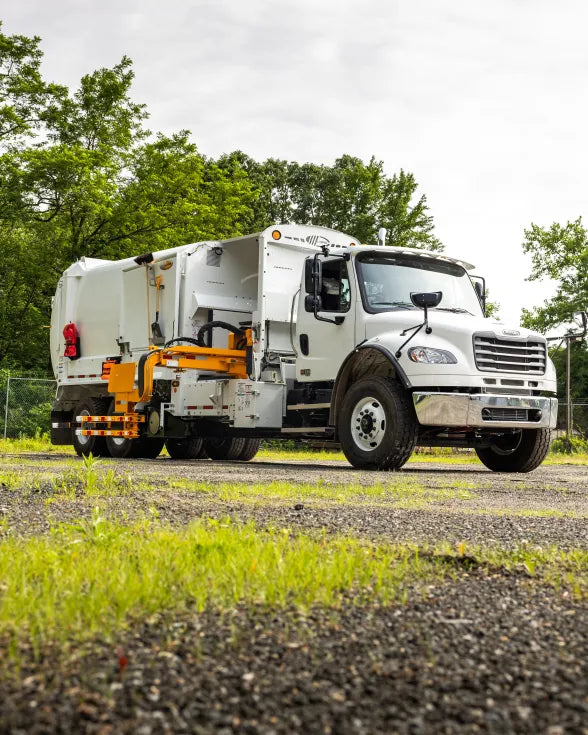

Automated side loader refuse body on a white truck, front three quarter view

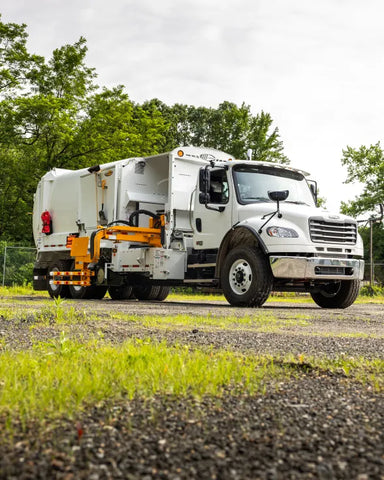

Automated side loader refuse body on a white truck, front three quarter view

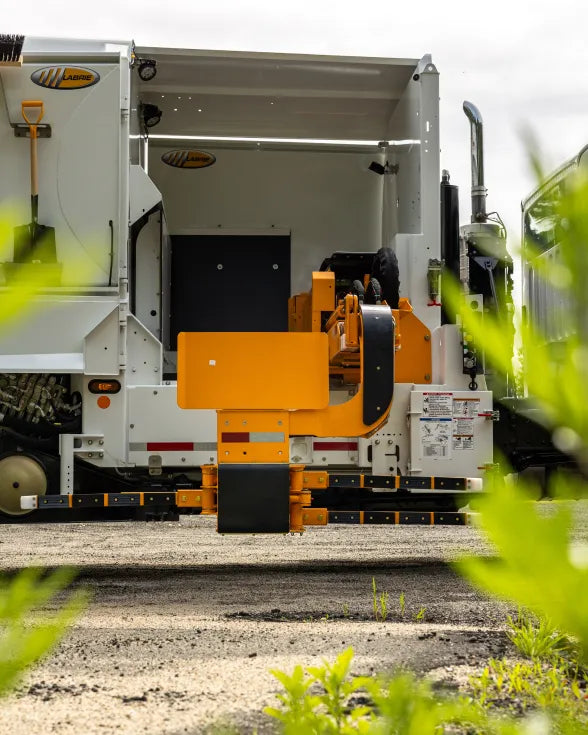

Automated side loader arm and grabber beside the hopper

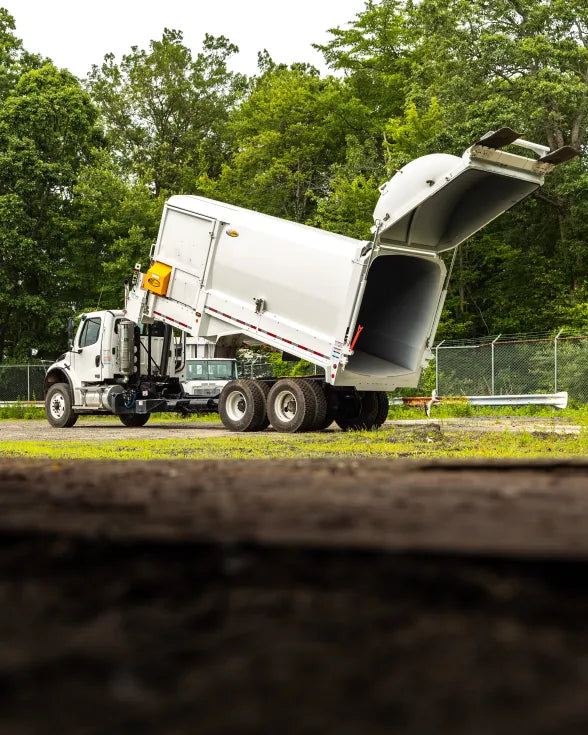

Side loader refuse body raised to dump with the tailgate open

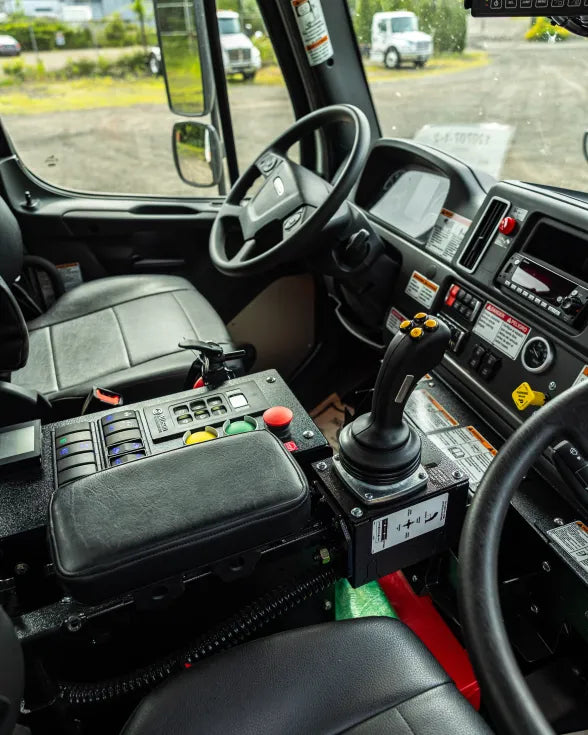

Truck cab interior with dual steering and joystick controls

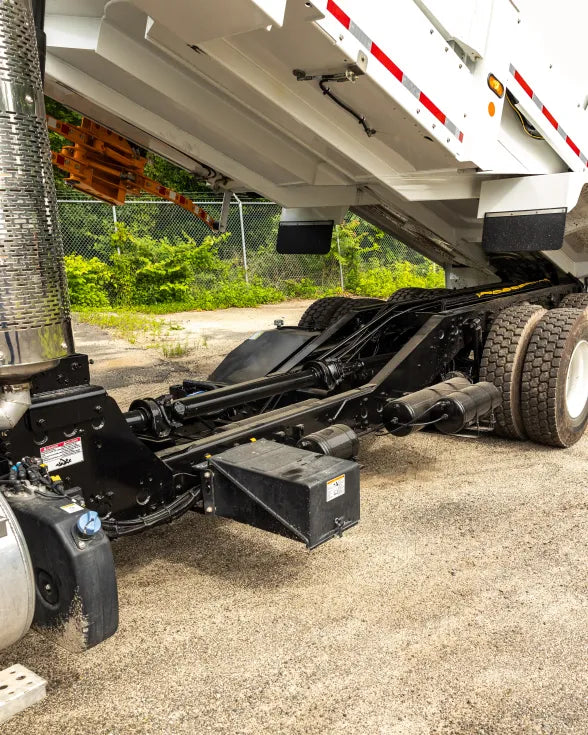

Underside of a raised refuse body showing the chassis
Labrie

Labrie Automizer Helping-Hand Side Loader

description specs

Overview

The Labrie Automizer Helping-Hand is an automated side loader built on a straight frame ASL body, with the Helping-Hand automated arm located inside the hopper. Body sizes run from 20 yd³ to 37 yd³, with tailgates from 0 yd³ to 6 yd³ depending on body capacity. The arm has a 120" reach and a 400 lbs lift capacity.

Key Features

  • Helping-Hand arm located inside the hopper, dumping directly into the packer area
  • Enclosed hopper
  • Curbside access door and low load sill for hand loading
  • Tapered body for improved compaction
  • Single piece body walls
  • Arm controls by proportional joystick, electric over hydraulic
  • One-man operation, with several driving configurations
  • Zinc-plated hydraulic tubing
  • Sump box with increased sump volume
  • Diagnostic tools as part of the Smart Collection Package

Options & Configurations

  • Stand-up drive position on one or both sides of the truck
  • Hopper roof
  • Labrie CNG systems with roof, tailgate and back of cab mounts, 50 to 100 DGE

Applications

Automated residential collection of refuse and recycling. Labrie also lists tip to dump collection for this model.

Related Parts & Accessories

Capacity

  • Body sizes: 20 yd³ to 37 yd³
  • Tailgate sizes: 0 yd³ to 6 yd³, based on body capacity

Body

  • Body floor: 0.157" AR450 175,000psi

Hopper

  • Hopper floor: 1/4" AR450 175,000psi
  • Hopper sides (lower): 1/4" AR450 175,000psi

Packer

  • Packer panel face plate: 1/4" 100QT 100,000psi
  • Packer width: 71"
  • Packer height: 16"
  • Packer stroke: 40"

Arm

  • Arm lift capacity: 400 lbs
  • Arm reach: 120"
  • Swing out: 30"
  • Arm controls: Proportional joystick, electric over hydraulic

Hydraulics

  • Pump make and model: Dual Vane
  • Pump capacity, body: 20 gpm @ 700 rpm
  • Pump capacity, arm: 16 gpm @ 700 rpm
  • Max. operating pressure: 2,250 psi
  • Oil reservoir: 94 gal

Cylinders

  • Body lifting cylinder (20 yd³ bodies): 4 stages 6-1/16" bore x 150" stroke
  • Body lifting cylinder (27 to 31 yd³ bodies): 4 stages 6-1/16" bore x 180" stroke
  • Packer cylinders: 4" bore x 2-1/2" rod x 40" stroke
  • Tailgate cylinders: 2-1/2" bore x 1-3/4" rod x 39" stroke
  • Arm extension 1st cylinder: 2" bore x 1-1/4" rod x 70" stroke
  • Arm extension 2nd cylinder: 2" bore x 1-1/4" rod x 36" stroke
  • Lifting cylinder: 3" bore x 1-1/2" rod x 16" stroke
  • Grabber cylinder: 1-1/2" bore x 1" rod x 6-1/4" stroke

Performance

  • Arm in (96" reach): 3.6 sec @ 700 rpm
  • Arm in (120" reach): 4.5 sec @ 700 rpm
  • Arm out (96" reach): 4.8 sec @ 700 rpm
  • Arm out (120" reach): 6.0 sec @ 700 rpm
  • Arm up: 2.5 to 3.0 sec @ 700 rpm
  • Arm down: 2.5 to 3.0 sec @ 700 rpm
  • Grabber open: 1.3 to 1.8 sec @ 700 rpm
  • Grabber close: 1.0 to 1.5 sec @ 700 rpm
  • Tailgate open: 21 sec @ 700 rpm
  • Tailgate close (with Safety Flow limiter): 26 sec @ 700 rpm
  • Body up (depending on body size): 30 to 40 sec @ 700 rpm
  • Body down (depending on body size): 15 to 25 sec @ 700 rpm
  • Crusher panel up: 5 sec @ 700 rpm
  • Crusher panel down: 4 sec @ 700 rpm

Body Dimensions

  • A. Overall length, tailgate closed, 20+0 body (yd³): 244 in.
  • A. Overall length, tailgate closed, 20+2 body (yd³): 250 in.
  • A. Overall length, tailgate closed, 20+4 body (yd³): 263 in.
  • A. Overall length, tailgate closed, 27+0 body (yd³): 284 in.
  • A. Overall length, tailgate closed, 27+2 body (yd³): 290 in.
  • A. Overall length, tailgate closed, 27+4 body (yd³): 303 in.
  • A. Overall length, tailgate closed, 27+6 body (yd³): 318 in.
  • A. Overall length, tailgate closed, 31+0 body (yd³): 314 in.
  • A. Overall length, tailgate closed, 31+2 body (yd³): 320 in.
  • A. Overall length, tailgate closed, 31+4 body (yd³): 333 in.
  • A. Overall length, tailgate closed, 31+6 body (yd³): 348 in.
  • Overall width, all body sizes: 102 in.
  • B. Overall height above frame, tailgate closed, all body sizes: 103 in.
  • C. Overall length, tailgate open, 20+0, 20+2 and 20+4 bodies (yd³): 294 in.
  • C. Overall length, tailgate open, 27+0, 27+2, 27+4 and 27+6 bodies (yd³): 334 in.
  • C. Overall length, tailgate open, 31+0, 31+2, 31+4 and 31+6 bodies (yd³): 364 in.
  • D. Overall height above frame, tailgate open, all body sizes: 197 in.
  • E. Overall length, dumping position, 20+0, 20+2 and 20+4 bodies (yd³): 408 in.
  • E. Overall length, dumping position, 27+0, 27+2, 27+4 and 27+6 bodies (yd³): 447 in.
  • E. Overall length, dumping position, 31+0, 31+2, 31+4 and 31+6 bodies (yd³): 474 in.
  • F. Overall height above frame, dumping position, 20+0, 20+2 and 20+4 bodies (yd³): 201 in.
  • F. Overall height above frame, dumping position, 27+0, 27+2, 27+4 and 27+6 bodies (yd³): 228 in.
  • F. Overall height above frame, dumping position, 31+0, 31+2, 31+4 and 31+6 bodies (yd³): 242 in.
  • G. Overall height above frame when dumping, all body sizes: 117 in.
  • H. Overall width, arm out, grabber closed, all body sizes: 243 in.
  • I. Overall width, arm in, grabber closed, all body sizes: 134 in.
  • J. Overall width, arm in, grabber open, all body sizes: 102 in.
  • K. Distance between bottom of grabber and chassis frame rail, all body sizes: 21/27 in.
