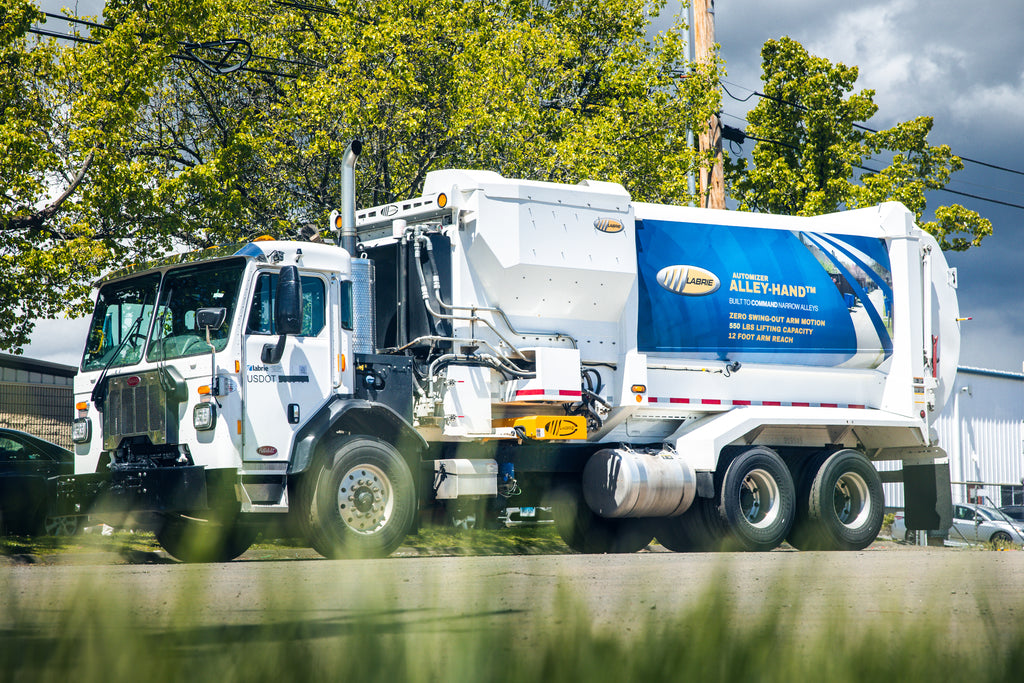

Labrie Automizer Alley-Hand side loader with yellow arm, front three quarter view

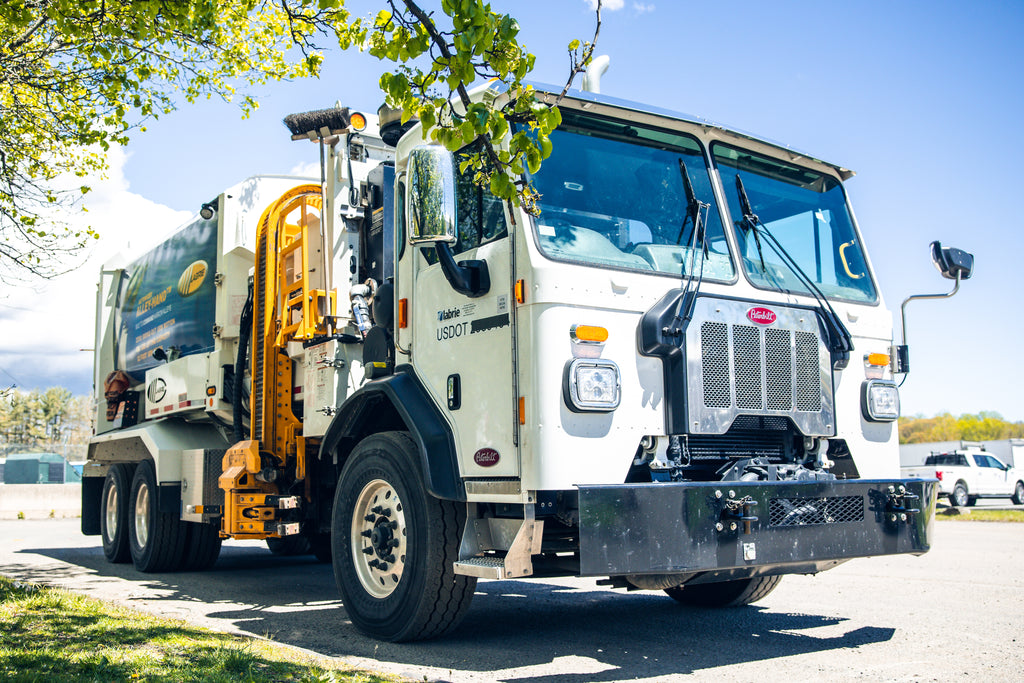

Labrie Automizer Alley-Hand side loader with yellow arm, front three quarter view
Labrie Automizer Alley-Hand side loader, front left three quarter view with blue model wrap

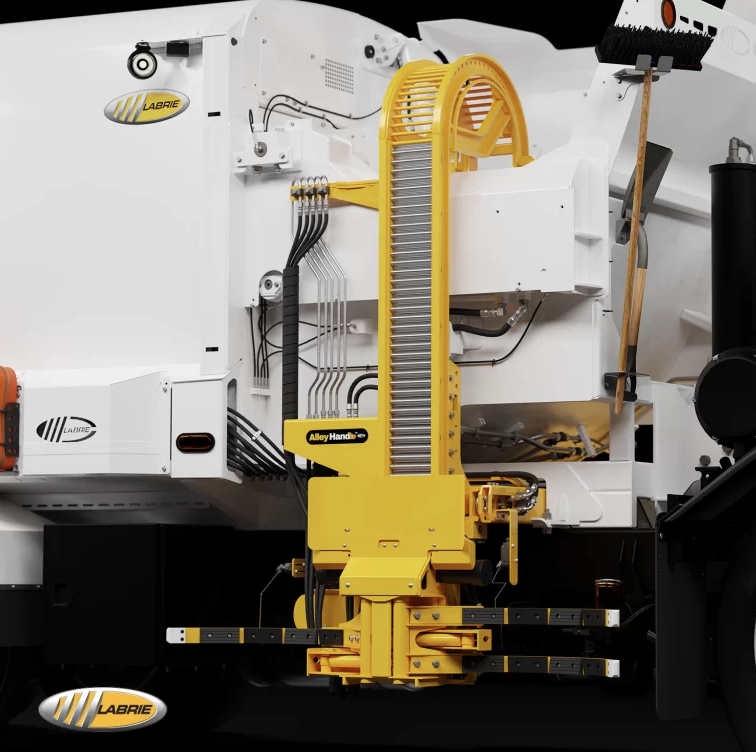

Labrie Automizer Alley-Hand arm, close view
Labrie

Labrie Automizer Alley-Hand Side Loader

description specs

Overview

The Labrie Automizer Alley-Hand is an automated side loader with a vertical lift arm and a 22-inch extension track. Tip-to-dump body sizes run from 15 yd³ to 37 yd³. Tailgates run from 0 yd³ to 6 yd³ depending on body capacity, and the hopper size is 6.5 yd³. A complete packer cycle takes 12 sec @ 1200 rpm without regeneration or 14 sec @ 700 rpm with regeneration.

Key Features

  • Vertical lift arm, 0" swing out
  • Arm lifting by rack and pinion, driven by two hydraulic motors
  • Nylon extension track; the gripper is in the down position when it travels
  • Proportional valves and proportional joystick arm controls, electric over hydraulic
  • In-line arm design with low mass in motion
  • Tapered body shape that aids compaction
  • Zinc-plated hydraulic tubing
  • Choice of hose and tubing routing on the left or right side of the body
  • Smart Collection Package with cameras and monitors, scales, diagnostic tools, safety interlocks, alerts and GPS tracking

Options & Configurations

  • Tip-to-dump or full-eject configuration
  • Full-eject system with a T-Track guide; one cylinder does the packing and the ejection
  • Labrie CNG systems with roof, tailgate and back of cab mounts, 50 to 100 DGE
  • Battery-electric chassis integration

Applications

Automated residential collection of refuse and recycling, in tip to dump or full eject configuration. Labrie also lists alleys and tight areas for this model.

Related Parts & Accessories

Body Specifications

  • Body sizes (tip to dump): 15 yd³ to 37 yd³
  • Tailgate sizes: 0 yd³ to 6 yd³, based on body capacity
  • Body floor: 0.157" AR450 175,000psi
  • Body roof: 10ga A1011 80,000psi
  • Tailgate: 12ga A1011 80,000psi

Hopper Specifications

  • Hopper size: 6.5 yd³
  • Hopper floor: 1/4" AR450 175,000psi
  • Hopper sides (lower): 1/4" AR450 175,000psi

Packer Specifications

  • Packer panel face plate: 1/4" 100QT 100,000psi
  • Packer width: 64-1/2"
  • Packer height: 24"
  • Packer stroke: 52"

Arm Specification (Alley-Hand)

  • Arm type (Alley-Hand arm): Vertical lift with zero kick-out
  • Swing out (Alley-Hand arm): 0"
  • Arm lift capacity (Alley-Hand arm): 550 lbs
  • Extension track (Alley-Hand arm): 22-inch, nylon
  • Arm lifting system (Alley-Hand arm): Rack and pinion, two hydraulic motors
  • Arm controls (Alley-Hand arm): Proportional joystick, electric over hydraulic

Hydraulic Specifications

  • Pump make and model: Dual Vane
  • Pump capacity, body: 20 gpm @ 700 rpm
  • Pump capacity, arm: 16 gpm @ 700 rpm
  • Max. operating pressure: 3,000 psi
  • Max. operating pressure, single axle chassis: 2,000 psi
  • Oil reservoir: 84 to 94 gal

Cylinder Specifications

  • Body lifting cylinder (15 yd³ bodies): 4 stages 6-1/16" bore x 132" stroke
  • Body lifting cylinder (20 yd³ bodies): 4 stages 6-1/16" bore x 150" stroke
  • Body lifting cylinder (27 to 31 yd³ bodies): 4 stages 6-1/16" bore x 180" stroke
  • Packer cylinders: 4" bore x 2-1/2" rod x 40" stroke
  • Tailgate cylinders: 2-1/2" bore x 1-3/4" rod x 39" stroke
  • Arm extension cylinders (Alley-Hand arm): 1-1/2" bore x 1" rod x 52-15/16" stroke
  • Grabber cylinders (Alley-Hand arm): 1-1/2" bore x 1" rod x 6-3/8" stroke

Performance Specifications

  • Arm up (Alley-Hand arm): 4.0 to 5.0 sec @ 700 rpm
  • Arm down (Alley-Hand arm): 3.5 to 4.5 sec @ 700 rpm
  • Grabber open: 1.5 to 2.0 sec @ 700 rpm
  • Grabber close: 1.5 to 2.0 sec @ 700 rpm
  • Packer complete cycle without regeneration: 12 sec @ 1200 rpm
  • Packer complete cycle with regeneration: 14 sec @ 700 rpm
  • Tailgate open: 21 sec @ 700 rpm
  • Tailgate close (with Safety Flow limiter): 26 sec @ 700 rpm
  • Body up (depending on body size): 30 to 40 sec @ 700 rpm
  • Body down (depending on body size): 15 to 25 sec @ 700 rpm

Body Dimensions

  • A. Overall length, tailgate closed, 15+0 body (yd³): 216 in.
  • A. Overall length, tailgate closed, 15+2 body (yd³): 222 in.
  • A. Overall length, tailgate closed, 15+4 body (yd³): 235 in.
  • A. Overall length, tailgate closed, 15+6 and 20+2 bodies (yd³): 250 in.
  • A. Overall length, tailgate closed, 20+0 body (yd³): 244 in.
  • A. Overall length, tailgate closed, 20+4 body (yd³): 263 in.
  • A. Overall length, tailgate closed, 20+6 body (yd³): 278 in.
  • A. Overall length, tailgate closed, 27+0 body (yd³): 284 in.
  • A. Overall length, tailgate closed, 27+2 body (yd³): 290 in.
  • A. Overall length, tailgate closed, 27+4 body (yd³): 303 in.
  • A. Overall length, tailgate closed, 27+6 body (yd³): 318 in.
  • A. Overall length, tailgate closed, 31+0 body (yd³): 314 in.
  • A. Overall length, tailgate closed, 31+2 body (yd³): 320 in.
  • A. Overall length, tailgate closed, 31+4 body (yd³): 333 in.
  • A. Overall length, tailgate closed, 31+6 body (yd³): 348 in.
  • Overall width, all body sizes: 102 in.
  • B. Overall height above frame, tailgate closed, all body sizes: 103 in.
  • C. Overall length, tailgate open, 15+0 to 15+6 bodies (yd³): 266 in.
  • C. Overall length, tailgate open, 20+0 to 20+6 bodies (yd³): 294 in.
  • C. Overall length, tailgate open, 27+0 to 27+6 bodies (yd³): 334 in.
  • C. Overall length, tailgate open, 31+0 to 31+6 bodies (yd³): 364 in.
  • D. Overall height above frame, tailgate open, all body sizes: 197 in.
  • E. Overall length, dumping position, 15+0 to 15+6 bodies (yd³): 380 in.
  • E. Overall length, dumping position, 20+0 to 20+6 bodies (yd³): 408 in.
  • E. Overall length, dumping position, 27+0 to 27+6 bodies (yd³): 447 in.
  • E. Overall length, dumping position, 31+0 to 31+6 bodies (yd³): 474 in.
  • F. Overall height above frame, dumping position, 15+0 to 15+6 bodies (yd³): 182 in.
  • F. Overall height above frame, dumping position, 20+0 to 20+6 bodies (yd³): 201 in.
  • F. Overall height above frame, dumping position, 27+0 to 27+6 bodies (yd³): 228 in.
  • F. Overall height above frame, dumping position, 31+0 to 31+6 bodies (yd³): 242 in.
  • G. Overall height above frame when dumping, all body sizes: 111 in.
  • H. Overall width, arm out, grabber closed, all body sizes: 238 in.
  • I. Overall width, arm in, grabber closed, all body sizes: 136 in.
  • J. Overall width, arm in, grabber open, all body sizes: 101 in.
  • K. Distance between bottom of grabber and chassis frame rail, all body sizes: 25 in.
