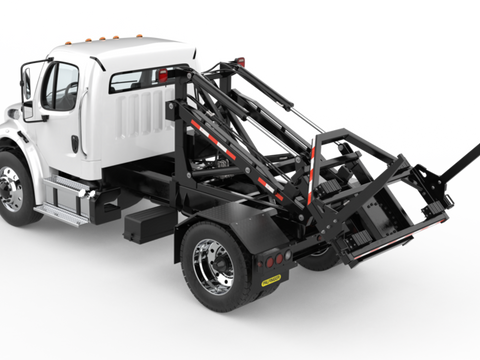

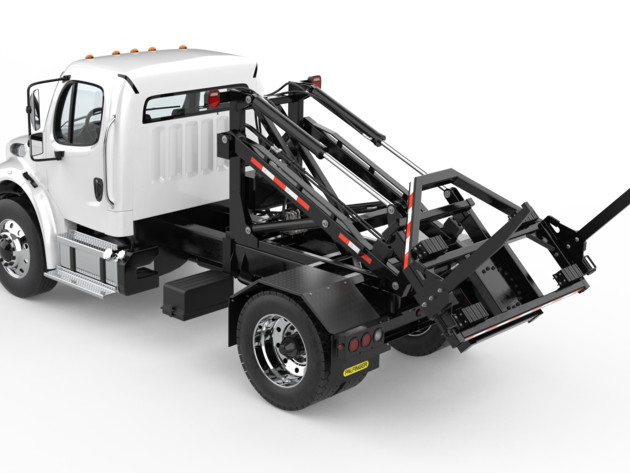

Palfinger container delivery unit with forks raised, rear three quarter view, driver side
Palfinger container delivery unit with forks raised, rear three quarter view, driver side
Palfinger

CC 80

description specs

Overview

The Palfinger CC 80 Basic Carrier is a container delivery unit with a lift capacity of 8,000 lb. Its weight is approx. 2,550 lb, and the recommended GVWR is 24,000 lb. It mounts on a single axle chassis.

Key Features

  • Raising frame design
  • Fork made as a single heat-treated piece of high-strength material
  • In-cab cable controls with two functions
  • Twin Lock, with a lock on each side
  • In-cab operation by cable or air controls
  • Twin lifting cylinders

Options & Configurations

  • Inside air controls
  • Joystick (air controls only)

Applications

  • Loading, unloading and transporting front-load containers
  • Loading a flat-deck trailer with several containers

Related Parts & Accessories

Specifications

  • Lift capacity: 8,000 lb
  • Weight (approx.): 2,550 lb
  • Forks (heat treated, bolt on): 1-1/2" x 48"
  • Control valve: 2 spools
  • Operating pressure: 2,500 PSI
  • Hydraulic tank: 10 gallon
  • Lift cylinders: 3-1/2"
  • Tilt cylinders: 4"
  • Recommended GVWR: 24,000 lb
  • Minimum chassis GVWR: 16,000 lb
  • Chassis axle configuration: Single
  • Note: Capacity is reduced for containers whose load center is beyond the midpoint of the forks

Features

  • Raising frame design
  • Fork made as a single heat-treated piece of high-strength material
  • In-cab cable controls with two functions
  • Twin Lock, with a lock on each side
  • In-cab operation by cable or air controls
  • Twin lifting cylinders

Options

  • Inside air controls
  • Joystick (air controls only)
