Overview

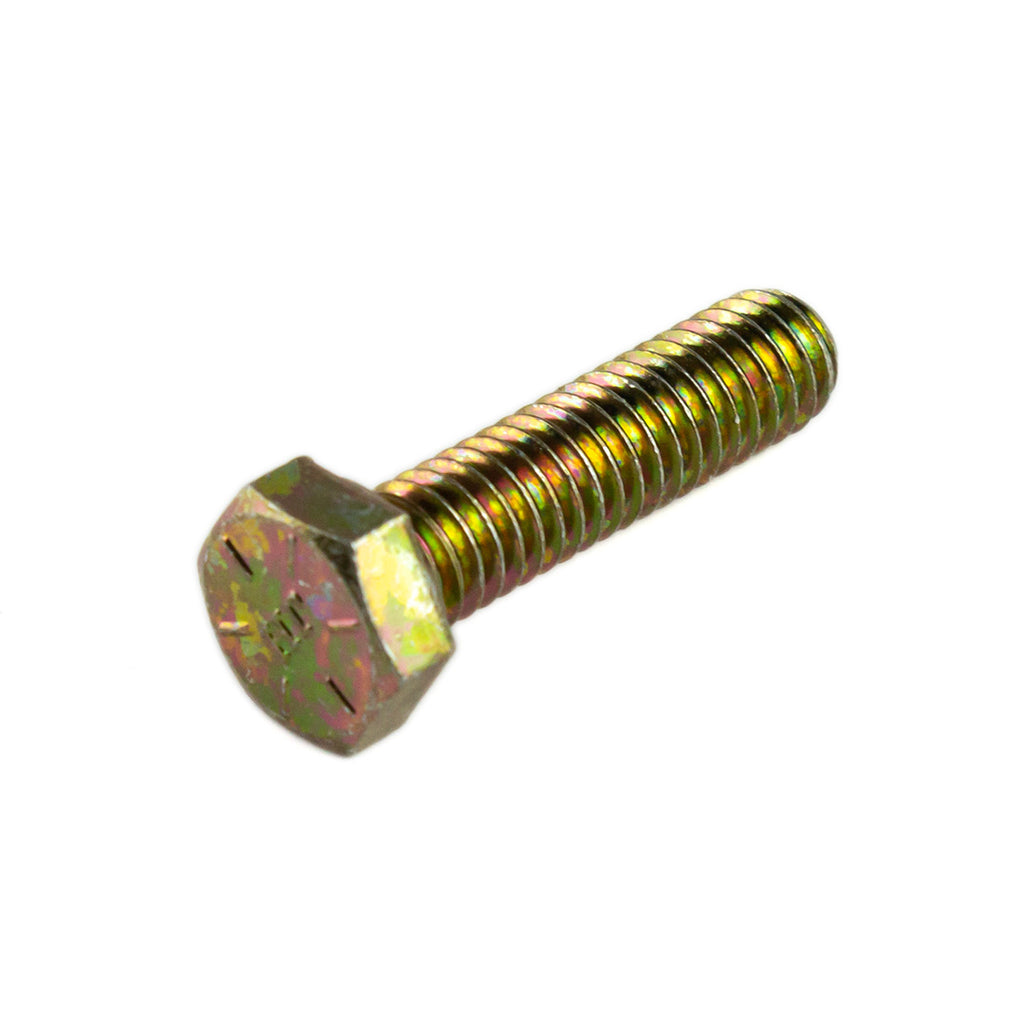

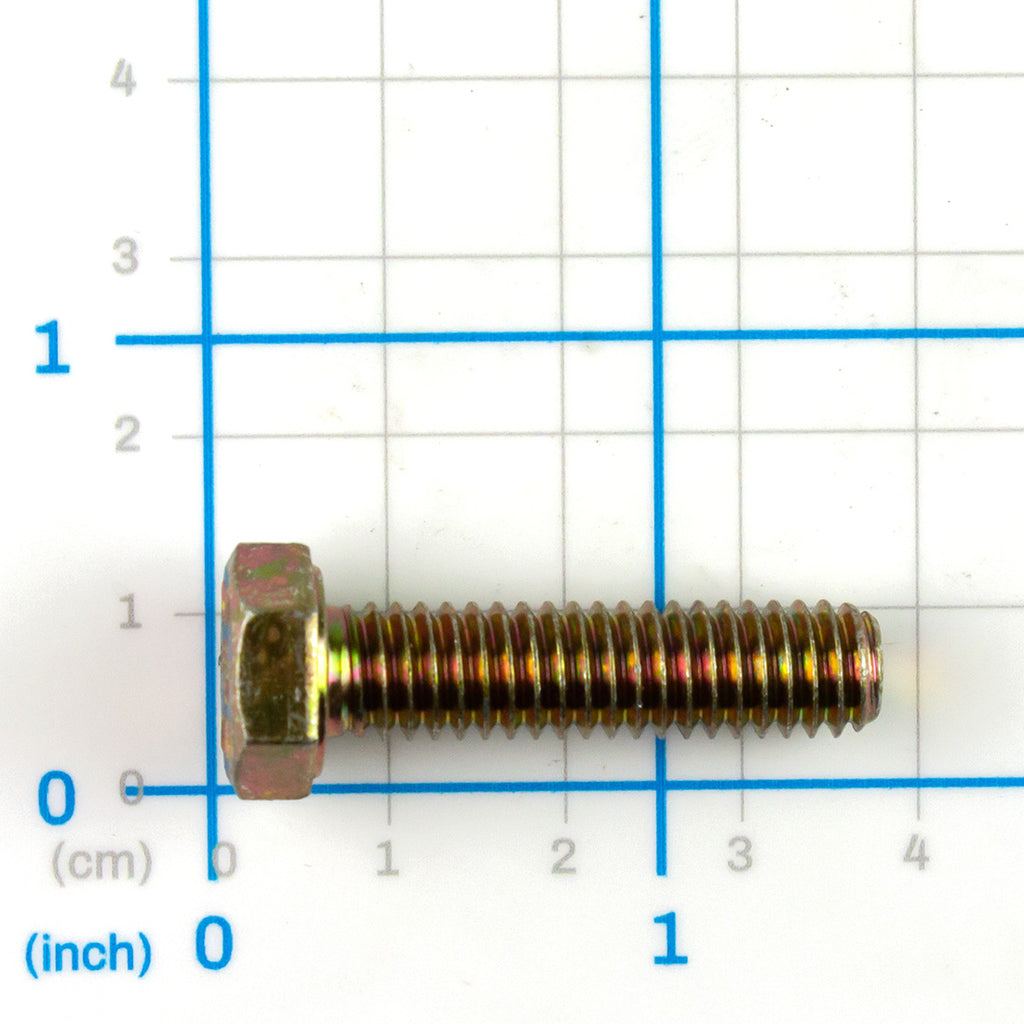

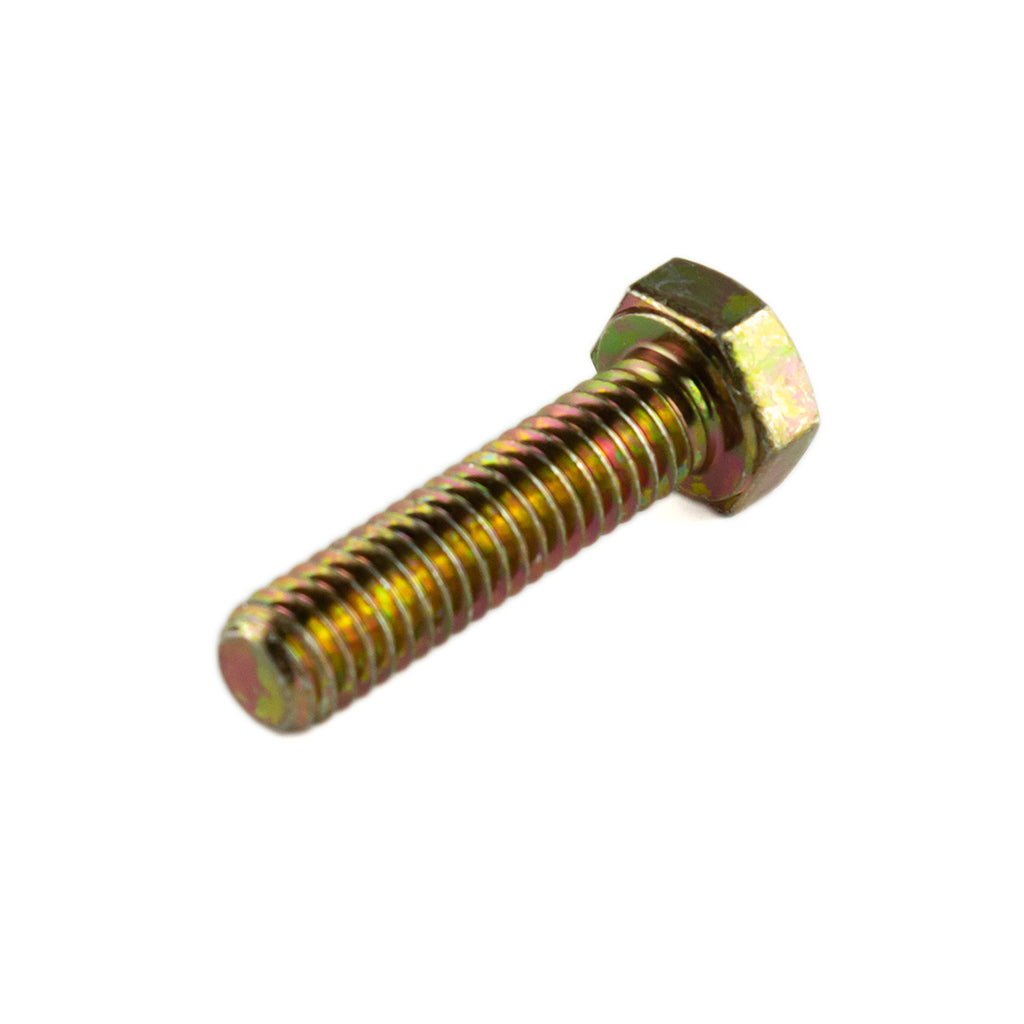

The 5/16"-18 x 1-1/4" Grade 8 Capscrew (QUB02901) is a genuine Labrie OEM part listed on the parts diagrams for Labrie Automizer side loaders, the Labrie heavy-duty right-hand arm and Leach 2R-III rear loaders. It appears on 18 parts diagrams, including Mast Assembly, Side Door and Oil Reservoir. Labrie's parts catalog lists it under Hardware. SECI is an authorized Labrie dealer serving New England from West Haven, CT and Walpole, MA.
Compatibility
Listed on these parts diagrams (item number and quantity per diagram):
Labrie heavy-duty right-hand arm
-
Mast Assembly - 162185 (Section 1, page 13): item 44, qty 2
-
Grabber Assembly - 189423 (Section 2): item 31, qty 4
-
Grabber Head - Hydraulics, Cylinders & Pins - 189421 (Section 2): item 22, qty 2
-
Grabber Head - Hydraulics, Cylinders & Pins - 189428 (Section 2): item 22, qty 2
-
Grabber Head - Hydraulics, Cylinders & Pins - 189440 (Section 2): item 22, qty 2
-
Grabber Head - Hydraulics, Cylinders & Pins - 189443 (Section 2): item 22, qty 2
-
Grabber Head - Hydraulics, Cylinders & Pins - 202281 (Section 2): item 22, qty 2
-
In/Out Rail Hydraulics - JIC (All Heavy Duty Right Hand Arms) (Section 3): item 6, qty 2
- Plus 1 more Labrie heavy-duty right-hand arm diagram listed under Fits Vehicles
Labrie Automizer side loader
-
Side Door - 870530 (TTD Units) (Section 1, page 73): item 7, qty 4
-
Side Door - 861239 (TTD Units) (Section 1, page 77): item 6, qty 8
-
Side Door - 835313 (TTD Units) (Section 1, page 79): item 7, qty 4
-
Side Door - 835316 (TTD Units) (Section 1, page 81): item 7, qty 4
-
Side Door - 868920 (TTD Units) (Section 1, page 83): item 12, qty 2
-
Side Door - 866149 (TTD Units) (Section 1, page 87): item 8, qty 4
-
Side Door - 866149 (TTD Units) (Section 1, page 87): item 10, qty 4
-
Chute, Single - 60/40 Split Body - 805245 (Section 1, page 213): item 16, qty 2
Leach 2R-III rear loader
Parts Support
Not sure this is the right part? Call SECI at (203) 933-9599 with your body model and serial number, or use the parts request form.
