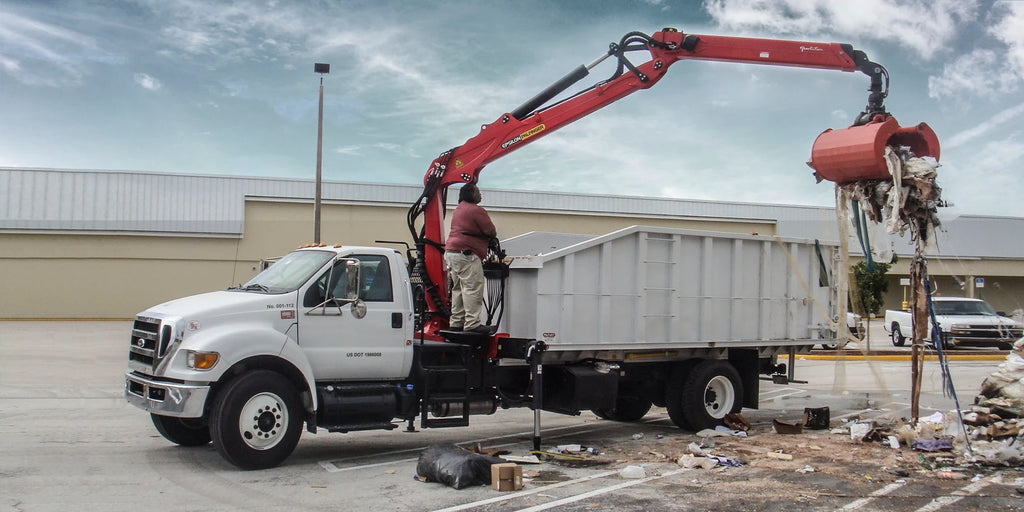

Palfinger Epsilon knuckle boom loader with clamshell bucket loading debris, front three quarter view, driver side
Palfinger Epsilon C70L boom tip and clamshell bucket
Palfinger

C70L

description specs

Overview

The Palfinger Epsilon C70L refuse loader is a compact L-type recycling loader crane in the L Crane line. Depending on the variant and equipment selected, max. outreach is 9.4 m and max. lifting moment is 67 kNm.

Key Features

  • Long main boom; outer boom cylinder mounted on top
  • Steel guard for the main lift cylinder
  • Double rack slewing system in a sealed oil bath
  • Stabilizer tilt: 0 to 180 degrees
  • H-frame with out/down stabilizers

Options & Configurations

  • Standard top seat
  • Remote Control (RCE)
  • Body sizes: 24 to 54 cubic yard capacity
  • 42" refuse grapple

Related Parts & Accessories

Specifications

  • Max. outreach, depending on the variant and equipment selected: 9.4 m
  • Max. lifting moment, depending on the variant and equipment selected: 67 kNm
  • Net load moment, 94 dm boom: 65 kNm
  • Net slewing torque, 94 dm boom: 18 kNm
  • Slewing angle, 94 dm boom: 425 °
  • Max. reach, 94 dm boom: 9.4 m
  • Operating pressure, 94 dm boom: 200 bar
  • Dead weight without joint/rotator, 94 dm boom, remote control (RCE): 1,760 kg
  • C70L77 extension type: SINGLE
  • C70L77 max. outreach (ft): 25
  • C70L77 slewing torque (ft. lbs.): 13,276
  • C70L77 slewing angle (degrees): 425

Features

  • Epscope and Epslink
  • Cathodic dip coating (CDC)
  • Long main boom; outer boom cylinder mounted on top
  • Steel guard for the main lift cylinder
  • Double rack slewing system in a sealed oil bath
  • Stabilizer tilt: 0 to 180 degrees
  • H-frame with out/down stabilizers

Options

  • Standard top seat
  • Remote Control (RCE)
  • Non CDL packages
  • Body sizes: 24 to 54 cubic yard capacity
  • Double-acting underbody scissor hoist
  • 42" refuse grapple
  • Operator pass-through platform behind the cab
