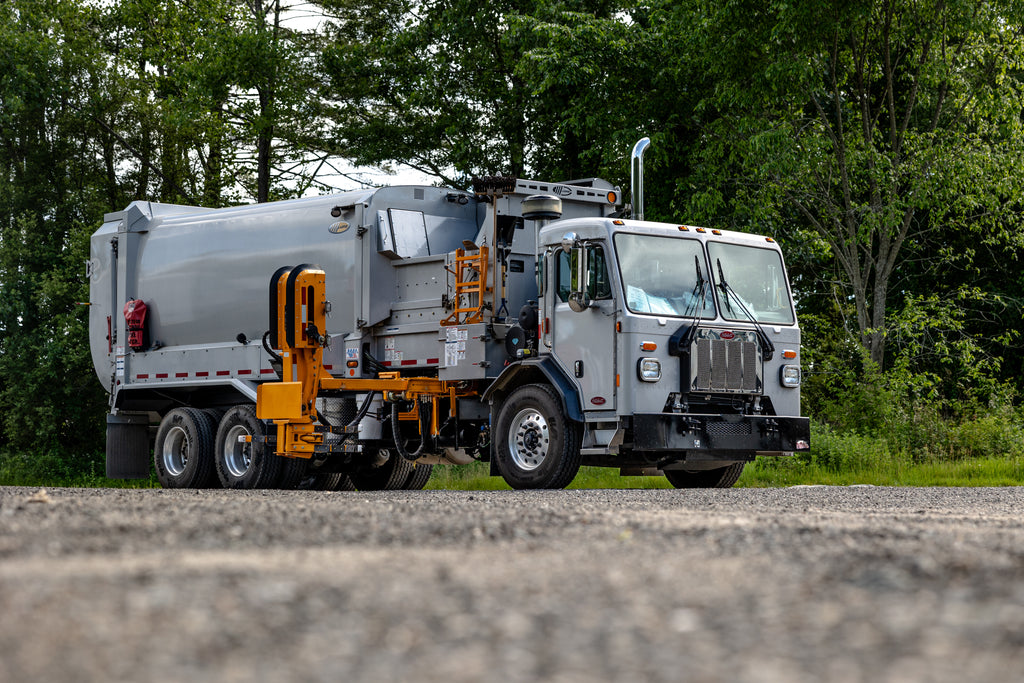

Labrie Automizer side loader with yellow Right-Hand arm, side view

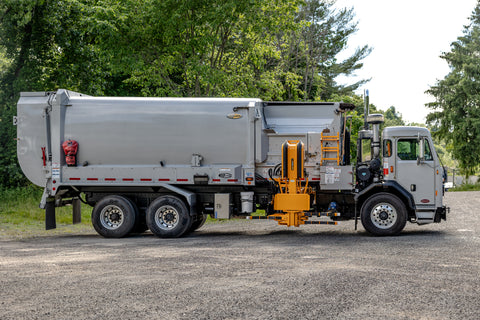

Labrie Automizer side loader with yellow Right-Hand arm, side view
Silver side loader refuse truck with yellow arm, front three quarter view
Labrie Automizer Right-Hand arm holding a cart on a residential street, rear view of the truck
Labrie Automizer Right-Hand sump box cleanout, shown open and closed
Labrie

Labrie Automizer Right-Hand Side Loader

description specs

Overview

The Labrie Automizer Right-Hand is an automated side loader built around the Right-Hand automated arm. Body sizes run from 15 yd³ to 37 yd³, with tailgates from 0 yd³ to 6 yd³ depending on body capacity, and the compaction ratio is 850 lbs/yd³, or 650 lbs/yd³ on a single axle chassis. The Right-Hand arm has a 144" reach and a 1,000 lbs lift capacity, and Labrie gives an average of 180 pick-ups per hour.

Key Features

  • Right-Hand arm with proportional joystick controls, electric over hydraulic
  • In-line arm design with low mass in motion
  • Tapered body shape that aids compaction
  • Body sides made from a single sheet of steel
  • Choice of hose and tubing routing on the left or right side of the body

Options & Configurations

  • Split body
  • Tip-to-dump or full eject configuration
  • Labrie CNG systems with roof, tailgate and back of cab mounts, 50 to 100 DGE
  • Battery-electric chassis integration

Applications

Automated residential collection of refuse and recycling, in tip to dump or full eject configuration.

Related Parts & Accessories

Body Specifications

  • Body sizes: 15 yd³ to 37 yd³
  • Tailgate sizes: 0 yd³ to 6 yd³, based on body capacity
  • Body floor: 0.157" AR450 175,000psi
  • Body sides (lower): 10ga A1011 80,000psi
  • Body roof: 10ga A1011 80,000psi
  • Tailgate: 12ga A1011 80,000psi

Hopper Specifications

  • Hopper floor: 1/4" AR450 175,000psi
  • Hopper sides (lower): 1/4" AR450 175,000psi

Packer Specifications

  • Compaction ratio: 850 lbs/yd³ (650 lbs/yd³ on single axle chassis)
  • Packer panel face plate: 1/4" 100QT 100,000psi
  • Packer width: 64-1/2"
  • Packer height: 24"
  • Packer stroke: 52"

Arm Specifications

  • Arm lift capacity (Right-Hand arm): 1,000 lbs
  • Arm reach (Right-Hand arm): 144"
  • Swing out (Right-Hand arm): 36"
  • Arm controls (Right-Hand arm): Proportional joystick, electric over hydraulic

Hydraulic Specifications

  • Pump make and model: Dual Vane
  • Pump capacity, body: 20 gpm @ 700 rpm
  • Pump capacity, arm: 16 gpm @ 700 rpm
  • Max. operating pressure: 3,000 psi
  • Max. operating pressure, single axle chassis: 2,000 psi
  • Oil reservoir: 84 to 94 gal

Cylinder Specifications

  • Body lifting cylinder (15 yd³ bodies): 4 stages 6-1/16" bore x 132" stroke
  • Body lifting cylinder (20 yd³ bodies): 4 stages 6-1/16" bore x 150" stroke
  • Body lifting cylinder (27 to 31 yd³ bodies): 4 stages 6-1/16" bore x 180" stroke
  • Packer cylinders: 4" bore x 2-1/2" rod x 40" stroke
  • Tailgate cylinders: 2-1/2" bore x 1-3/4" rod x 39" stroke
  • Arm extension cylinders (Right-Hand arm): 1-1/2" bore x 1" rod x 52-15/16" stroke
  • Lifting cylinder (Right-Hand arm): 3" bore x 1-1/2" rod x 16" stroke
  • Grabber cylinders (Right-Hand arm): 1-1/2" bore x 1" rod x 4-15/16" stroke

Performance Specifications

  • Pick-ups per hour: 180 on average
  • Arm in (Right-Hand arm, 96" reach): 2.0 sec @ 700 rpm
  • Arm in (Right-Hand arm, 144" reach): 3.0 sec @ 700 rpm
  • Arm out (Right-Hand arm, 96" reach): 2.2 sec @ 700 rpm
  • Arm out (Right-Hand arm, 144" reach): 3.3 sec @ 700 rpm
  • Arm up (Right-Hand arm): 3.0 to 3.6 sec @ 700 rpm
  • Arm down (Right-Hand arm): 2.5 to 3.0 sec @ 700 rpm
  • Grabber open (Right-Hand arm): 1.5 to 2.0 sec @ 700 rpm
  • Grabber close (Right-Hand arm): 1.5 to 2.0 sec @ 700 rpm
  • Packer complete cycle without regeneration: 12 sec @ 1200 rpm
  • Packer complete cycle with regeneration: 14 sec @ 700 rpm
  • Tailgate open: 21 sec @ 700 rpm
  • Tailgate close (with Safety Flow limiter): 26 sec @ 700 rpm
  • Body up (depending on body size): 30 to 40 sec @ 700 rpm
  • Body down (depending on body size): 15 to 25 sec @ 700 rpm

Body Dimensions

  • A. Overall length, tailgate closed, 15+0 body (yd³): 216 in.
  • A. Overall length, tailgate closed, 15+2 body (yd³): 222 in.
  • A. Overall length, tailgate closed, 15+4 body (yd³): 235 in.
  • A. Overall length, tailgate closed, 15+6 and 20+2 bodies (yd³): 250 in.
  • A. Overall length, tailgate closed, 20+0 body (yd³): 244 in.
  • A. Overall length, tailgate closed, 20+4 body (yd³): 263 in.
  • A. Overall length, tailgate closed, 20+6 body (yd³): 278 in.
  • A. Overall length, tailgate closed, 27+0 body (yd³): 284 in.
  • A. Overall length, tailgate closed, 27+2 body (yd³): 290 in.
  • A. Overall length, tailgate closed, 27+4 body (yd³): 303 in.
  • A. Overall length, tailgate closed, 27+6 body (yd³): 318 in.
  • A. Overall length, tailgate closed, 31+0 body (yd³): 314 in.
  • A. Overall length, tailgate closed, 31+2 body (yd³): 320 in.
  • A. Overall length, tailgate closed, 31+4 body (yd³): 333 in.
  • A. Overall length, tailgate closed, 31+6 body (yd³): 348 in.
  • Overall width, all body sizes: 102 in.
  • B. Overall height above frame, tailgate closed, all body sizes: 103 in.
  • C. Overall length, tailgate open, 15+0 to 15+6 bodies (yd³): 266 in.
  • C. Overall length, tailgate open, 20+0 to 20+6 bodies (yd³): 294 in.
  • C. Overall length, tailgate open, 27+0 to 27+6 bodies (yd³): 334 in.
  • C. Overall length, tailgate open, 31+0 to 31+6 bodies (yd³): 364 in.
  • D. Overall height above frame, tailgate open, all body sizes: 197 in.
  • E. Overall length, dumping position, 15+0 to 15+6 bodies (yd³): 380 in.
  • E. Overall length, dumping position, 20+0 to 20+6 bodies (yd³): 408 in.
  • E. Overall length, dumping position, 27+0 to 27+6 bodies (yd³): 447 in.
  • E. Overall length, dumping position, 31+0 to 31+6 bodies (yd³): 474 in.
  • F. Overall height above frame, dumping position, 15+0 to 15+6 bodies (yd³): 182 in.
  • F. Overall height above frame, dumping position, 20+0 to 20+6 bodies (yd³): 201 in.
  • F. Overall height above frame, dumping position, 27+0 to 27+6 bodies (yd³): 228 in.
  • F. Overall height above frame, dumping position, 31+0 to 31+6 bodies (yd³): 242 in.
  • G. Overall height above frame when dumping, all body sizes: 113 in.
  • H. Overall width, arm out, grabber closed, all body sizes: 243 in.
  • I. Overall width, arm in, grabber closed, all body sizes: 137 in.
  • J. Overall width, arm in, grabber open, all body sizes: 101 in.
  • K. Distance between bottom of grabber and chassis frame rail, all body sizes: 25 in.
