Overview

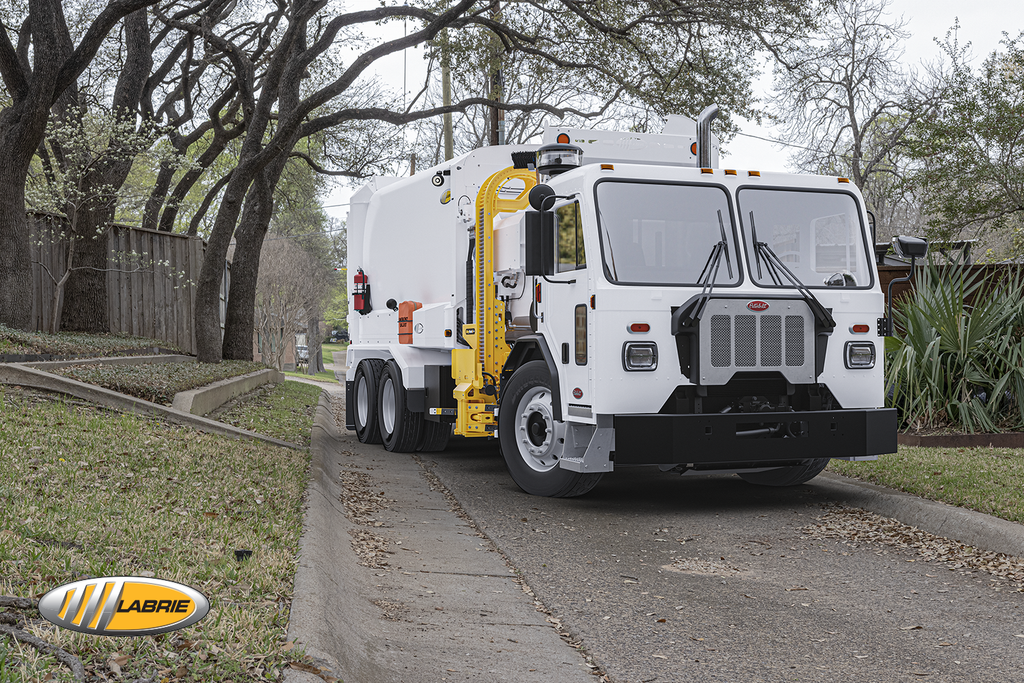

The Labrie Automizer Pendulum Packer is an automated side loader that compacts with a pendulum packer in a sealed, liquid tight hopper. Body sizes run from 15 yd³ to 37 yd³, with tailgates from 0 yd³ to 6 yd³ depending on body size. The hopper size is 3.3 yd³, the compaction ratio is 700 lbs/yd³ and a complete packer cycle takes 22 sec @ 700 rpm.

Key Features

  • Patented pendulum packer with no wear tracks or follower panel
  • Self-cleaning packer that needs no daily cleanout behind it, with no cleanout doors
  • Liquid tight hopper and high tailgate seal
  • Packer cylinders and hydraulics located outside the hopper
  • Tapered body shape that aids compaction
  • In-line arm design with low mass in motion
  • Access panels on the rub rails

Options & Configurations

  • Choice of the Right-Hand or Alley-Hand automated arm
  • Optional crusher panel in the hopper

Applications

Automated residential collection of solid waste, organics and recycling, with tip to dump unloading.

Related Parts & Accessories

Body Specifications

  • Body sizes: 15 yd³ to 37 yd³
  • Tailgate sizes: 0 yd³ to 6 yd³, depending on body size
  • Body floor: 0.157" AR450 175,000psi
  • Body sides (lower): 10ga A1011 80,000psi
  • Body roof: 10ga A1011 80,000psi
  • Tailgate: 12ga A1011 80,000psi

Hopper Specifications

  • Hopper size: 3.3 yd³

Packer Specifications

  • Compaction ratio: 700 lbs/yd³
  • Packer panel face plate: 5/16" AR400, 140,000psi
  • Packer width: 62 5/8"
  • Packer height: 13.5"
  • Packer stroke: 47.5"

Hydraulic Specifications

  • Pump make and model: Dual Vane
  • Pump capacity, body: 20.4 gpm @ 700 rpm
  • Pump capacity, arm: 16.3 gpm @ 700 rpm
  • Oil reservoir: 84 to 94 gal

Cylinder Specifications

  • Body lifting cylinder (15 yd³ bodies): 4 stages 6-1/16" bore x 132" stroke
  • Body lifting cylinder (20 yd³ bodies): 4 stages 6-1/16" bore x 150" stroke
  • Body lifting cylinder (27 to 31 yd³ bodies): 4 stages 6-1/16" bore x 180" stroke
  • Packer cylinders: 5" bore x 3-1/2" rod x 18-1/2" stroke
  • Tailgate cylinders: 2-1/2" bore x 1-3/4" rod x 39" stroke

Performance Specifications

  • Packer complete cycle: 22 sec @ 700 rpm
  • Tailgate open: 21 sec @ 700 rpm
  • Tailgate close (with Safety Flow limiter): 26 sec @ 700 rpm
  • Body up (depending on body size): 30 to 40 sec @ 700 rpm
  • Body down (depending on body size): 15 to 25 sec @ 700 rpm
  • Crusher panel up (optional crusher panel): 5 sec @ 700 rpm
  • Crusher panel down (optional crusher panel): 4 sec @ 700 rpm

Body Dimensions

  • A. Overall length, tailgate closed, 15+0 body (yd³): 203 in.
  • A. Overall length, tailgate closed, 15+2 body (yd³): 209 in.
  • A. Overall length, tailgate closed, 15+4 body (yd³): 222 in.
  • A. Overall length, tailgate closed, 15+6 and 20+2 bodies (yd³): 237 in.
  • A. Overall length, tailgate closed, 20+0 body (yd³): 231 in.
  • A. Overall length, tailgate closed, 20+4 body (yd³): 250 in.
  • A. Overall length, tailgate closed, 20+6 body (yd³): 265 in.
  • A. Overall length, tailgate closed, 27+0 body (yd³): 271 in.
  • A. Overall length, tailgate closed, 27+2 body (yd³): 277 in.
  • A. Overall length, tailgate closed, 27+4 body (yd³): 290 in.
  • A. Overall length, tailgate closed, 27+6 body (yd³): 305 in.
  • A. Overall length, tailgate closed, 31+0 body (yd³): 301 in.
  • A. Overall length, tailgate closed, 31+2 body (yd³): 307 in.
  • A. Overall length, tailgate closed, 31+4 body (yd³): 320 in.
  • A. Overall length, tailgate closed, 31+6 body (yd³): 335 in.
  • Overall width, all body sizes: 102 in.
  • B. Overall height above frame, tailgate closed, all body sizes: 103 in.
  • C. Overall length, tailgate open, 15+0 to 15+6 bodies (yd³): 253 in.
  • C. Overall length, tailgate open, 20+0 to 20+6 bodies (yd³): 281 in.
  • C. Overall length, tailgate open, 27+0 to 27+6 bodies (yd³): 318 in.
  • C. Overall length, tailgate open, 31+0 to 31+6 bodies (yd³): 351 in.
  • D. Overall height above frame, tailgate open, all body sizes: 197 in.
  • E. Overall length, dumping position, 15+0 to 15+6 bodies (yd³): 362 in.
  • E. Overall length, dumping position, 20+0 to 20+6 bodies (yd³): 390 in.
  • E. Overall length, dumping position, 27+0 to 27+6 bodies (yd³): 429 in.
  • E. Overall length, dumping position, 31+0 to 31+6 bodies (yd³): 456 in.
  • F. Overall height above frame, dumping position, 15+0 to 15+6 bodies (yd³): 183 in.
  • F. Overall height above frame, dumping position, 20+0 to 20+6 bodies (yd³): 202 in.
  • F. Overall height above frame, dumping position, 27+0 to 27+6 bodies (yd³): 229 in.
  • F. Overall height above frame, dumping position, 31+0 to 31+6 bodies (yd³): 243 in.
  • G. Overall height above frame when dumping, all body sizes: 111 in.
