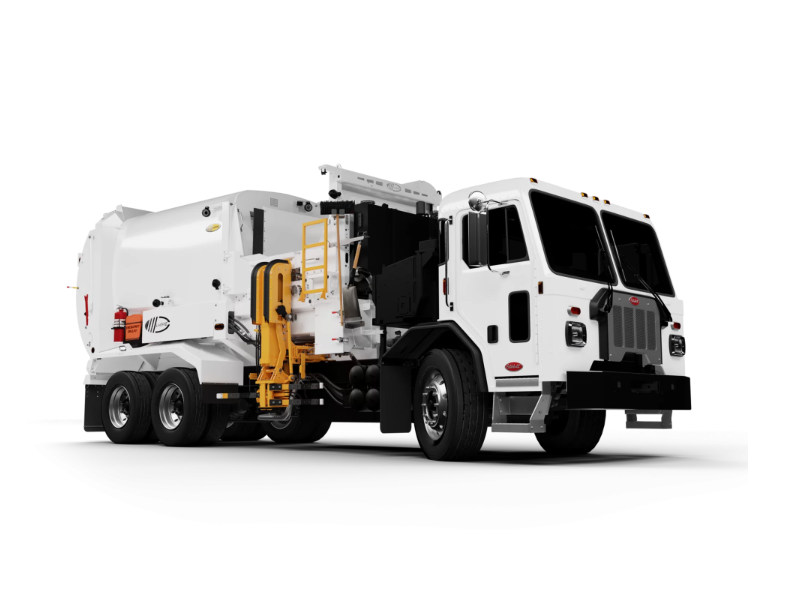

Labrie Automizer Full-Eject side loader on a white background
Labrie Automizer Full-Eject side loader on a white background
Labrie

Labrie Automizer Full-Eject Side Loader

description specs

Overview

The Labrie Automizer Full-Eject is an automated side loader that packs and fully ejects the load with the same cylinder. It comes in 19 yd³ to 32 yd³ body sizes, with tailgates from 0 yd³ to 6 yd³ depending on body capacity, a 6.5 yd³ hopper and a compaction ratio of 850 lbs/yd³. With the Right-Hand arm, arm reach is 144" and arm lift capacity is 1,000 lbs.

Key Features

  • One double-acting telescopic cylinder for both packing and ejection
  • Packer guided by a T-Track guide system
  • Body sides made from a single sheet of steel, with no reinforcement posts
  • Tapered body shape that aids compaction
  • Sump box with extra liquid capacity that keeps leachate away from the packer cylinders

Options & Configurations

  • Automated arm: Right-Hand or Alley-Hand
  • Teeth on the breaker bar
  • Labrie's own CNG system
  • Battery-electric chassis integration

Applications

Automated residential collection of refuse and recycling, with full ejection of the load.

Related Parts & Accessories

Body Specifications

  • Body sizes: 19 yd³ to 32 yd³
  • Tailgate sizes: 0 yd³ to 6 yd³, based on body capacity
  • Body trough: 3/16" AR450 175,000psi
  • Body trough wear plates: 1/4" AR500 190,000psi
  • Body floor wear plates: 1/4" AR500 190,000psi
  • Body sides (lower): 10ga A1011 80,000psi
  • Body roof: 10ga A1011 80,000psi
  • Tailgate: 12ga A1011 80,000psi

Hopper Specifications

  • Hopper size: 6.5 yd³
  • Hopper trough: 3/16" AR450 175,000psi
  • Hopper trough wear plates: 1/4" AR500 190,000psi
  • Hopper floor wear plates: 1/4" AR500 190,000psi

Packer Specifications

  • Compaction ratio: 850 lbs/yd³
  • Packer panel face plate: 1/4" 100QT 100,000psi
  • Packer width: 63"
  • Packer height: 24"
  • Packer stroke: 52"

Right-Hand Arm Specifications

  • Arm lift capacity (Right-Hand arm): 1,000 lbs
  • Arm reach (Right-Hand arm): 144"
  • Swing out (Right-Hand arm): 36"

Hydraulic Specifications

  • Pump make and model: Dual Vane
  • Pump capacity, body: 24.5 gpm @ 700 rpm
  • Pump capacity, arm: 16.3 gpm @ 700 rpm
  • Max. operating pressure: 2,500 psi
  • Oil reservoir: 84 gal

Performance Specifications

  • Packer complete cycle: 16.5 sec @ 1500 rpm
  • Tailgate open: 21 sec @ 700 rpm
  • Tailgate close: 26 sec @ 700 rpm

Body Dimensions

  • A. Overall length, tailgate closed, 19+0 body (yd³): 254 in.
  • A. Overall length, tailgate closed, 19+2 body (yd³): 260 in.
  • A. Overall length, tailgate closed, 19+4 body (yd³): 273 in.
  • A. Overall length, tailgate closed, 19+6 body (yd³): 288 in.
  • A. Overall length, tailgate closed, 26+0 body (yd³): 294 in.
  • A. Overall length, tailgate closed, 26+2 body (yd³): 300 in.
  • A. Overall length, tailgate closed, 26+4 body (yd³): 313 in.
  • A. Overall length, tailgate closed, 26+6 body (yd³): 328 in.
  • Overall width, all body sizes: 102 in.
  • B. Overall height above frame, tailgate closed, all body sizes: 106 in.
  • C. Overall length, tailgate opened, 19+0 to 19+6 bodies (yd³): 304 in.
  • C. Overall length, tailgate opened, 26+0 to 26+6 bodies (yd³): 344 in.
  • D. Overall height above frame, tailgate opened, all body sizes: 199 in.
  • E. Overall height above frame when dumping, all body sizes: 113 in.
