Pipe Range: 4" to 6"+ | Hose Size: 1/2" | Tier Two Fluid Mechanics
The KEG Aqua Power Mini is a small controlled rotation nozzle that cuts through grease and cleans 4" to 6" lines on 1/2" hose. It cuts with water rather than chain and also handles small roots and pipe wall scouring.

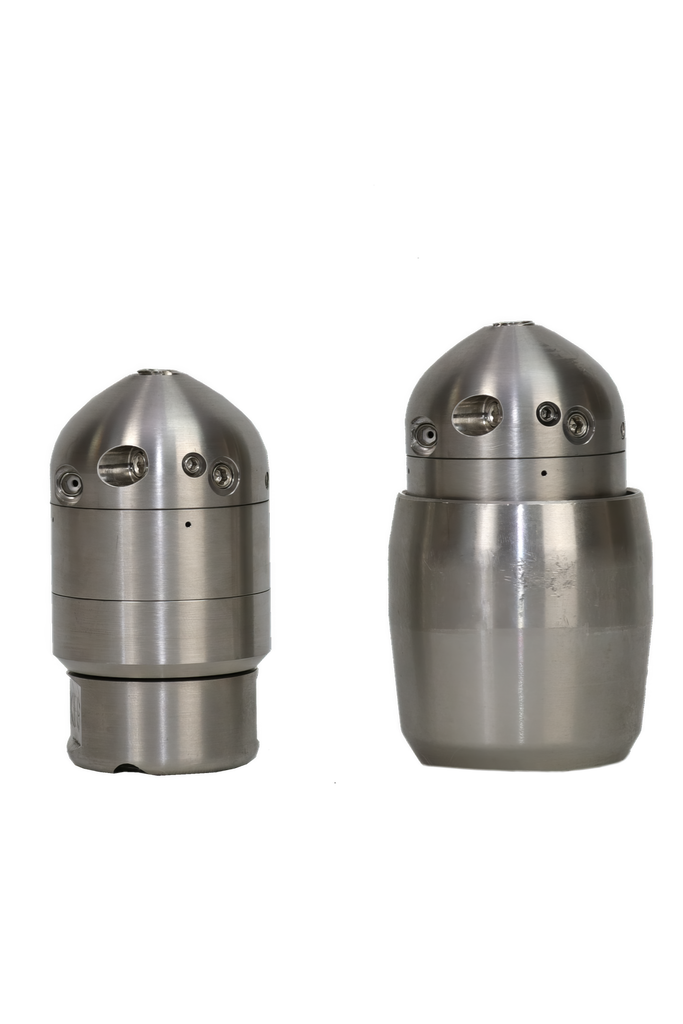

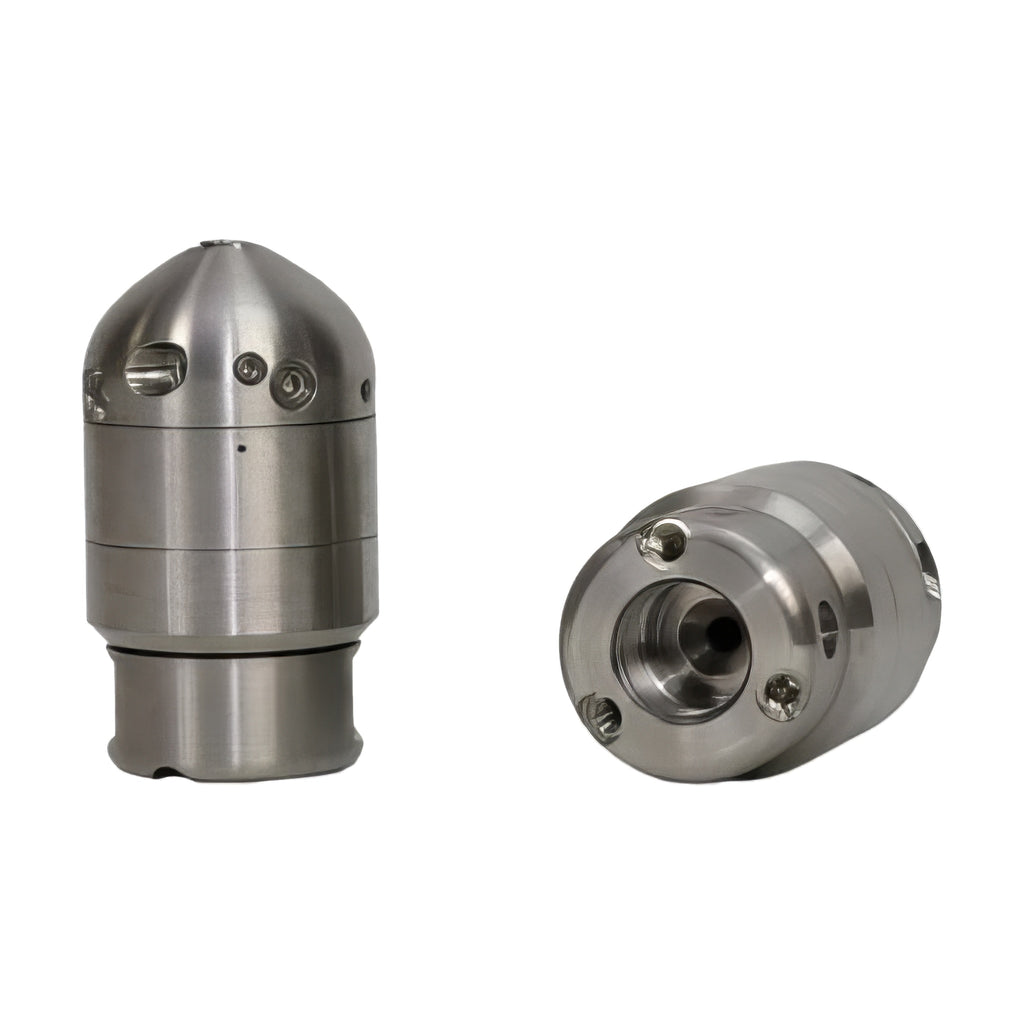

Four rotating jets in a cross configuration set the rotation speed, and the front orifice acts as a pressure relief valve. The wear-resistant stainless steel body carries 7 replaceable titanium ceramic M6 inserts (3 rear, 4 front). A Mini sleeve is included; it lifts the rotating body off the pipe, which helps in service laterals and extends nozzle life.
Advantages
- Controlled rotational speed from four rotating jets
- Individual jets for cleaning, propulsion and rotation
- Cuts with water rather than chain
- Front orifice works as a pressure relief valve
- Mini sleeve included to lift the rotating body off the pipe
- Replaceable titanium ceramic inserts
Applications
- Grease removal in sanitary lines
- Small root removal
- Scouring pipe walls
- Service laterals
Sizes and KEG Part Numbers
| Size |
KEG Part No. |
Inserts |
Insert Size |
Weight (lb) |
Dimensions |
Pipe Range |
| 1/2" |
100270 |
3 rear, 4 front |
M6 |
4.5 |
3 1/4" x 1 7/8" |
4" to 6" |
Choosing the Right Version
- Offered with titanium ceramic inserts only.
- KEG formerly sold this nozzle as the R2D2-1.
- Centering skids and other accessories are sold separately.
How to Order Online
Before Add to Cart unlocks, enter your jetter's flow in gallons per minute (GPM), its operating pressure (PSI) and the length of your jet hose in feet. SECI uses these numbers to order the correct nozzle from KEG. KEG list pricing includes the nozzle, its inserts and the drill point where the nozzle has one.
0010 0270, 0010 0270-C, 100270, 100270-C
