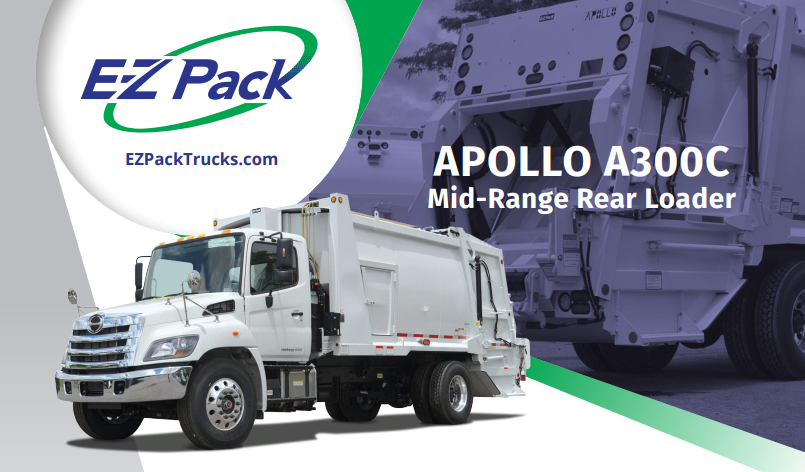

Apollo A300C

Specifications

• Capacity, A300C-18: 18 yds.³ (13.8 m³)
• Capacity, A300C-20: 20 yds.³ (15.3 m³)
• Cab to trunnion (CT), A300C-20 (base chart): 126" to 132" (3200 to 3353 mm)
• Cab to axle, A300C-16 (base chart): 105" to 111" (2667 to 2820 mm)
• Cab to axle, A300C-18 (base chart): 120" to 126" (3048 to 3200 mm)
• Cab to axle, A300C-20 (base chart): 138" to 144" (3505 to 3658 mm)
• Deck length / clear platform, A300C-18 (base chart): 155" (3937 mm)
• Deck length / clear platform, A300C-20 (base chart): 170" (4318 mm)
• Length including tailgate, A300C-16 (base chart): 218" (5537 mm)
• Length including tailgate, A300C-20 (base chart): 238" (6045 mm)
• Length tailgate raised, A300C-16 (base chart): 247" (6274 mm)
• Length tailgate raised, A300C-18 (base chart): 262" (6655 mm)
• Length tailgate raised, A300C-20 (base chart): 277" (7036 mm)
• Height tailgate raised: 156" (3962 mm)
• Height above chassis frame: 90.25" (2292 mm)
• Inside width (body): 91" (2311 mm)
• Loading height below frame: Up to 5.5" (140 mm) below chassis frame
• Loading opening: 80" (2032 mm) x 58" (1473 mm) high
• Outside width: 96" (2438 mm)
• Weight, A300C-16: 9,350 lbs. (4241 kg)
• Weight, A300C-18: 10,050 lbs. (4559 kg)
• Weight, A300C-20: 10,800 lbs. (4899 kg)
• Chassis specifications: Intended as general guidelines only
• Chassis selection: Should be made on an analysis of the weight distribution for the particular chassis/body combination including optional equipment and anticipated payloads
• PTO requirements: 39 HP @ 1,200 RPM (Torque Rating 212 ft. lbs.) Minimum
• Chassis: Requires variable speed governor with body-builder connection for engine remote throttle, programmed and preset to approximately 1,400 RPM
• Chassis lighting: Must be set up and programmed for the heavy-duty package and duplicate independent stop and turn signals

Chart Note

• Rows marked "base chart" show the value printed in E-Z Pack's brochure chart. The chart's notes for other fuel systems are not shown.

Construction and Operational Details

• Body floor: 7 ga. (4.55 mm) 50,000 PSI
• Body sides: 7 ga. (4.55 mm) 100,000 PSI
• Body roof: 10 ga. (3.42 mm) 50,000 PSI
• Ejector panel: 7 ga. (4.55 mm) 50,000 PSI
• Hopper floor: 1/4" Plate (6.35 mm) 155,000 min. 400 BHN
• Hopper sides (lower): 1/4" (6.35 mm) 100,000 PSI
• Hopper sides (upper): 7 ga. (4.55 mm) 50,000 PSI
• Packing panel: 7 ga. (4.55 mm) 50,000 PSI

Hydraulic System

• Sweep cylinders (2) with induction hardened rods and steel rod wipers: 4" (102 mm) (D.A.)
• Tailgate cylinders (2): 3" (76 mm) (D.A.)
• Ejector cylinder (1), 18 Yd.: 5-1/2" (140 mm) 2-Stage (D.A.)
• Ejector cylinder (1), 20 Yd.: 5-1/2" (140 mm) 2-Stage (D.A.)
• Hydraulic oil tank: 37 Gallons (140 Liters)
• Hydraulic pump: 27 GPM @ 1,200 RPM (102 Liter/Min.)
• Hydraulic filters: Suction: 100 Mesh / Return: 3 Micron
• System operating pressure: 2,500 PSI

Operational Features

• Cycle time: 26 seconds, reload @ 9 seconds
• Packer panel: Curved, one-piece construction
• Ejector panel: Travels in steel guide shoes, floor-level track
• Packing cylinders: Positioned away from refuse
• Ejector cylinder: Double-acting, telescopic

Standard Features

• Tailgate props
• Back-up alarm
• Body lifting eyes
• High mount light package
• ICC lights and reflectors meet DOT requirements
• Non-skid riding steps at rear corners of tailgate
• Streetside and curbside buzzers
• Automatic latch-unlatch tailgate

Optional Equipment

• Air Shift or Hot Shift PTOs
• Streetside Access Door
• Front Mount Pump
• Dual Hopper Flood Lights
• Rear Body Side Liner
• 10,000 lb. (4536 kg) Overhead Winch*
• 14,000 lb. (6350 kg) Reeving Cylinder Winch*
• System Pressure Gauge
• 1 to 3 Yard (.76 to 2.3 m³) Hydraulic Container Attachment

Optional Equipment Note

• * Optional Container Dumping Devices Handle Containers up to 10 Cubic Yards (7.6 m³)
