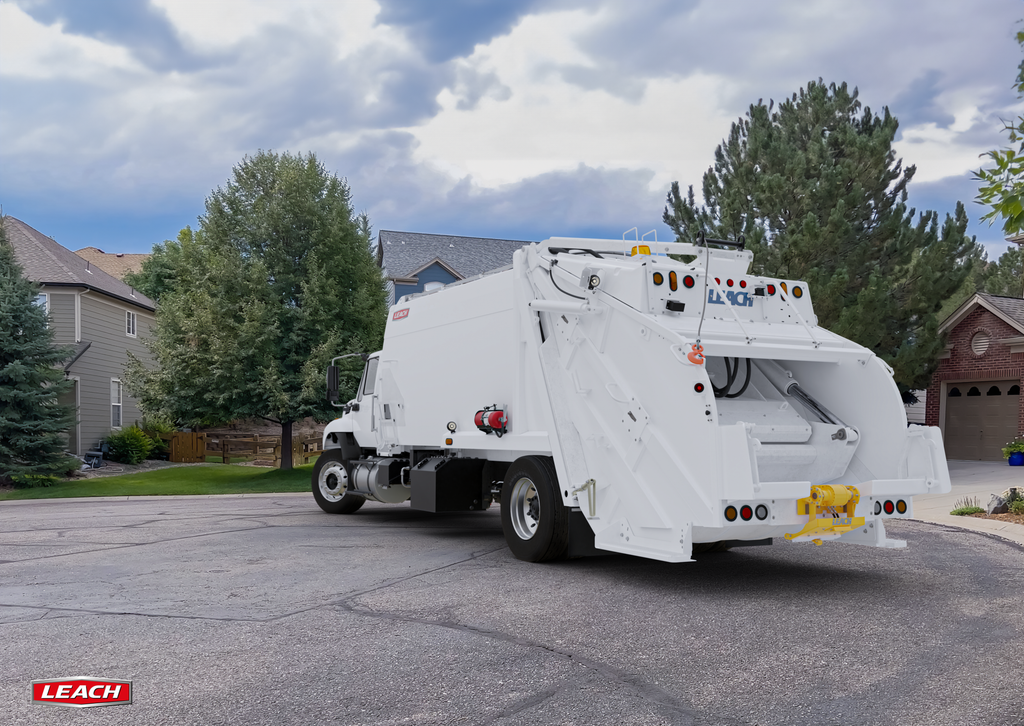

Leach rear loader on a residential street, rear three quarter view, driver side
Leach rear loader on a residential street, rear three quarter view, driver side

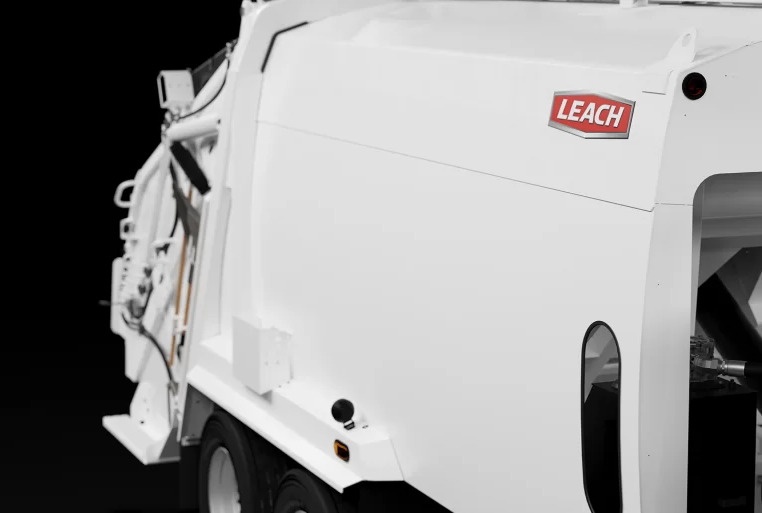

Leach Alpha III rear loader, single piece body side sheet

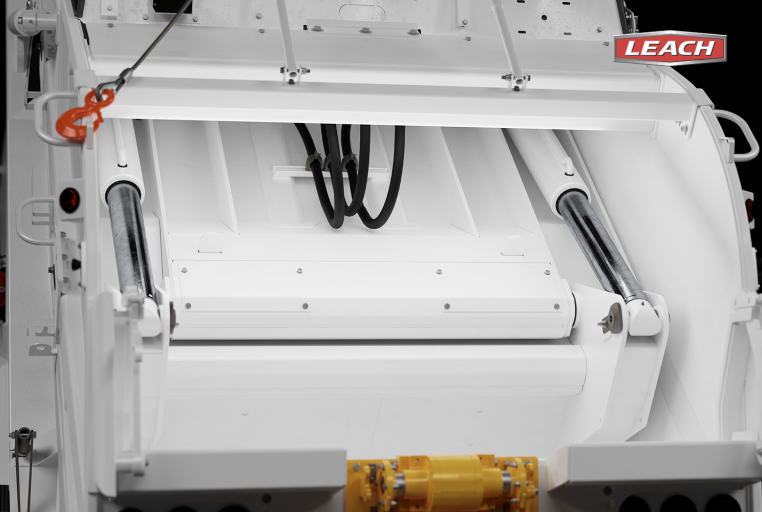

Leach Alpha III interchangeable packer and carrier cylinders in the tailgate

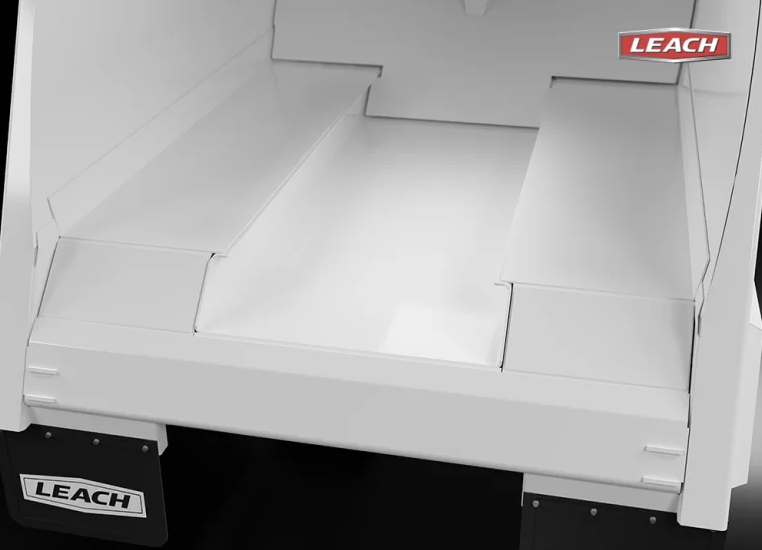

Leach Alpha III rear loader, single piece floor trough inside the body

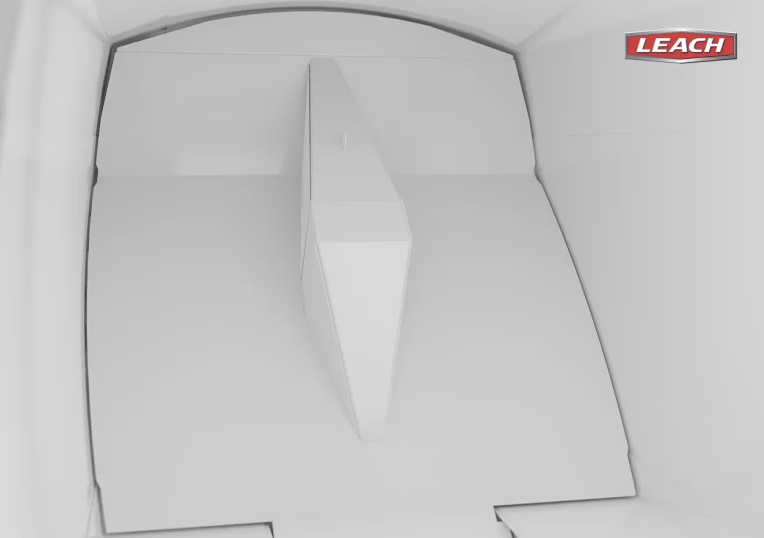

Leach Alpha III push-out panel with Diamond Force Compaction design
Leach

Alpha-III

description specs

Overview

The Leach Alpha III is a rear loader with body sizes from 14 yd³ to 32 yd³ and a trough sump holding up to 300 gallons of liquid. Its Residential and Light Commercial configurations have a 3.0 yd³ hopper and an 84" hopper opening width.

Key Features

  • Chromium carbide components are used in the slide shoes.
  • Slide shoes operate in upper and lower rails.
  • Pins can be greased at accessible lubrication points.
  • Controls sit above the floor inside the body.
  • Each body side uses a single sheet.

Options & Configurations

  • Residential and Light Commercial packages.
  • Lighting packages with protective guards.
  • EV or CNG powered.

Applications

  • Used for manual, residential, commercial and recycling collection.

Body Specifications

  • Body Trough Floor (Residential): 5/16" 50W 50,000 psi
  • Body Trough Floor (Light Commercial): 5/16" 50W 50,000 psi
  • Body Roof (Residential): 10ga A1011 80,000 psi
  • Body Roof (Light Commercial): 10ga A1011 80,000 psi
  • Body Ramp Liners (Light Commercial): 1/4" A715 GR80 80,000 psi

Cylinder Specifications

  • Ejector Cylinder (14 yd³ bodies) (Residential): 1 stage 4-1/2" bore x 43" stroke
  • Ejector Cylinder (14 yd³ bodies) (Light Commercial): 1 stage 4-1/2" bore x 43" stroke
  • Ejector Cylinder (16 yd³ bodies) (Residential): 2 stages 5-1/2" bore x 54-1/2" stroke
  • Ejector Cylinder (16 yd³ bodies) (Light Commercial): 2 stages 5-1/2" bore x 54-1/2" stroke
  • Ejector Cylinder (18 yd³ bodies) (Residential): 2 stages 5-1/2" bore x 66-1/2" stroke
  • Ejector Cylinder (18 yd³ bodies) (Light Commercial): 2 stages 5-1/2" bore x 66-1/2" stroke
  • Ejector Cylinder (20 yd³ bodies) (Residential): 2 stages 5-1/2" bore x 78-1/2" stroke
  • Ejector Cylinder (20 yd³ bodies) (Light Commercial): 2 stages 5-1/2" bore x 78-1/2" stroke
  • Ejector Cylinder (25 yd³ bodies) (Residential): 3 stages 6-1/2" bore x 115-9/16" stroke
  • Ejector Cylinder (25 yd³ bodies) (Light Commercial): 3 stages 6-1/2" bore x 115-9/16" stroke
  • Ejector Cylinder (29 yd³ bodies) (Residential): 4 stages 6-1/2" bore x 147-7/8" stroke
  • Ejector Cylinder (32 yd³ bodies) (Residential): 5 stages 7-1/2" bore x 170-5/16" stroke
  • Ejector Cylinder (32 yd³ bodies) (Light Commercial): 5 stages 7-1/2" bore x 170-5/16" stroke
  • Tailgate Cylinders (Residential): 4" bore x 3-1/2" rod x 32-11/16" stroke
  • Tailgate Cylinders (Light Commercial): 4" bore x 3-1/2" rod x 32-11/16" stroke

Performance Specifications

  • Tailgate Open (Residential): 10 sec @ 700 rpm
  • Tailgate Open (Light Commercial): 10 sec @ 700 rpm
  • Tailgate Close (with Safety Flow limiter) (Residential): 30 sec @ 700 rpm
  • Tailgate Close (with Safety Flow limiter) (Light Commercial): 30 sec @ 700 rpm

Hopper Specifications

  • Hopper Size (yd³) (Residential): 3.0
  • Hopper Size (yd³) (Light Commercial): 3.0
  • Hopper Opening Width (Residential): 84"
  • Hopper Opening Width (Light Commercial): 84"
  • Hopper Opening Height (Residential): 61-1/4"
  • Hopper Opening Height (Light Commercial): 61-1/4"
  • Hopper Depth (Residential): 16"
  • Hopper Depth (Light Commercial): 16"
  • Loading Sill Below Chassis Frame (Residential): 5"
  • Loading Sill Below Chassis Frame (Light Commercial): 5"
  • Hopper Floor (Residential): 3/16" 100QT 100,000 psi (AR450, 175,000 psi optional)
  • Hopper Floor (Light Commercial): 1/4" 100QT 100,000 psi (AR450, 175,000 psi optional)
  • Hopper Sides (upper) (Residential): 3/16" 50W 50,000 psi (AR450, 175,000 psi optional)
  • Hopper Sides (upper) (Light Commercial): 3/16" 50W 50,000 psi (AR450, 175,000 psi optional)
  • Hopper Sides (lower) (Residential): 3/16" 50W 50,000 psi (AR450, 175,000 psi optional)
  • Hopper Sides (lower) (Light Commercial): 1/4" 50W 50,000 psi (AR450, 175,000 psi optional)

Ejector Specifications

  • Ejector Panel Face Plate (Residential): 3/16" 50W 50,000 psi
  • Ejector Panel Face Plate (Light Commercial): 3/16" 50W 50,000 psi

Hydraulic Specs

  • Pump (Residential): Vane
  • Pump (Light Commercial): Vane
  • Pump Capacity (Residential): 42 gpm @ 1200 rpm
  • Pump Capacity (Light Commercial): 42 gpm @ 1200 rpm
  • Max. Operating Pressure (Residential): 2,150 psi
  • Max. Operating Pressure (Light Commercial): 2,150 psi
  • Oil Reservoir (Residential): 50 gallons
  • Oil Reservoir (Light Commercial): 50 gallons

Packer-Carrier Specs

  • Packer Panel Face Plate (Residential): 3/16" 50W 50,000 psi
  • Packer Panel Face Plate (Light Commercial): 3/16" 50W 50,000 psi
  • Carrier Panel Face Plate (Residential): 7ga 50W 50,000 psi
  • Carrier Panel Face Plate (Light Commercial): 7ga 50W 50,000 psi

Body Dimensions

  • Overall Length, Tailgate Closed (in.) (14 yd³ body): 192
  • Overall Length, Tailgate Closed (in.) (16 yd³ body): 205
  • Overall Length, Tailgate Closed (in.) (18 yd³ body): 218
  • Overall Length, Tailgate Closed (in.) (20 yd³ body): 230
  • Overall Length, Tailgate Closed (in.) (25 yd³ body): 269
  • Overall Length, Tailgate Closed (in.) (29 yd³ body): 302
  • Overall Length, Tailgate Closed (in.) (32 yd³ body): 325
  • Overall Width (in.) (14 yd³ body): 102
  • Overall Width (in.) (16 yd³ body): 102
  • Overall Width (in.) (18 yd³ body): 102
  • Overall Width (in.) (20 yd³ body): 102
  • Overall Width (in.) (25 yd³ body): 102
  • Overall Width (in.) (29 yd³ body): 102
  • Overall Width (in.) (32 yd³ body): 102
  • Overall Height Above Frame, Tailgate Closed (in.) (14 yd³ body): 93
  • Overall Height Above Frame, Tailgate Closed (in.) (16 yd³ body): 93
  • Overall Height Above Frame, Tailgate Closed (in.) (18 yd³ body): 93
  • Overall Height Above Frame, Tailgate Closed (in.) (20 yd³ body): 93
  • Overall Height Above Frame, Tailgate Closed (in.) (25 yd³ body): 93
  • Overall Height Above Frame, Tailgate Closed (in.) (29 yd³ body): 93
  • Overall Height Above Frame, Tailgate Closed (in.) (32 yd³ body): 93
  • Overall Length, Tailgate Open (in.) (14 yd³ body): 230
  • Overall Length, Tailgate Open (in.) (16 yd³ body): 243
  • Overall Length, Tailgate Open (in.) (18 yd³ body): 255
  • Overall Length, Tailgate Open (in.) (20 yd³ body): 268
  • Overall Length, Tailgate Open (in.) (25 yd³ body): 307
  • Overall Length, Tailgate Open (in.) (29 yd³ body): 340
  • Overall Length, Tailgate Open (in.) (32 yd³ body): 363
  • Overall Height Above Frame, Tailgate Open (in.) (14 yd³ body): 154
  • Overall Height Above Frame, Tailgate Open (in.) (16 yd³ body): 154
  • Overall Height Above Frame, Tailgate Open (in.) (18 yd³ body): 154
  • Overall Height Above Frame, Tailgate Open (in.) (20 yd³ body): 154
  • Overall Height Above Frame, Tailgate Open (in.) (25 yd³ body): 154
  • Overall Height Above Frame, Tailgate Open (in.) (29 yd³ body): 154
  • Overall Height Above Frame, Tailgate Open (in.) (32 yd³ body): 154

Features

  • Body sizes: 14 yd³ to 32 yd³
  • Hopper: Standard 3.0 yd³
  • Trough sump: Up to 300 gallons of liquid
  • Compaction design: Diamond Force
  • Ejector cylinder: Telescopic, installed at an upward angle
  • Slide shoes: Chromium carbide components
  • Slide shoe rails: Upper and lower
  • Maintenance: Greaseable pins and accessible lubrication points
  • Control location: Inside the body above the floor
  • Body floor: 5/16" in the center and 1/4" on each side
  • Body side sheet: Single piece construction
  • Collection type: Manual, residential, commercial, recycling, full eject, EV, CNG

Options

  • Lighting packages: With protective guards
  • Packages: Residential and Light Commercial
  • EV or CNG powered
  • CNG capacity: 50 to 100 DGE
  • CNG mounting: Frame, roof or cab
