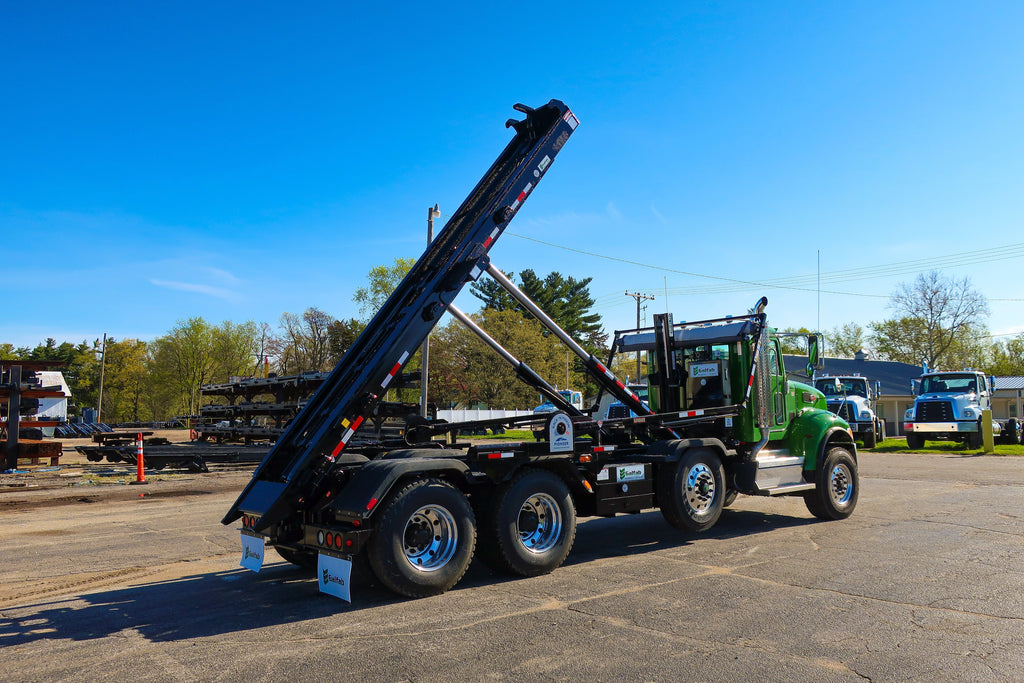

Galfab roll-off hoist raised on a green truck, passenger side rear three quarter view
Galfab roll-off hoist raised on a green truck, passenger side rear three quarter view

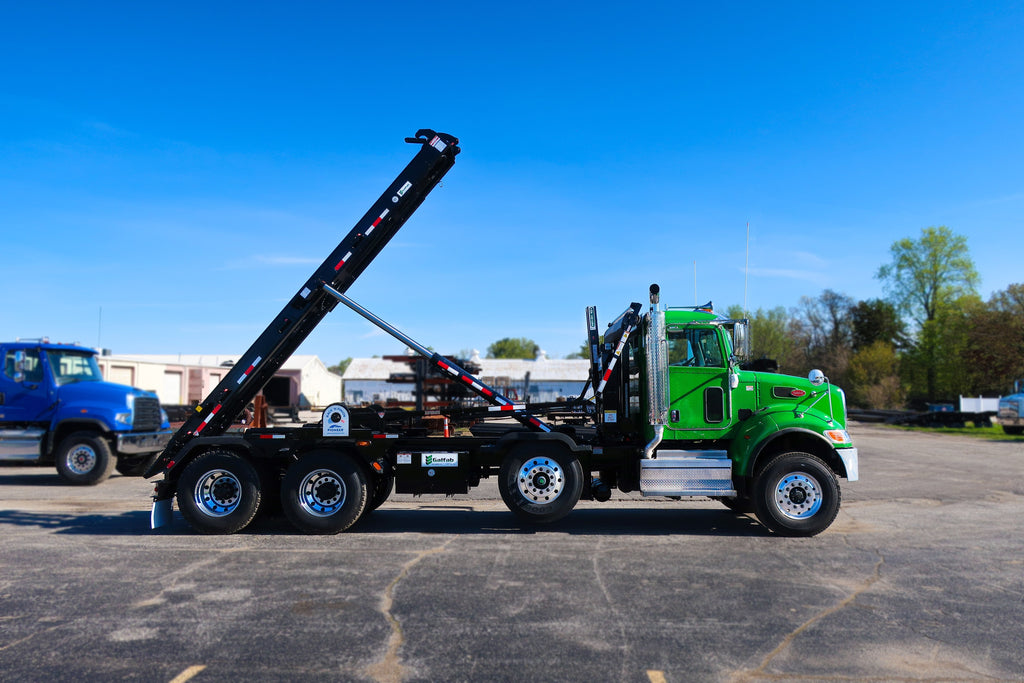

Galfab roll-off hoist raised on a green truck, passenger side view

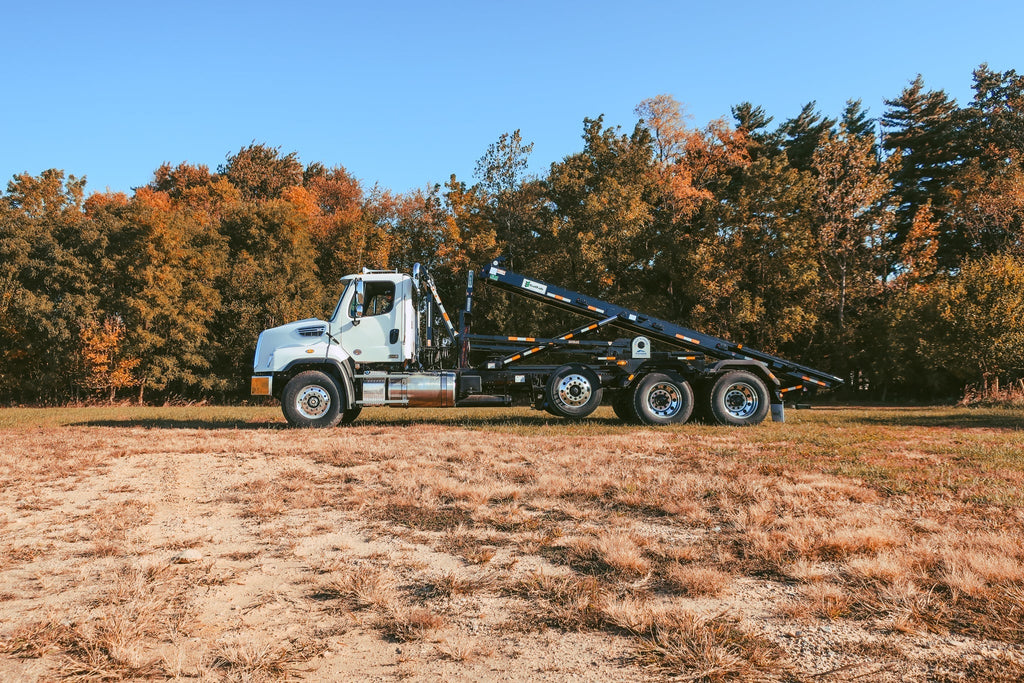

Galfab roll-off hoist partly raised on a white truck in a field, driver side view

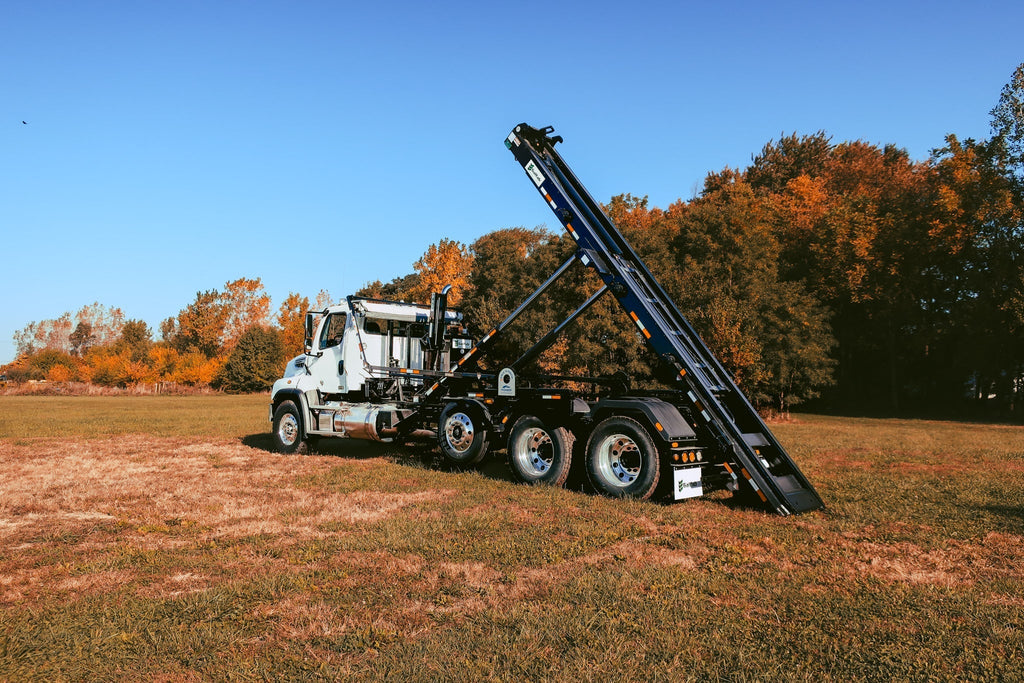

Galfab roll-off hoist raised on a white truck in a field, driver side rear three quarter view
Galfab

Galfab AFOR75194S069 Above Frame OR Hoist

description specs

Overview

The Galfab AFOR75194S069 is an Above Frame OR Hoist with a 50 degree dump angle. Its factory developed cycle times are 36 seconds up, 20 seconds down, 46 seconds on and 35 seconds off, and may vary. The winch cylinder is 6"-3" x 91.5" DA.

Key Features

  • Lift cylinders mounted outboard, with a Tricep vertical lift assist cylinder
  • 2500 PSI working pressure
  • 10" x 4" x 3/8" main frame tube with a 1/2" x 3" wear strip on top
  • Outboard supported side rollers whose greasable shafts come out with two bolts
  • 30 gallon oil reservoir with sight and temperature gauge, 25 micron filtration, suction screen and return filter
  • Inside and outside controls
  • 7/8" cable with swivel eye hook
  • Hoist up warning light, hoist up alarm and backup alarm

Options & Configurations

  • Pintle hook options
  • PTO
  • On board scale systems
  • Work lights
  • Rear view camera systems
  • Ratchet tie down straps
  • Tool boxes
  • Auxiliary stops
  • Poly or steel fenders
  • Aluminum fenders
  • Tarping systems
  • "The Hooker" hold on system
  • Integrated hydraulics, where a hydraulic tarping system is used

Applications

The AFOR75194S069 is for CNG chassis, though not limited to them.

Related Parts & Accessories

Specifications

  • Dump angle: 50 degrees
  • Cycle time, up: 36 sec
  • Cycle time, down: 20 sec
  • Cycle time, on: 46 sec
  • Cycle time, off: 35 sec
  • Cycle times: factory developed and may vary
  • Winch cylinder: 6"-3" x 91.5" DA

Features

  • Lift cylinders mounted outboard, plus a vertical lift assist cylinder
  • Tricep lift assist cylinder
  • 2500 PSI working pressure
  • Auto fold bumper, folds forward
  • Outboard supported side rollers; each greasable shaft comes out by removing two bolts
  • 10" x 4" x 3/8" main frame tube
  • 1/2" x 3" wear strip on top
  • 1/2" x 4" spacer bar on the bottom side of the mainframe
  • Main frame wear strips
  • All working points greaseable
  • 2 1/2" diameter rear hinge
  • Pintle ready apron
  • 1" spring loaded container locks
  • 1" spring loaded container stops
  • 2 1/2" diameter lift cylinder shafts
  • 2 1/2" diameter lift shaft
  • 3/8" x 3" winch cylinder rod covers
  • Dual inboard 6" diameter winch cylinders
  • 6 inboard and outboard supported outside rollers
  • Container long sill supports at the rear of the mainframe
  • 12" diameter vertical front sheave
  • 12" diameter sheave blocks
  • 30 gallon oil reservoir with sight and temperature gauge
  • 25 micron filtration
  • Suction screen and return filter
  • Front mount pump
  • Inside and outside controls
  • 7/8" cable with swivel eye hook
  • LED lighting system
  • Sealed wiring system
  • Hoist up warning light
  • Hoist up alarm
  • Backup alarm

Options

  • Pintle hook options
  • PTO
  • On board scale systems
  • Work lights
  • Rear view camera systems
  • Ratchet tie down straps
  • Tool boxes
  • Auxiliary stops
  • Poly or steel fenders
  • Aluminum fenders
  • Tarping systems
  • "The Hooker" hold on system
  • Integrated hydraulics, where a hydraulic tarping system is used
