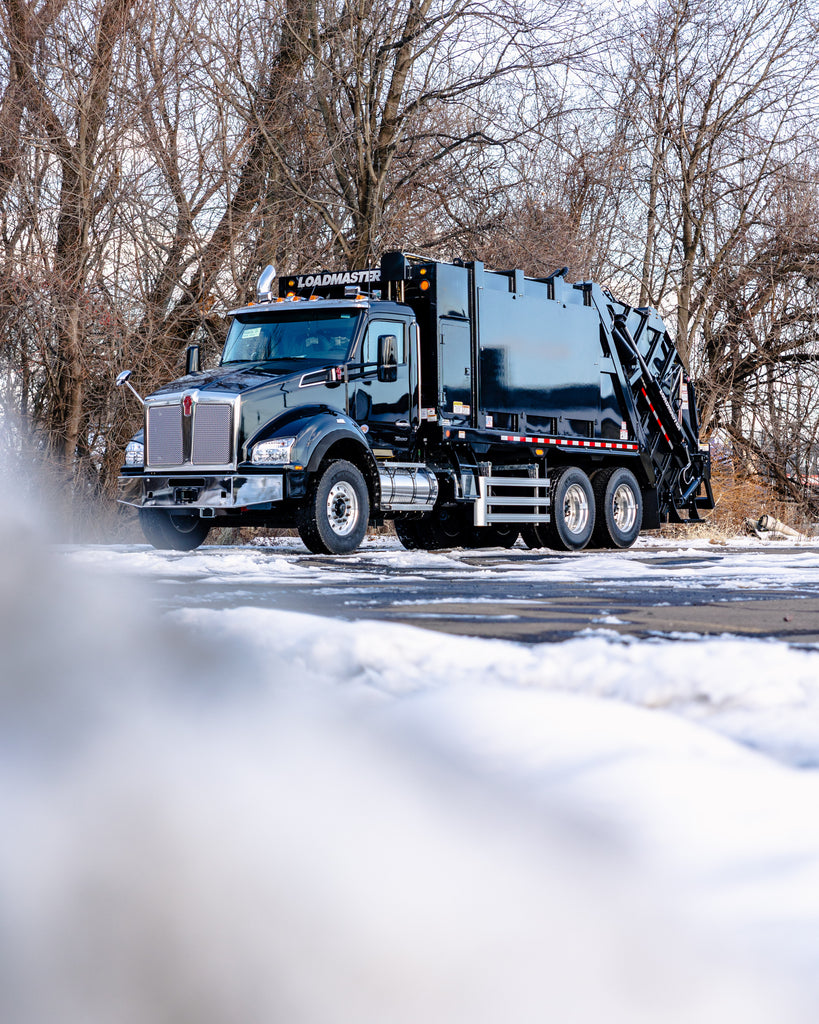

Loadmaster 400 Series rear loader on a black tandem axle truck, driver side front three quarter view
Loadmaster 400 Series rear loader on a black tandem axle truck, driver side front three quarter view

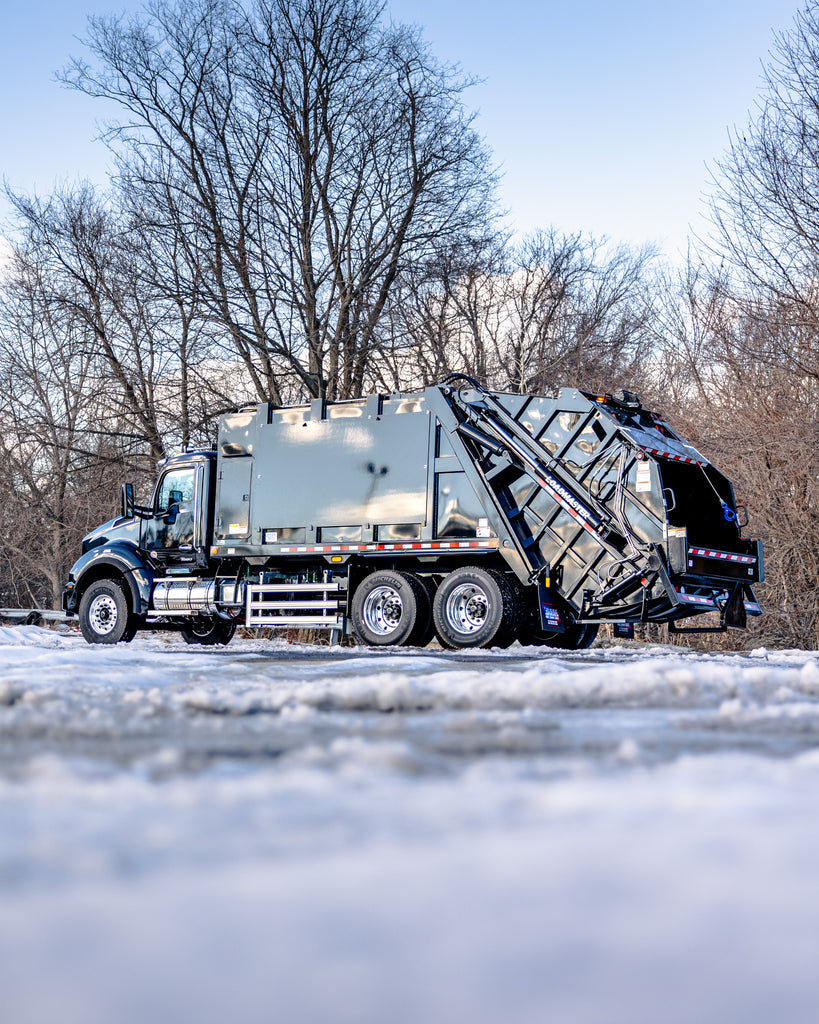

Loadmaster 400 Series rear loader on a black tandem axle truck, driver side rear three quarter view

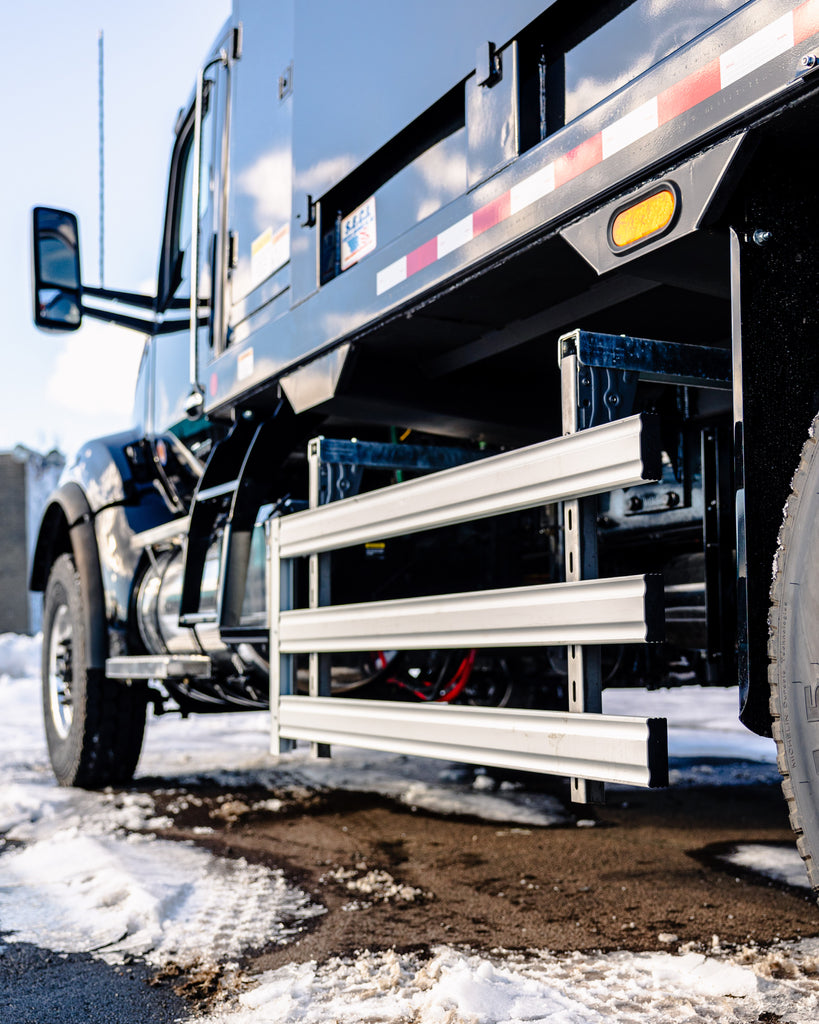

Loadmaster rear loader, low close view under the driver side of the body with silver side rails and a marker light
Loadmaster

Loadmaster 400 Rear Loader

description specs

Overview

The Loadmaster 400 is a rear loader built in Standard and Demolition styles. Body volumes are STD 20, STD 25 and STD 31 cubic yards, with a 3.5 cubic yard hopper. On the Standard style, the pump is 47 GPM direct coupled to the PTO, or a bracket-mounted gear pump with a prop shaft from the PTO, and maximum system pressure is 2000 PSI.

Key Features

  • Turnbuckle tailgate latches
  • Body access door reached by a ladder
  • Color-coded control levers
  • Every wire color coded and imprinted with its function on the Standard style
  • "In the body" style oil tank, fully accessorized
  • Bolt-on riding steps
  • Lights under the sill and above the hopper on the Standard style
  • Undercoating and mudflaps behind the rear tires

Options & Configurations

  • Standard and Demolition styles
  • Body volumes STD 20, STD 25 and STD 31 yd
  • Body structural upgrades in thicknesses and alloys, and tailgate structural upgrades in thicknesses and liners
  • Cart tippers installed at the factory, cart lifters, a sling lift, a drum winch and commercial container lifting
  • Work lights in or out of the hopper, beacons and strobes, additional lighting and customer specified street lighting schemes
  • Body roof tube protection, a roof-mounted cable reever, a roll bar and a can stop bar
  • Frame-mounted oil reservoir, remote grease zerks and clear coat paint

Related Parts & Accessories

Specifications

  • Body volumes: STD 20 yd, STD 25 yd, STD 31 yd
  • Hopper capacity: 3.5 yd
  • Load sill below chassis: 4 inches
  • Approximate body weight, STD 20 yd: 16,500 LBS
  • Approximate body weight, STD 25 yd: 17,500 LBS
  • Approximate body weight, STD 31 yd: 18,800 LBS
  • Minimum GVWR, STD 20 yd: 48,000
  • Minimum front GAWR, STD 20 yd: 12,000
  • Minimum rear GAWR, STD 20 yd: 36,000
  • CT, STD 20 yd: 136"
  • Minimum AF, STD 20 yd: 36"
  • Minimum GVWR, STD 25 yd: 54,000
  • Minimum front GAWR, STD 25 yd: 14,000
  • Minimum rear GAWR, STD 25 yd: 40,000
  • CT, STD 25 yd: 162"
  • Minimum AF, STD 25 yd: 36"
  • Minimum GVWR, STD 31 yd: 60,000
  • Minimum front GAWR, STD 31 yd: 16,000
  • Minimum rear GAWR, STD 31 yd: 44,000
  • CT, STD 31 yd: 196"
  • Minimum AF, STD 31 yd: 36"
  • Body roof (Standard): flat panel 11 GA hi-tensile
  • Body floor (Standard): 10ga (1/8" thk) high tensile
  • Body longitudinals (Standard): Tubular, 1/4" wall x 3" x 7"
  • Ejector track channels (Standard): 1/4" high tensile
  • Lower tailgate sides (Standard): 3/16" abrasion-resistant
  • Upper tailgate sides (Standard): 10 GA high tensile
  • Hopper floor (Standard): 1/4" abrasion-resistant
  • Separator panel (Standard): 3/16" abrasion-resistant
  • Hopper reinforcers (Standard): 6" structural C-chann (4 reinforcers)
  • Sweep face panel (Standard): 3/16" T-1 Alloy
  • Sweep push arms (Standard): 1/2" high tensile
  • Slider face panel (Standard): 3/16" abrasion resistant
  • Pivot pinning ("wrist") (Standard): 3" dia. med-carbon round Cold Finish
  • Slider rollers (Standard): 6" Diameter, aluminum bronze sleeve bearings
  • Ejector face panel (Standard): 10 GA. high tensile
  • Ejector face bracings (Standard): 1/4" high tensile channels & multiple tubulars
  • Ejector shoeings (Standard): UHMW polyethylene
  • Ejector shoe carrier (Standard): 3/8" thk chann
  • Hydraulic reservoir (Standard): 70 gallons
  • Pump (Standard): 47 GPM direct-couple to PTO, or a bracket-mounted gear pump with a prop shaft from the PTO
  • Max system pressure (Standard): 2000 PSI
  • Suction filter (Standard): 100mesh
  • Return filter (Standard): 16 Micron
  • Sweep cylinders (Standard): 7" Bore
  • Slider cylinders (Standard): 5 1/2" Bore
  • Gate lift cylinders (Standard): 5 1/2" bore single-acting
  • Ejector telescopic cylinder (Standard): 6 1/2" largest bore (typically, 4 stages)
  • Harnessing (Standard): 4 serviceable segments

Features

  • Wires color coded with function imprints (Standard)
  • Dual-path BUS stud grounds at the upper and lower rear lights (Standard)
  • In-cab control center with a 4 "marine" rocker switch sub-panel (Standard)
  • In-cab PTO engage light (Standard)
  • Full complement of lights under the sill and above the hopper (Standard)
  • Color-coded control levers
  • Undercoating
  • Mudflaps rearward of the rear tires
  • Turnbuckle tailgate latches
  • Bolt-on riding steps
  • Fully accessorized oil reservoir
  • Body access door
  • Ladder to the body access door
  • "In the body" style oil tank
  • Rock chip protective coating above the rear tires

Options

  • Body roof tube protection
  • Work lights (in hopper and/or out hopper)
  • Beacons and strobes
  • Cart tipper factory installs
  • Roof-mounted cable reever
  • Sling lift
  • Roll bar
  • Can stop bar
  • Drum winch
  • Frame-mounted oil reservoir
  • Customer specified street lighting schemes
  • Body structural upgrades (thicknesses and alloys)
  • Tailgate structural upgrades (thicknesses and liners)
  • Demolition upgrade: 1/4" AR 235 body floor
  • Demolition upgrade: 1/4" AR 235 body roof
  • Demolition upgrade: 3/16" AR 235 body sides
  • Demolition upgrade: 1/4" ejector face
  • Demolition upgrade: 1/4" T-1 sweep blade liner
  • Demolition upgrade: 1/4" slide blade liner
  • Demolition upgrade: 3/8" AR 235 hopper floor
  • Demolition upgrade: 3/8" AR 235 separator
  • Demolition upgrade: 1/4" T-1 tailgate sides
  • Additional lighting
  • Remote grease zerks
  • Cart lifters
  • Commercial container lifting
  • Clear coat paint
