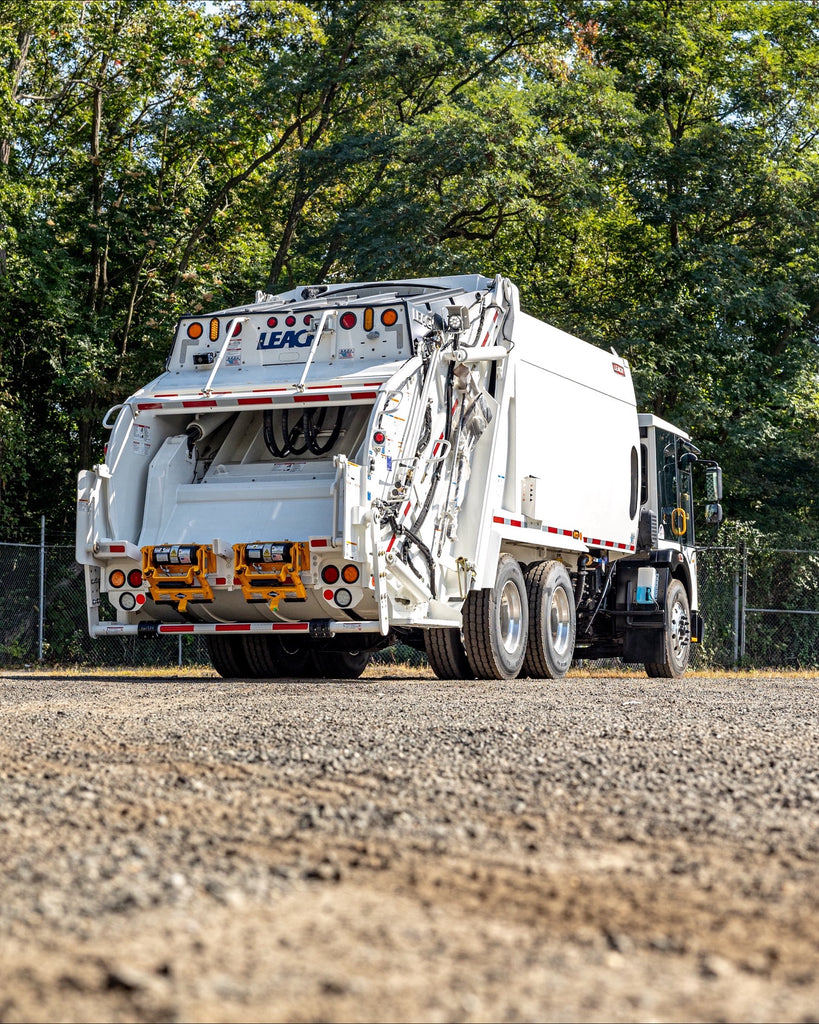

Leach rear loader refuse body in white with cart tippers, rear three quarter side view

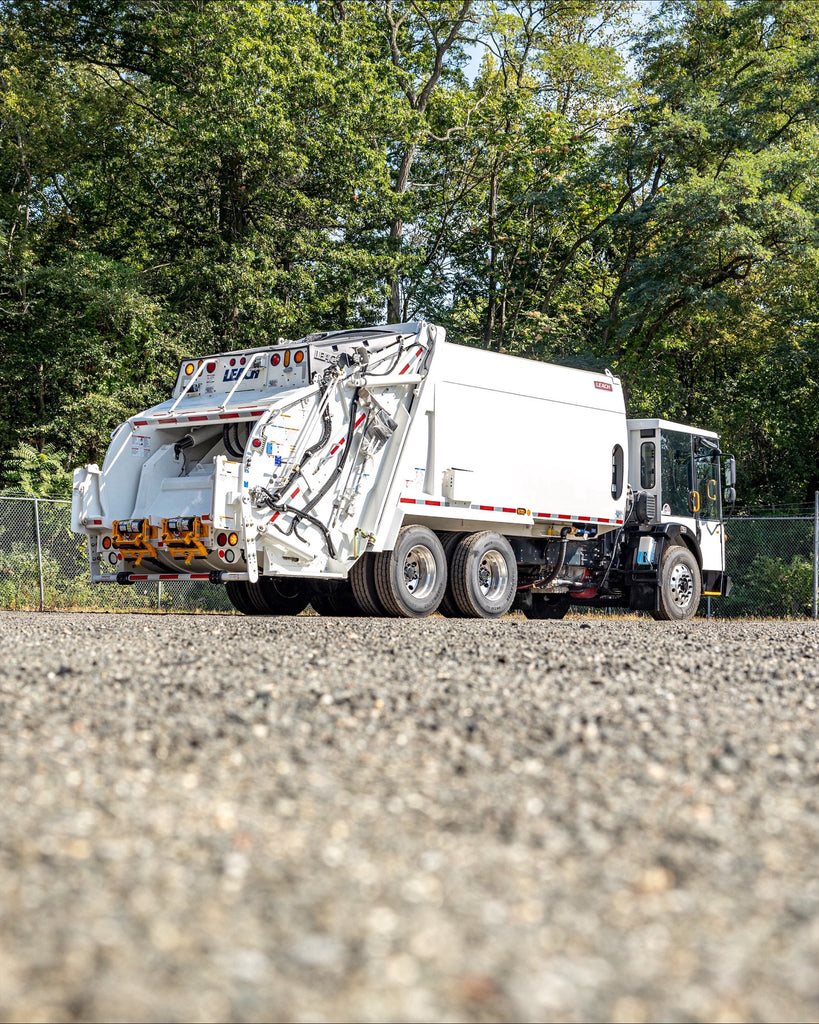

Leach rear loader refuse body in white with cart tippers, rear three quarter side view

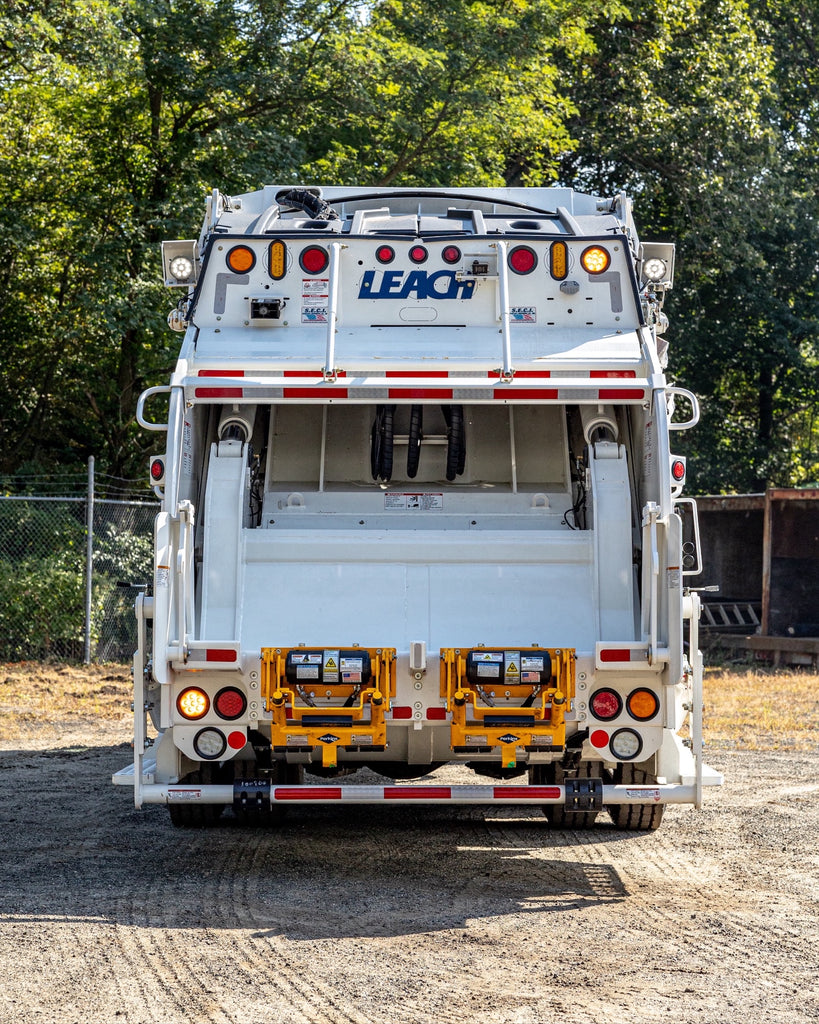

Leach rear loader refuse body in white with two cart tippers, rear view
Leach rear loader refuse body in white with two cart tippers, rear three quarter view

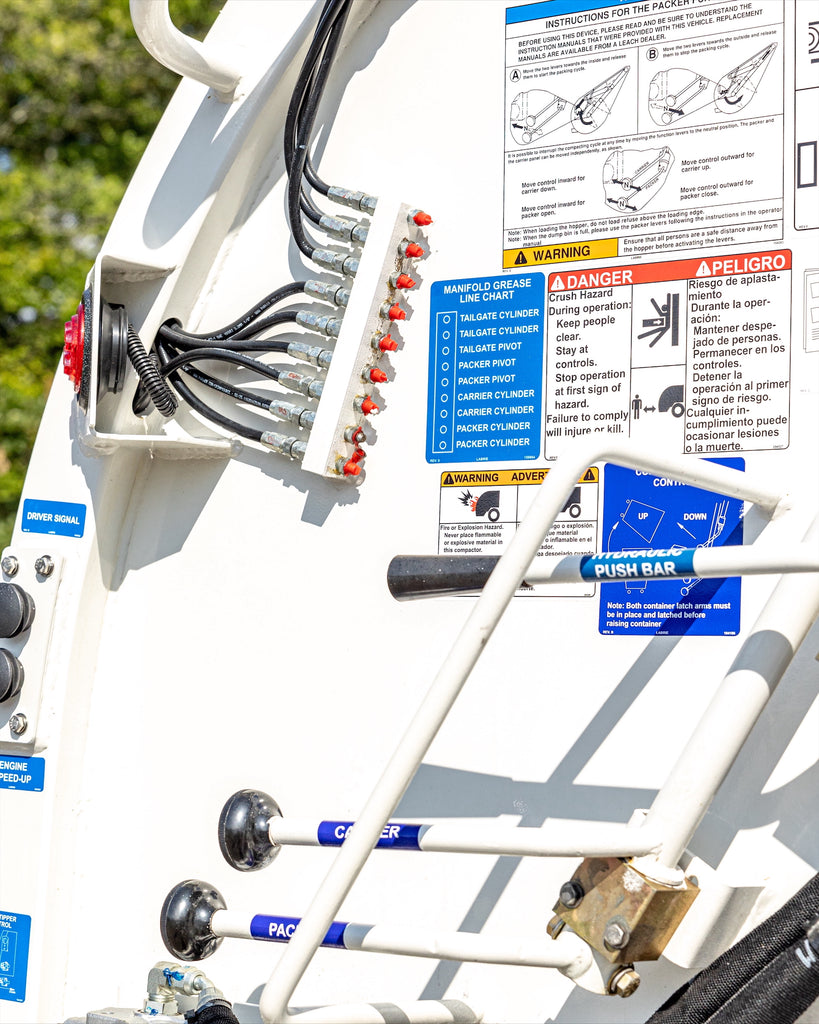

Rear loader tailgate packer controls, close view
Leach

Leach 2R-III Rear Loader

description specs

Overview

The Leach 2R-III is a rear loader with body sizes from 20 yd³ to 32 yd³ and a trough sump holding up to 300 gallons of liquid. The 2R-III HD Residential, Demolition and Commercial configurations have an 80" hopper opening width and a 23 to 26 sec packer/carrier cycle.

Key Features

  • Slide shoes operate in upper and lower rails.
  • The pins are greaseable, and the lubrication points are accessible.
  • The body floor measures 5/16" at its center and 1/4" along each side.

Options & Configurations

  • A 3.0 yd³ or 3.5 yd³ tailgate.
  • EV or CNG powered.
  • CNG mounting positions are the roof, frame and back of cab, with 50 to 100 DGE capacity.

Applications

  • Used for manual, residential, commercial, demolition and recycling collection.

Body Specs

  • Body Trough Floor (2R-III HD Residential): 5/16" 50W 50,000 psi
  • Body Trough Floor (2R-III HD Demolition): 5/16" 50W 50,000 psi
  • Body Trough Floor (2R-III HD Commercial): 5/16" 50W 50,000 psi
  • Body Sides (2R-III HD Residential): 10ga A1011 80,000 psi
  • Body Sides (2R-III HD Demolition): 10ga A1011 80,000 psi
  • Body Sides (2R-III HD Commercial): 10ga A1011 80,000 psi
  • Body Roof (2R-III HD Residential): 10ga A1011 80,000 psi
  • Body Roof (2R-III HD Demolition): 10ga A1011 80,000 psi
  • Body Roof (2R-III HD Commercial): 10ga A1011 80,000 psi
  • Body Ramp Liners (2R-III HD Demolition): 1/4" A715 GR80 80,000 psi (AR 450, 175,000 psi optional)
  • Body Ramp Liners (2R-III HD Commercial): 1/4" A715 GR80 80,000 psi (AR 450, 175,000 psi optional)
  • Body Roof Liner (Body Rear End) (2R-III HD Commercial): 10ga A1011 80,000 psi
  • Body Sides Liners (Body Rear End) (2R-III HD Commercial): 10ga A1011 80,000 psi

Hopper Specs

  • Hopper Size (yd³) (2R-III HD Residential): 3.5 yd³ (also available in 3.0 yd³)
  • Hopper Size (yd³) (2R-III HD Demolition): 3.5 yd³ (also available in 3.0 yd³)
  • Hopper Size (yd³) (2R-III HD Commercial): 3.5 yd³ (also available in 3.0 yd³)
  • Hopper Opening Width (2R-III HD Residential): 80"
  • Hopper Opening Width (2R-III HD Demolition): 80"
  • Hopper Opening Width (2R-III HD Commercial): 80"
  • Hopper Opening Height (2R-III HD Residential): 57.5"
  • Hopper Opening Height (2R-III HD Demolition): 57.5"
  • Hopper Opening Height (2R-III HD Commercial): 57.5"
  • Hopper Depth (2R-III HD Residential): 18-1/4"
  • Hopper Depth (2R-III HD Demolition): 18-1/4"
  • Hopper Depth (2R-III HD Commercial): 18-1/4"
  • Hopper Floor (2R-III HD Residential): 1/4" 100QT 100,000 psi (AR 450, 175,000 psi optional)
  • Hopper Floor (2R-III HD Demolition): 1/2" 100QT 100,000 psi (AR 450, 175,000 psi optional)
  • Hopper Floor (2R-III HD Commercial): 1/2" 100QT 100,000 psi, front liner 1/4" A514 100,000 psi

Body Dimensions

  • Overall Length, Tailgate Closed (in.) (20 yd³ body): 263
  • Overall Length, Tailgate Closed (in.) (25 yd³ body): 285
  • Overall Length, Tailgate Closed (in.) (29 yd³ body): 318
  • Overall Length, Tailgate Closed (in.) (32 yd³ body): 341
  • Overall Width (in.) (20 yd³ body): 102
  • Overall Width (in.) (25 yd³ body): 102
  • Overall Width (in.) (29 yd³ body): 102
  • Overall Width (in.) (32 yd³ body): 102
  • Overall Height Above Frame, Tailgate Closed (in.) (20 yd³ body): 93
  • Overall Height Above Frame, Tailgate Closed (in.) (25 yd³ body): 93
  • Overall Height Above Frame, Tailgate Closed (in.) (29 yd³ body): 93
  • Overall Height Above Frame, Tailgate Closed (in.) (32 yd³ body): 93
  • Overall Length, Tailgate Open (in.) (20 yd³ body): 279
  • Overall Length, Tailgate Open (in.) (25 yd³ body): 301
  • Overall Length, Tailgate Open (in.) (29 yd³ body): 334
  • Overall Length, Tailgate Open (in.) (32 yd³ body): 357
  • Overall Height Above Frame, Tailgate Open (in.) (20 yd³ body): 184
  • Overall Height Above Frame, Tailgate Open (in.) (25 yd³ body): 184
  • Overall Height Above Frame, Tailgate Open (in.) (29 yd³ body): 184
  • Overall Height Above Frame, Tailgate Open (in.) (32 yd³ body): 184

Cylinder Specs

  • Ejector Cylinder (20 yd³ bodies) (2R-III HD Residential): 3 stages 6-1/2" bore x 94-1/4" stroke
  • Ejector Cylinder (20 yd³ bodies) (2R-III HD Demolition): 3 stages 6-1/2" bore x 94-1/4" stroke
  • Ejector Cylinder (25 yd³ bodies) (2R-III HD Residential): 3 stages 6-1/2" bore x 115-9/16" stroke
  • Ejector Cylinder (25 yd³ bodies) (2R-III HD Demolition): 3 stages 6-1/2" bore x 115-9/16" stroke
  • Ejector Cylinder (25 yd³ bodies) (2R-III HD Commercial): 3 stages 6-1/2" bore x 115-9/16" stroke
  • Ejector Cylinder (29 yd³ bodies) (2R-III HD Residential): 4 stages 6-1/2" bore x 148-1/4" stroke
  • Ejector Cylinder (29 yd³ bodies) (2R-III HD Demolition): 4 stages 6-1/2" bore x 148-1/4" stroke
  • Ejector Cylinder (29 yd³ bodies) (2R-III HD Commercial): 4 stages 6-1/2" bore x 148-1/4" stroke
  • Tailgate Cylinders (2R-III HD Residential): 4" bore x 3-1/2" rod x 32-11/16" stroke
  • Tailgate Cylinders (2R-III HD Demolition): 4" bore x 3-1/2" rod x 32-11/16" stroke
  • Tailgate Cylinders (2R-III HD Commercial): 4" bore x 3-1/2" rod x 32-11/16" stroke

Hydraulic Specs

  • Pump (2R-III HD Residential): Vane
  • Pump (2R-III HD Demolition): Vane
  • Pump (2R-III HD Commercial): Vane
  • Pump Capacity (2R-III HD Residential): 42 gpm @ 1200 rpm
  • Pump Capacity (2R-III HD Demolition): 42 gpm @ 1200 rpm
  • Pump Capacity (2R-III HD Commercial): 42 gpm @ 1200 rpm
  • Max. Operating Pressure (2R-III HD Residential): 2,300 psi
  • Max. Operating Pressure (2R-III HD Demolition): 2,300 psi
  • Max. Operating Pressure (2R-III HD Commercial): 2,300 psi
  • Oil Reservoir (2R-III HD Residential): 50 gallons
  • Oil Reservoir (2R-III HD Demolition): 50 gallons
  • Oil Reservoir (2R-III HD Commercial): 50 gallons

Ejector Specs

  • Ejector Panel Face Plate (2R-III HD Residential): 3/16" 50W 50,000 psi
  • Ejector Panel Face Plate (2R-III HD Demolition): 3/16" 50W 50,000 psi
  • Ejector Panel Face Plate (2R-III HD Commercial): 3/16" 50W 50,000 psi

Packer-Carrier Specs

  • Packer Panel Face Plate (2R-III HD Residential): 1/4" A656 100QT
  • Packer Panel Face Plate (2R-III HD Demolition): 1/4" 100QT
  • Packer Panel Face Plate (2R-III HD Commercial): 1/4" 100QT liner 1/4" 50W 50,000 psi
  • Carrier Panel Face Plate (2R-III HD Residential): 3/16" 50W 50,000 psi
  • Carrier Panel Face Plate (2R-III HD Demolition): 3/16" 50W 50,000 psi
  • Carrier Panel Face Plate (2R-III HD Commercial): 3/16" 50W 50,000 psi, liner 3/16" 50W 50,000 psi

Performance Specs

  • Packer/Carrier Cycle Time (2R-III HD Residential): 23 to 26 sec
  • Packer/Carrier Cycle Time (2R-III HD Demolition): 23 to 26 sec
  • Packer/Carrier Cycle Time (2R-III HD Commercial): 23 to 26 sec
  • Tailgate Open (2R-III HD Residential): 10 sec @ 700 rpm
  • Tailgate Open (2R-III HD Demolition): 10 sec @ 700 rpm
  • Tailgate Open (2R-III HD Commercial): 10 sec @ 700 rpm
  • Tailgate Close (with Safety Flow limiter) (2R-III HD Residential): 30 sec @ 700 rpm
  • Tailgate Close (with Safety Flow limiter) (2R-III HD Demolition): 30 sec @ 700 rpm
  • Tailgate Close (with Safety Flow limiter) (2R-III HD Commercial): 30 sec @ 700 rpm

Features

  • Body sizes: 20 yd³ to 32 yd³
  • Trough sump: Up to 300 gallons of liquid
  • Ejector cylinder: Telescopic, installed at an upward angle
  • Compaction design: Diamond Force
  • Packer cylinders: Interchangeable
  • Slide shoe rails: Upper and lower
  • Maintenance: Greaseable pins and accessible lubrication points
  • Body floor: 5/16" in the center and 1/4" on each side
  • Collection type: Manual, residential, commercial, demolition, recycling, full eject, EV, CNG

Options

  • Tailgate options: 3.0 yd³ or 3.5 yd³
  • EV or CNG powered
  • CNG mounting: Roof, frame and back of cab
  • CNG capacity: 50 to 100 DGE
  • Reeving cylinder: Enclosed, for commercial applications
  • Hopper liners: AR steel available
