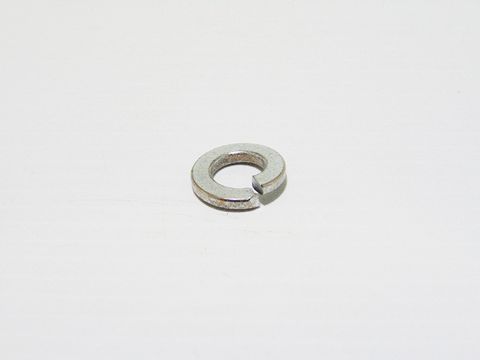

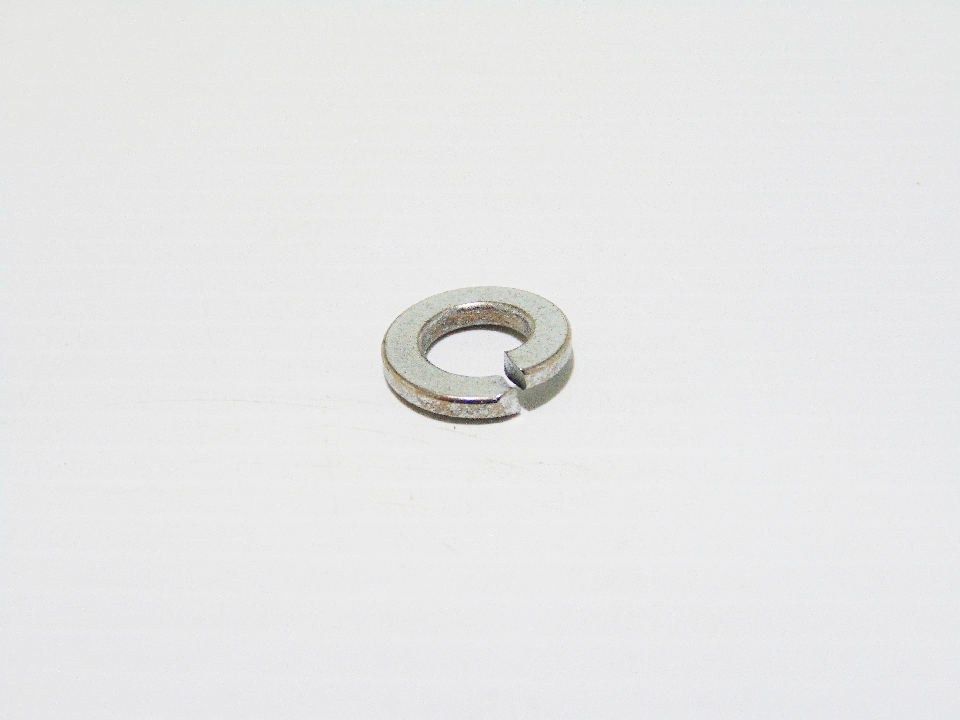

Washer, 0.313RFH 0.563 x .078 (QUR01271)

Overview

Part QUR01271 (Washer, 0.313RFH 0.563 x .078) is a genuine Labrie OEM part listed on parts diagrams for Labrie Automizer and Automizer Pendulum Packer side loaders, the Labrie heavy-duty right-hand arm and Leach 2R-III rear loaders. It appears on 21 parts diagrams. Labrie's parts catalog lists it under Hardware.

Compatibility

Listed on these parts diagrams (item number and quantity per diagram):

• Labrie Automizer side loader
  • Side Door - 870530 (TTD Units) (Section 1, page 73): item 8, qty 4
  • Side Door - 861239 (TTD Units) (Section 1, page 77): item 16, qty 4
  • Side Door - 835313 (TTD Units) (Section 1, page 79): item 8, qty 4
  • Side Door - 835316 (TTD Units) (Section 1, page 81): item 8, qty 4
  • Side Door Latch & Deflector's - 805672 (Section 1, page 99): item 7, qty 4
  • Ladder - Fold Down - TTD (Pendulum Packer) (Section 1, page 215): item 22, qty 6
  • Crusher Hyd's - (100% Crusher, JIC) (Section 2, page 359): item 13, qty 2
  • Packer Hyd's - TTD (No Regen - JIC, Pendulum Packer) (Section 2, page 397): item 18, qty 4
  • Packer Sensors - Pendulum Packer (Section 6, page 537): item 2, qty 10
• Labrie heavy-duty right-hand arm
  • Mast Assembly - 162185 - Heavy Duty RH Arm (Section 1, page 13): item 26, qty 12
  • Arm Rail End Protector's - Heavy Duty RH Arm (Section 1): item 7, qty 4
  • In/Out Rail Hydraulics - JIC (All Heavy Duty Right Hand Arms) - Heavy Duty RH Arm (Section 3): item 7, qty 14
  • In/Out Rail Hydraulics - ORFS (All Heavy Duty Right Hand Arms) - Heavy Duty RH Arm (Section 3): item 7, qty 14
  • Limit Switches (BCB01170-04, BCB01175-04, BCB01180-04, BCB01182-04, BCB01185-04 & BCB01187-04) - Heavy Duty RH Arm (Section 5): item 12, qty 2
  • Limit Switches (BCB01171-04, BCB01176-04, BCB01178, BCB01186-04) - Heavy Duty RH Arm (Section 5): item 12, qty 2
  • Limit Switches (BCB01190-04 & BCBM2190-01) - Heavy Duty RH Arm (Section 5): item 12, qty 2
• Leach 2R-III rear loader
  • Oil Reservoir - in Body (Section 4, page 165): item 24, qty 8 per filter
  • Sump Clean Out (diagram link A) (Section 11): item 12, qty 8
  • Sump Clean Out (diagram link B) (Section 11): item 12, qty 8
• Labrie Automizer Pendulum Packer side loader
  • Grease, Remote - Pendulum (Packer & Crusher With Right Hand Arm) (Section 1, page 37): item 12, qty 4
  • Grease, Remote - Pendulum (Packer & Crusher With Alley Hand Arm) (Section 1, page 39): item 12, qty 4

Parts Support

Not sure this is the right part? Call SECI at (203) 933-9599 with your body model and serial number, or use the parts request form.
