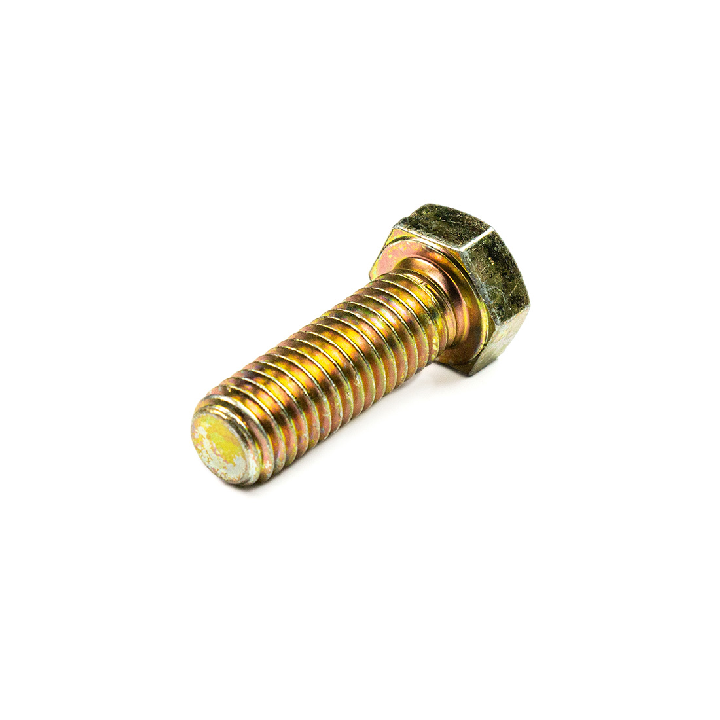

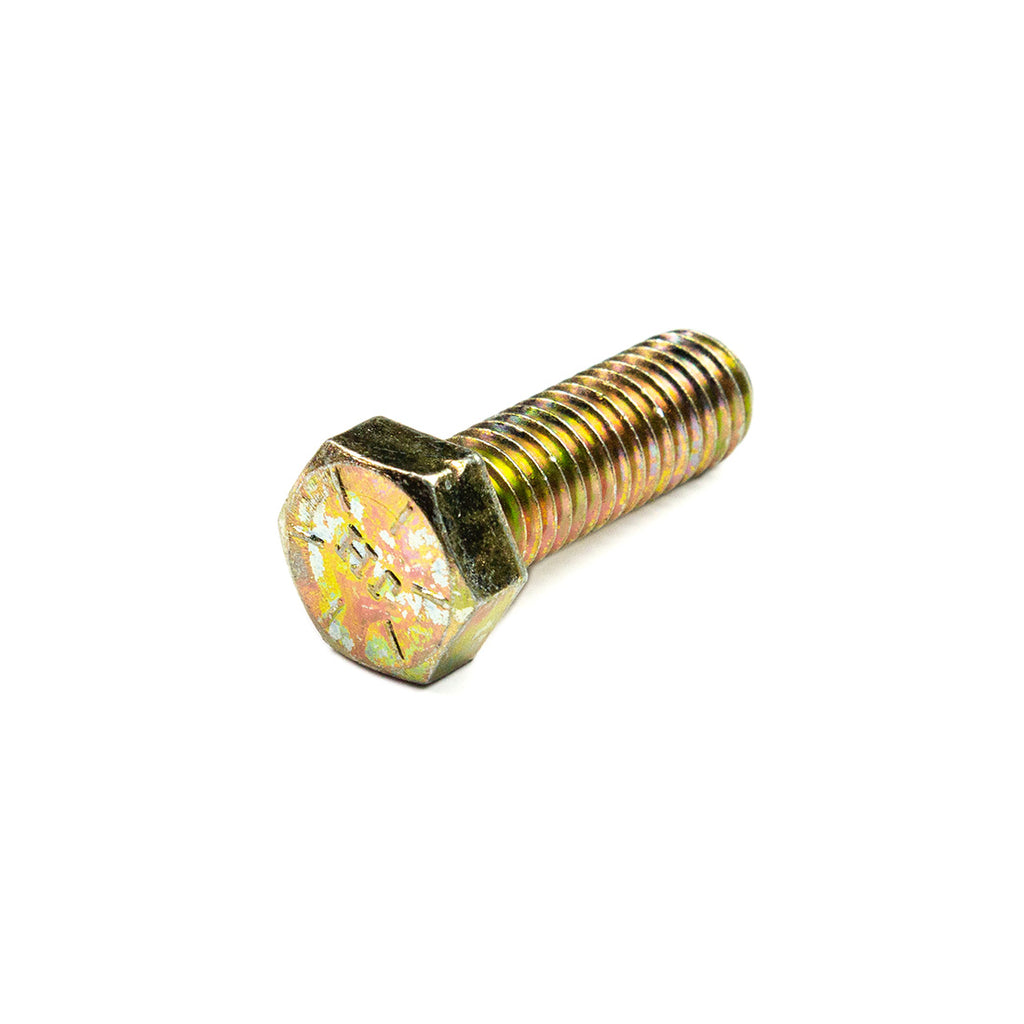

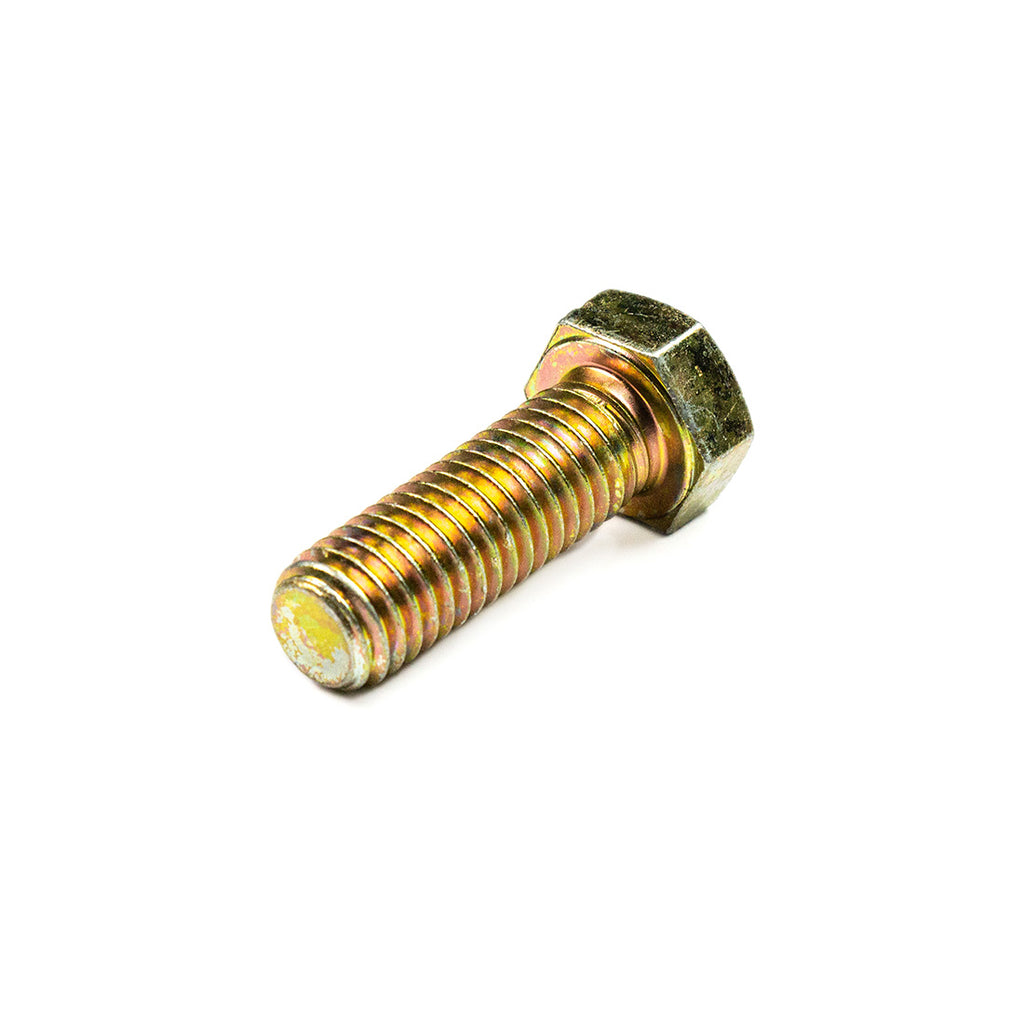

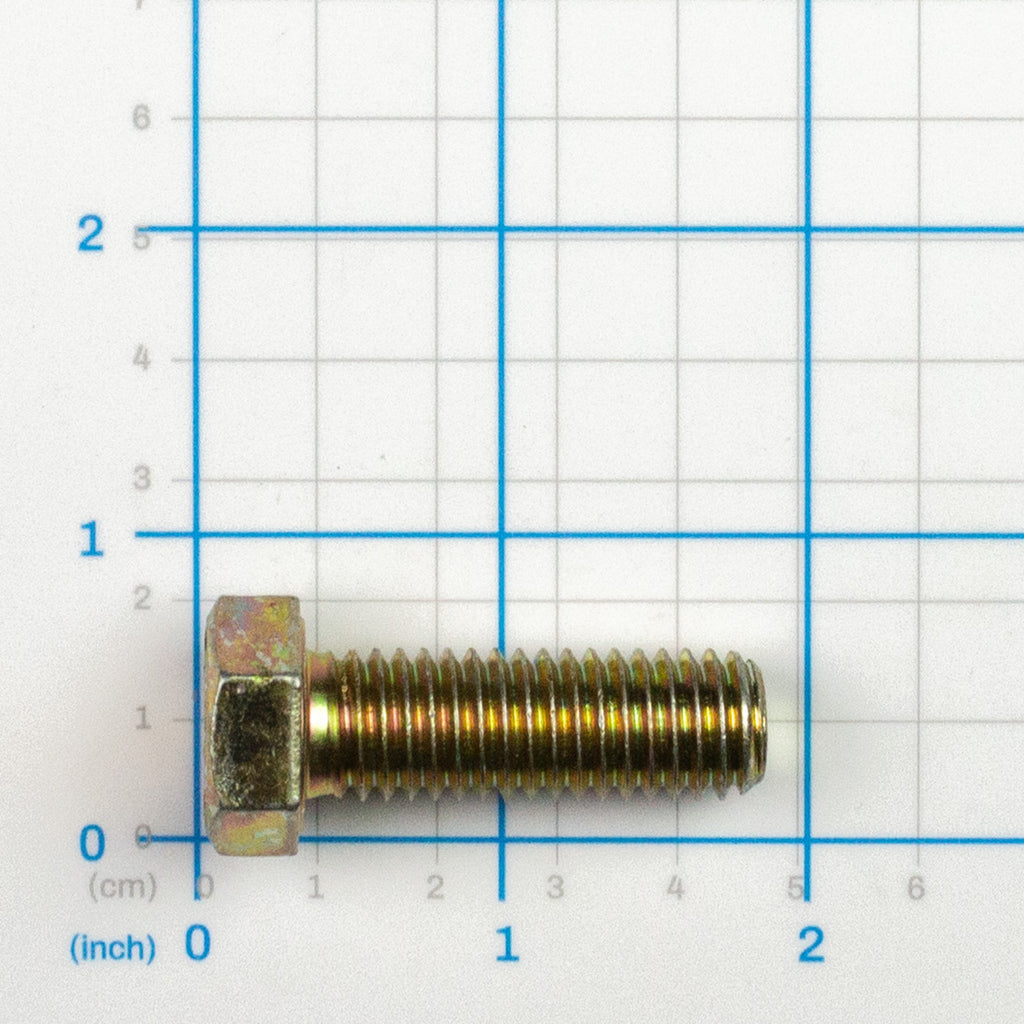

Capscrew, 0.500" NC x 1.50" (QUB04503)

Overview

Part QUB04503 (Capscrew, 0.500" NC x 1.50") is a genuine Labrie OEM part listed on parts diagrams for Labrie Automizer, Expert and MiniMax side loaders, the Labrie heavy-duty right-hand arm and Leach 2R-III rear loaders. It appears on 44 parts diagrams. Labrie's parts catalog lists it under Hardware.

Compatibility

Listed on these parts diagrams (item number and quantity per diagram):

• Labrie Automizer side loader
  • Packer - TTD (Section 1, page 15): item 7, qty 14
  • Packer Follower Panel - TTD (Section 1, page 17): item 6, qty 7
  • Packer - FE (Section 1, page 23): item 11, qty 12
  • Packer Follower Panel - FE (Section 1, page 25): item 6, qty 6
  • Side Door - 874757 (TTD Units) (Section 1, page 75): item 5, qty 4
  • Side Door - 868920 (TTD Units) (Section 1, page 83): item 1, qty 4
  • Side Door - 875575 (TTD Units) (Section 1, page 95): item 1, qty 3
  • Side Door Latch & Deflector's - 860758 (Section 1, page 97): item 9, qty 3
  • Plus 10 more Labrie Automizer side loader diagrams listed under Fits Vehicles
• Leach 2R-III rear loader
  • Packer and Carrier Installation - Strap Style (Section 1, page 19): item 3, qty 2
  • Packer/Carrier Installation - Hinged Style (Section 1, page 21): item 19, qty 4
  • Tailgate Upper Light Panels (No Center Brake Light) (Section 1, page 31): item 6, qty 8
  • Tailgate Upper LT. Panels (L.S. & R.S Dual Oval Strobes) (Section 1, page 32): item 6, qty 8
  • Tailgate Upper LT. Panels (Center Brake Light) (Section 1, page 33): item 6, qty 8
  • Tailgate Upper LT. Panel (Center Oval Strobes) (Section 1, page 34): item 6, qty 8
  • Ejector Assembly & Cyl. Pins (Section 3, page 87): item 16, qty 10
  • Container Handling (Latch & Ears) (Section 9, page 234): item 12, qty 2
  • Plus 9 more Leach 2R-III rear loader diagrams listed under Fits Vehicles
• Labrie heavy-duty right-hand arm
  • Rail Assembly, Center - 155695 - Heavy Duty RH Arm (Section 1, page 9): item 19, qty 6
  • Grabber Assembly - 185327 - Heavy Duty RH Arm (Section 2): item 14, qty 2
  • Grabber Assembly - 202280 - Heavy Duty RH Arm (Section 2): item 4, qty 2
  • Grabber Assembly - Heavy Duty RH Arm (Section 2): item 12, qty 2
• Labrie Expert side loader
  • Chute - Single - 40/60 - Units with LRHH Arm (Section 1, page 45): item 8, qty 2
  • Chutes - Dual - 50/50 & 60/40 - with 2 Tippers (Section 1, page 47): item 6, qty 2
  • Chute - Dual - 50/50 - (With HH & LRHH Arm) (Section 1, page 51): item 11, qty 2
• Labrie MiniMax side loader
  • Floating Panel - Wiper (Section 1, page 18): item 6, qty 9
  • Reservoir (Section 2, page 37): item 15, qty 4

Parts Support

Not sure this is the right part? Call SECI at (203) 933-9599 with your body model and serial number, or use the parts request form.
