Triple Edge Quattro Nozzle

Pipe Range: From 2" | Hose: 1/4" to 1 1/4" | Tier One and Tier Two

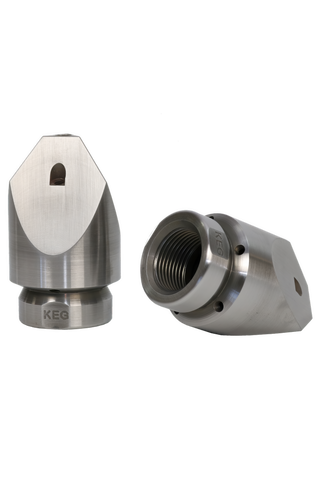

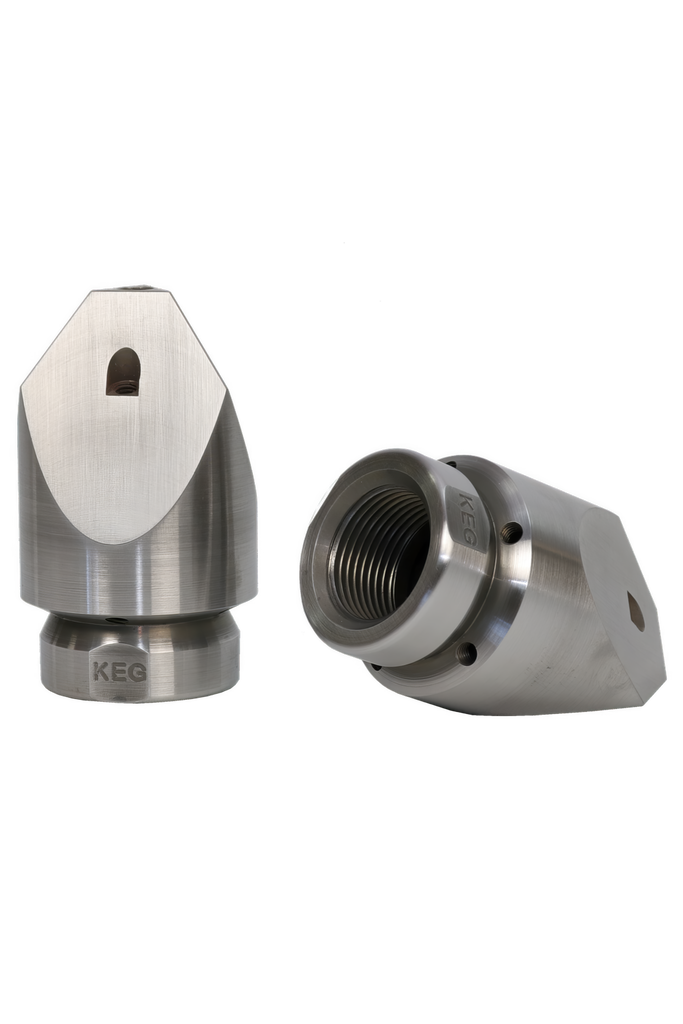

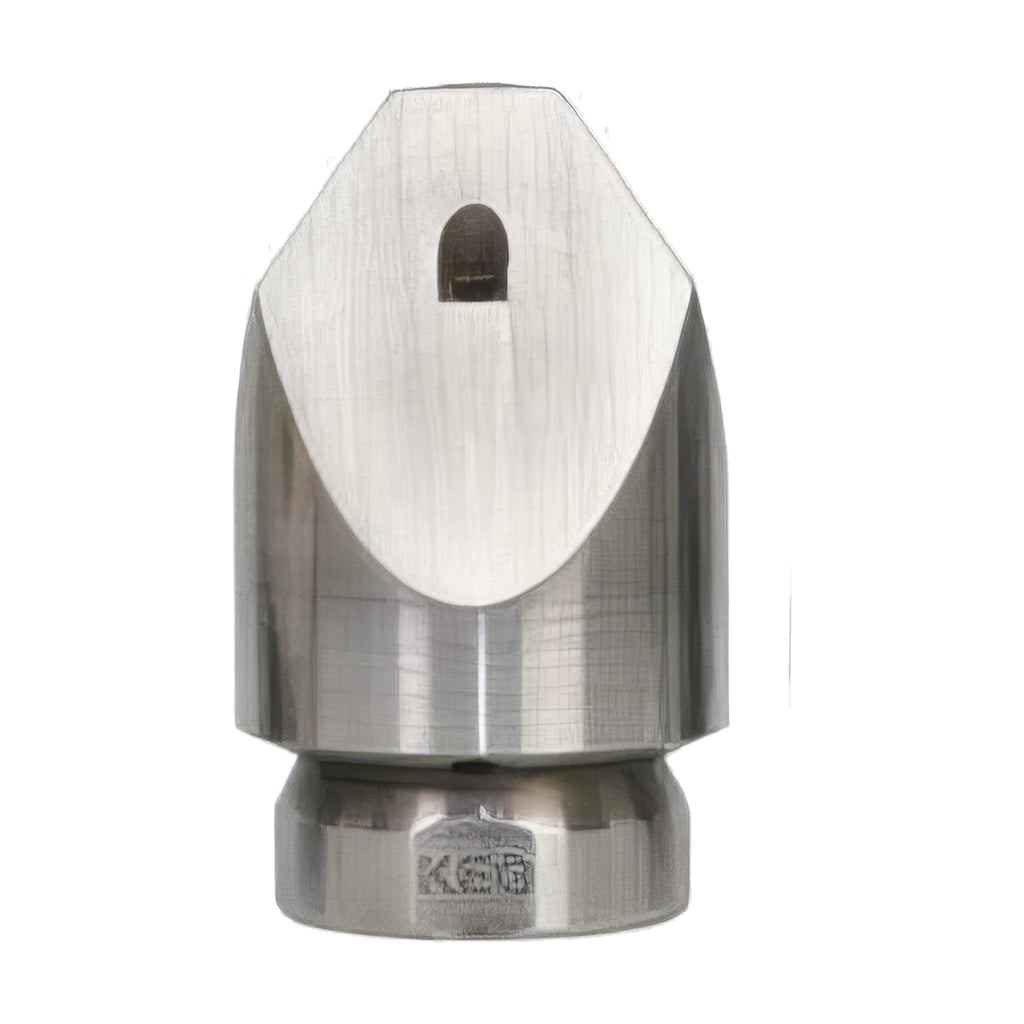

The KEG Triple Edge Quattro Nozzle is a penetrating nozzle that uses four forward jets and sharp edges to break through total blockages. It handles deformed pipe and stoppages made of sand, mud, roots or trash.

The body is hardened stainless steel. The 1/4", 3/8" and 1/2" sizes have factory jets (drilled on the 1/4" and 3/8"), while the 3/4" to 1 1/4" sizes carry four forward and five or six rear inserts in M6 or M8. A 1" Large version is also offered, and KEG rates the Triple Edge Quattro at Tier One and Tier Two efficiency.

Advantages

• Four forward jets open a path through the blockage
• Sharp edge design for total blockage removal
• Good thrust with forward jets
• Hardened stainless steel body
• Titanium ceramic or steel inserts on 3/4" and larger
• Sizes for 1/4" through 1 1/4" hose, plus a 1" Large

Applications

• Total blockages
• Deformed pipe
• Sand, mud, roots and trash
• Pipe from 2" depending on size

Sizes and KEG Part Numbers

Choosing the Right Version

• The 1/4", 3/8" and 1/2" sizes are offered with steel inserts only; 3/4" and larger are offered with titanium ceramic or steel inserts.
• KEG adds "-C" to the part number for titanium ceramic inserts and "-S" for steel inserts.
• Two 1" versions are offered: the standard 1" (100058) and the 1" Large (101058).
• The nozzle is supplied with its inserts.

How to Order Online

Select the size and insert material above. Before Add to Cart unlocks, enter your jetter's flow in gallons per minute (GPM), its operating pressure (PSI) and the length of your jet hose in feet. SECI uses these numbers to order the correct nozzle from KEG. KEG list pricing includes the nozzle, its inserts and the drill point where the nozzle has one.
