Pipe Range: From 6" | Hose: 1" | Tier Three Fluid Mechanics

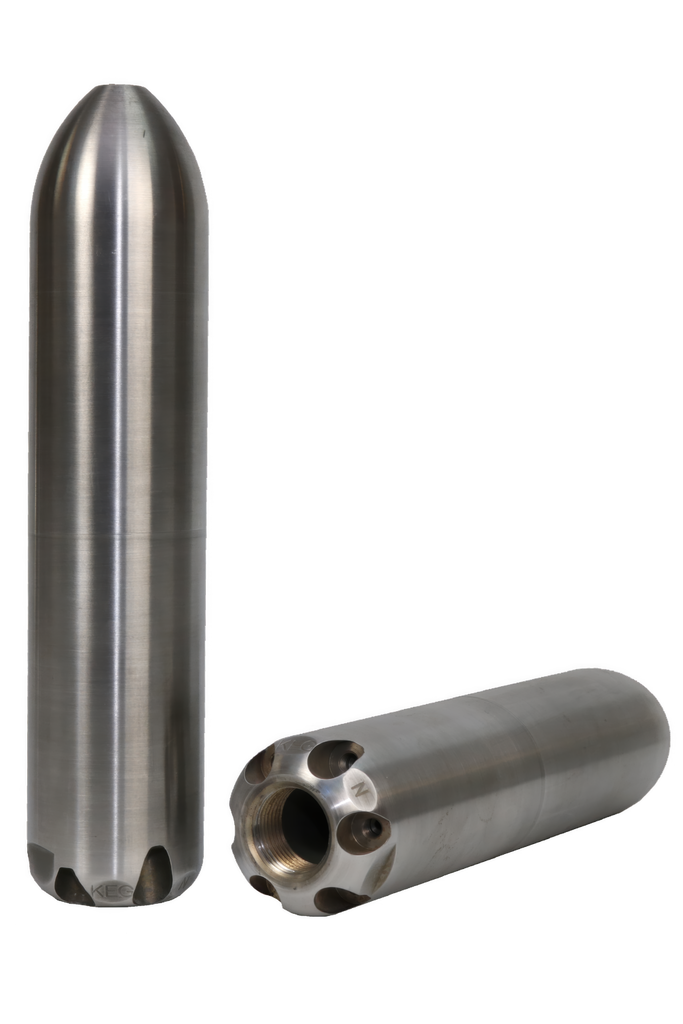

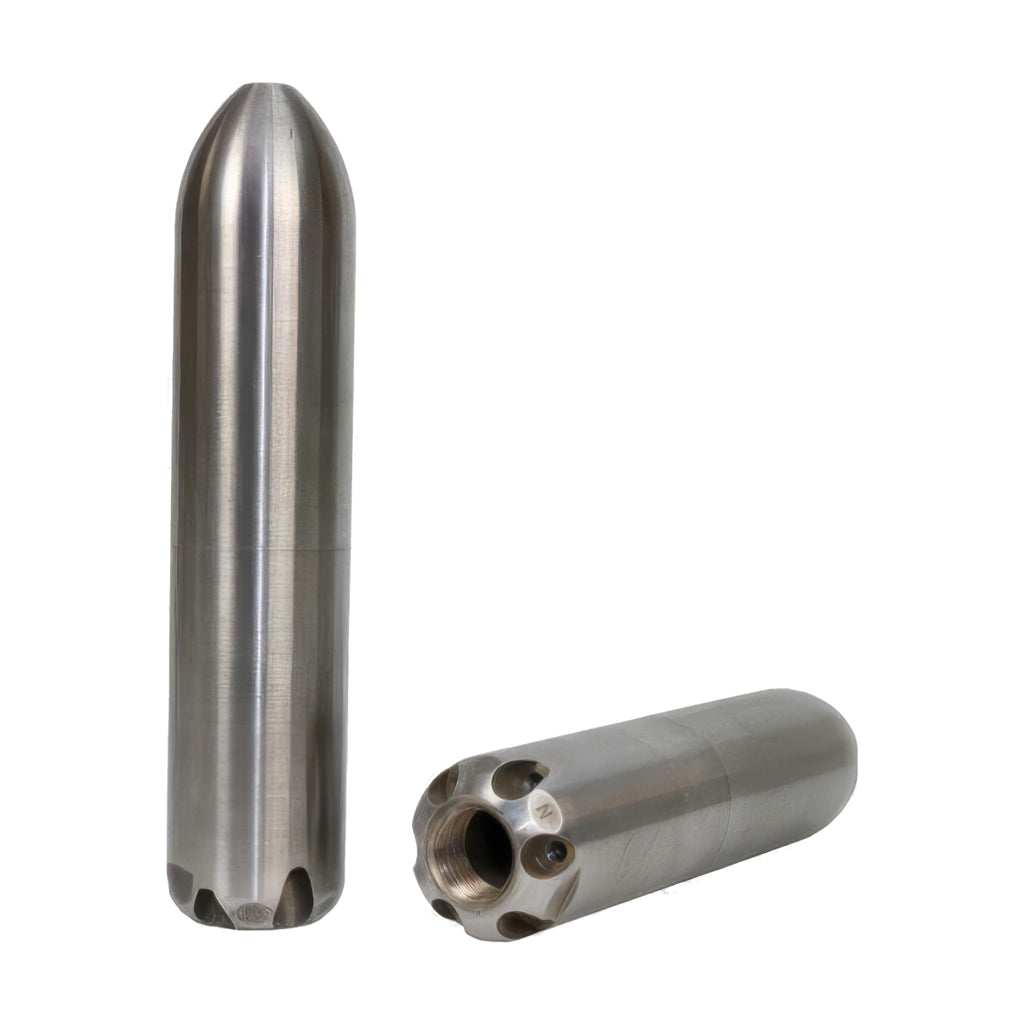

The KEG Stallion Nozzle is a medium-sized Tier Three penetrating nozzle for storm and sewer lines loaded with heavy debris, including pipe that is badly damaged or weakened. It is a strong flushing nozzle for corrugated metal, concrete, clay and plastic pipe, and its long body spans holes in the pipe and works through misaligned or disjointed sections.
The Tier Three design separates the water entering the nozzle from the water leaving it, producing a jet stream suited to penetrating and flushing debris and to negotiating steep grades. Jets are set at 8 and 12 degrees, with six rear inserts and one forward insert in M8 titanium ceramic. Because of the jet angles, KEG advises against using the Stallion to clean the walls of large pipe.
Advantages
- Tier Three efficiency and power
- High thrust with 8 and 12 degree jets
- Long design spans holes in pipe
- Minimal force on the pipe wall
- Works through misaligned or disjointed pipe
- Replaceable titanium ceramic inserts
Applications
- Sanitary and storm lines
- Mid to large lines with heavy debris
- Weakened or damaged pipe
- Clay, plastic, concrete, PVC and corrugated metal pipe
- Penetrating, flushing and pulling
Sizes and KEG Part Numbers
| Size |
KEG Part No. |
Inserts |
Insert Size |
Weight (lb) |
Dimensions |
Pipe Range |
| 1" |
100264 |
6 rear, 1 forward |
M8 |
9.4 |
12" x 3" |
From 6" |
Choosing the Right Version
- Offered with titanium ceramic inserts only.
- Not intended for cleaning the walls of large pipe because of its jet angles.
How to Order Online
Before Add to Cart unlocks, enter your jetter's flow in gallons per minute (GPM), its operating pressure (PSI) and the length of your jet hose in feet. SECI uses these numbers to order the correct nozzle from KEG. KEG list pricing includes the nozzle, its inserts and the drill point where the nozzle has one.
