OMG Twin Nozzles
Pipe Range: 12" and Up | Hose: 1", 1 1/4" | Tier Three Fluid Mechanics

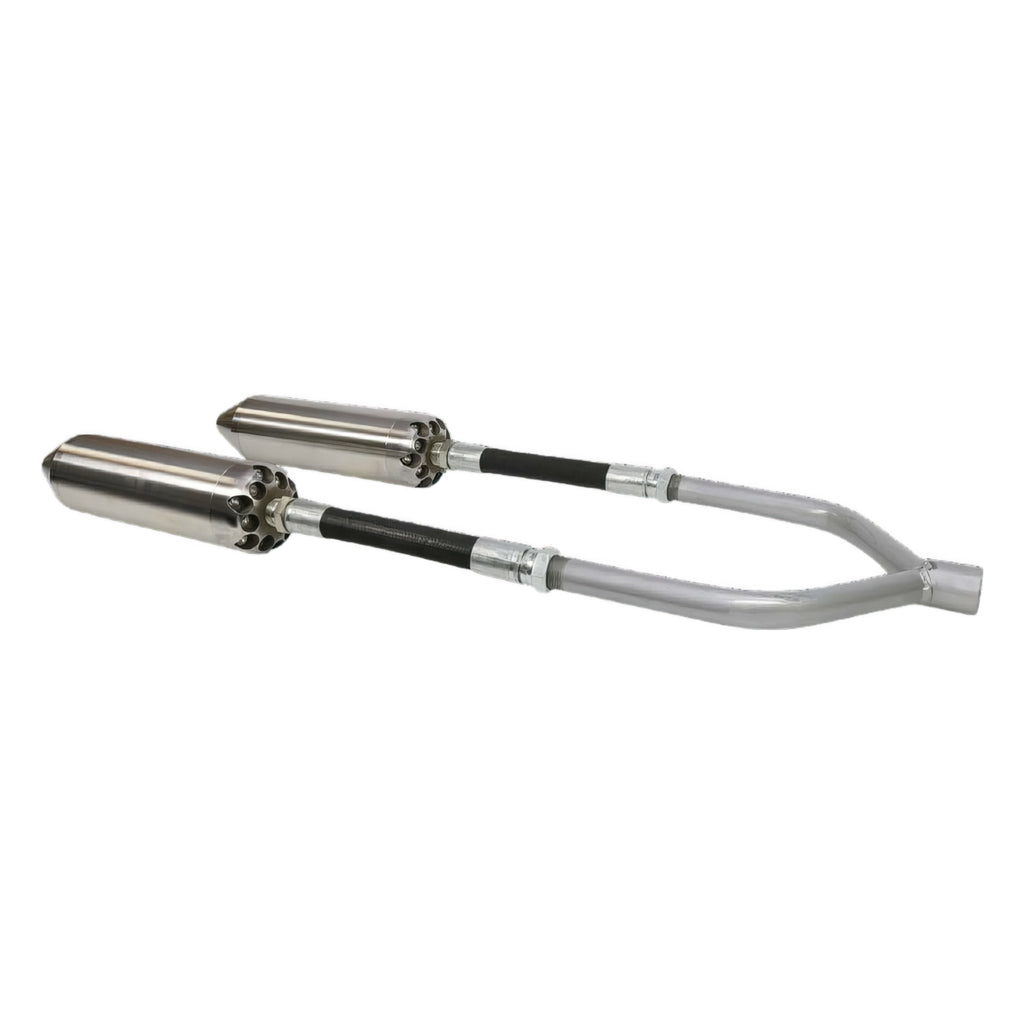

The KEG OMG Twin Nozzles pair two large Tier Three OMG nozzles for storm drain and sewer cleaning where the pipe wall may be compromised and pressure on it is not wanted. They suit deteriorated, corrugated metal and concrete pipe, including pipe with no bottom, and can clear a path for other nozzles.
The set carries 26 titanium ceramic inserts, with 12 jets at 8 degrees, 12 jets at 12 degrees and optional forward zero-degree jets that can be blanked to remove forward flow. KEG lists versions for 1" and 1 1/4" hose, each weighing 85 lb with dimensions of 48" x 24". An extra set of inserts is included so the OMG nozzles can also be run independently.
Advantages
- Tier Three efficiency and power
- High thrust from 8 and 12 degree jets
- Long design spans holes in pipe
- Minimal force on the pipe wall
- Replaceable titanium ceramic inserts
- Extra insert set included for running the nozzles independently
Applications
- Sanitary and storm lines
- Pipe with no bottom
- Concrete and corrugated metal pipe
- Penetrating, flushing and pulling
- Clearing a path for other nozzles
Sizes and KEG Part Numbers
| Size | KEG Part No. | Inserts | Insert Size | Weight (lb) | Dimensions | Pipe Range |
|---|---|---|---|---|---|---|
| 1" | 100266-T | 24 rear, 2 forward | M14 | 85 | 48" x 24" | 12" and up |
| 1 1/4" | 100267-T | 24 rear, 2 forward | M14 | 85 | 48" x 24" | 12" and up |
Choosing the Right Version
- Offered with titanium ceramic inserts only.
- KEG lists a Y Connector accessory (1" to 1 1/4" hose) as the connection tool for twin nozzle operation with OMG nozzles.
Pricing
This product is not priced online. Call SECI at (203) 933-9599 for a quote.
