OMG Nozzle

Pipe Range: 12" and Up | Hose: 1" or 1 1/4" (Bushing) | Tier Three Fluid Mechanics

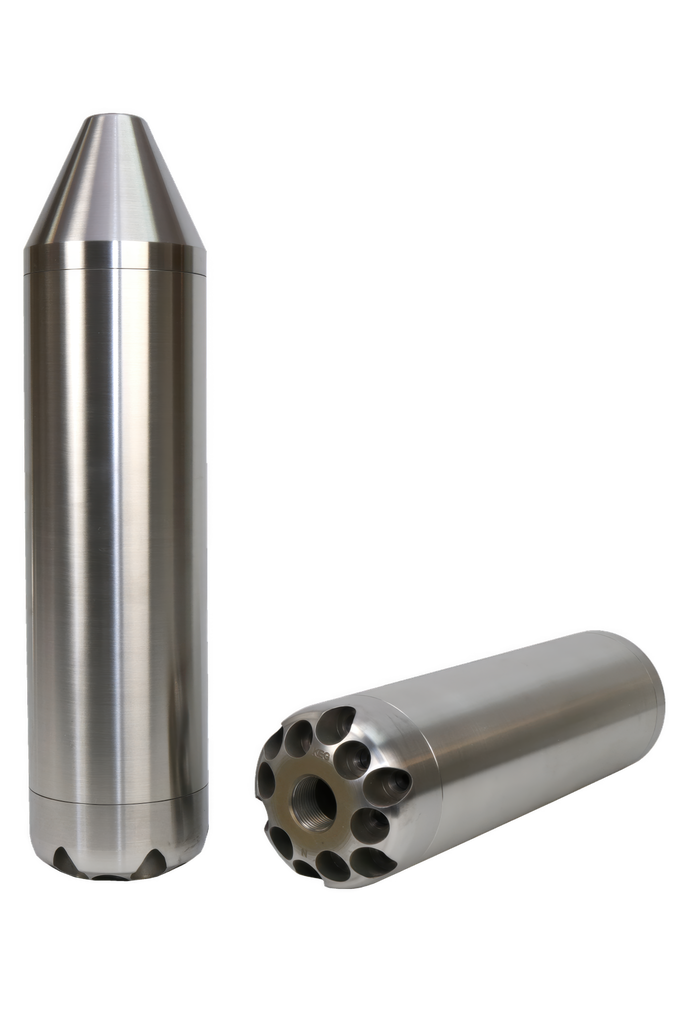

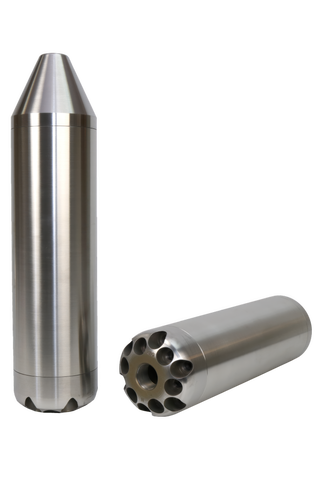

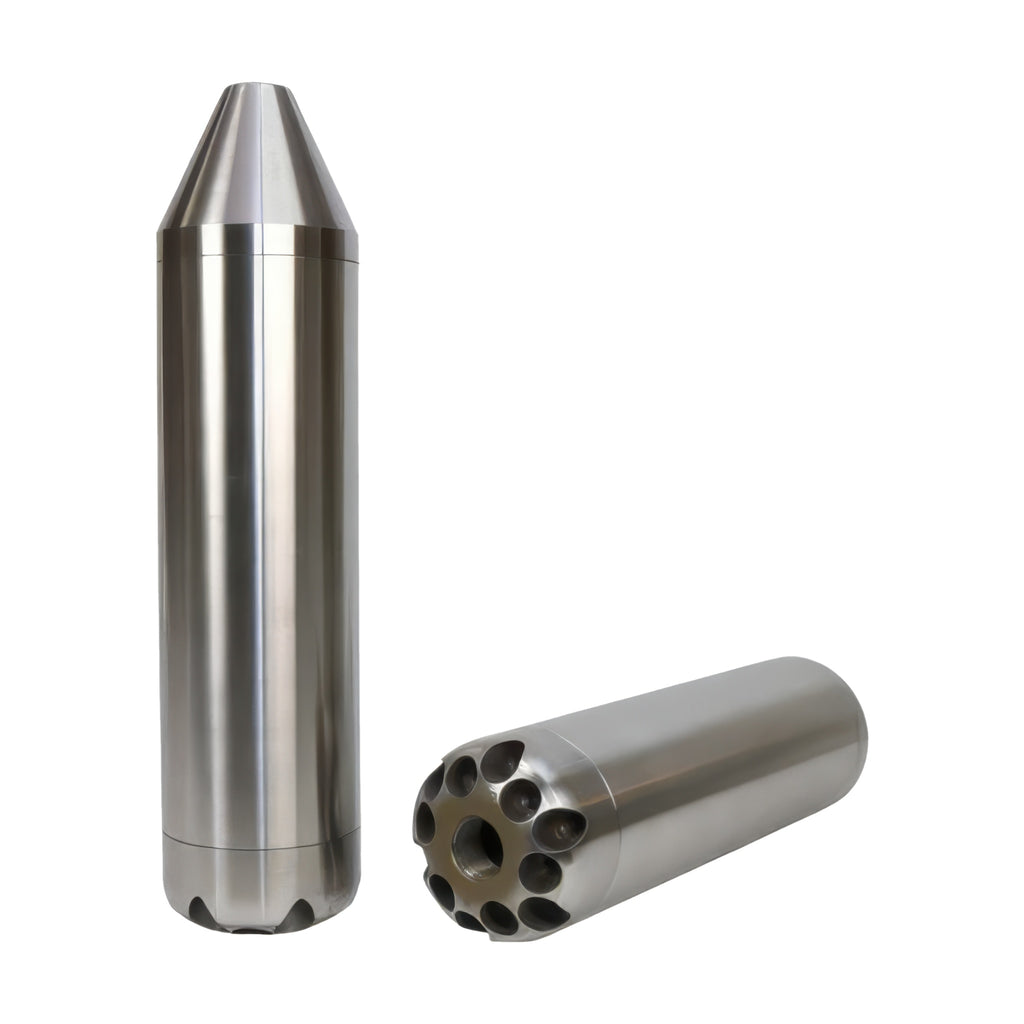

The KEG OMG Nozzle is a large Tier Three nozzle for storm drain and sewer cleaning where the pipe wall may be compromised and pressure against it should be kept to a minimum. It is well suited to deteriorated pipe, corrugated metal and concrete pipe, and pipe with no bottom, and it can clear a path for other nozzles.

The Tier Three design separates the water coming into the nozzle from the water leaving it, and the long body spans holes in the pipe. It carries 13 titanium ceramic inserts: six jets at 8 degrees, six at 12 degrees and an optional forward zero-degree jet that can be blanked to remove forward flow. KEG supplies the OMG with a 1 1/2" connection and a bushing to 1" or 1 1/4" hose, selected at order.

Advantages

• Tier Three efficiency and power
• High thrust from 8 and 12 degree jets
• Long design spans holes in pipe
• Minimal force on the pipe wall
• Replaceable titanium ceramic inserts
• Forward jet can be blanked to remove forward flow

Applications

• Sanitary and storm lines
• Pipe with no bottom
• Concrete and corrugated metal pipe
• Penetrating, flushing and pulling
• Clearing a path for other nozzles

Sizes and KEG Part Numbers

Choosing the Right Version

• Select the bushing for 1" or 1 1/4" hose; the nozzle connection is 1 1/2".
• Offered with titanium ceramic inserts only.
• A blank can be fitted in the forward jet to remove forward flow.
• A pulling eye option is listed in KEG's accessories and sold separately.

How to Order Online

Select the hose size above. Before Add to Cart unlocks, enter your jetter's flow in gallons per minute (GPM), its operating pressure (PSI) and the length of your jet hose in feet. SECI uses these numbers to order the correct nozzle from KEG. KEG list pricing includes the nozzle, its inserts and the drill point where the nozzle has one.
