Hose Size: 1/2" | Pipe Range: From 3" | Tier Two Fluid Mechanics

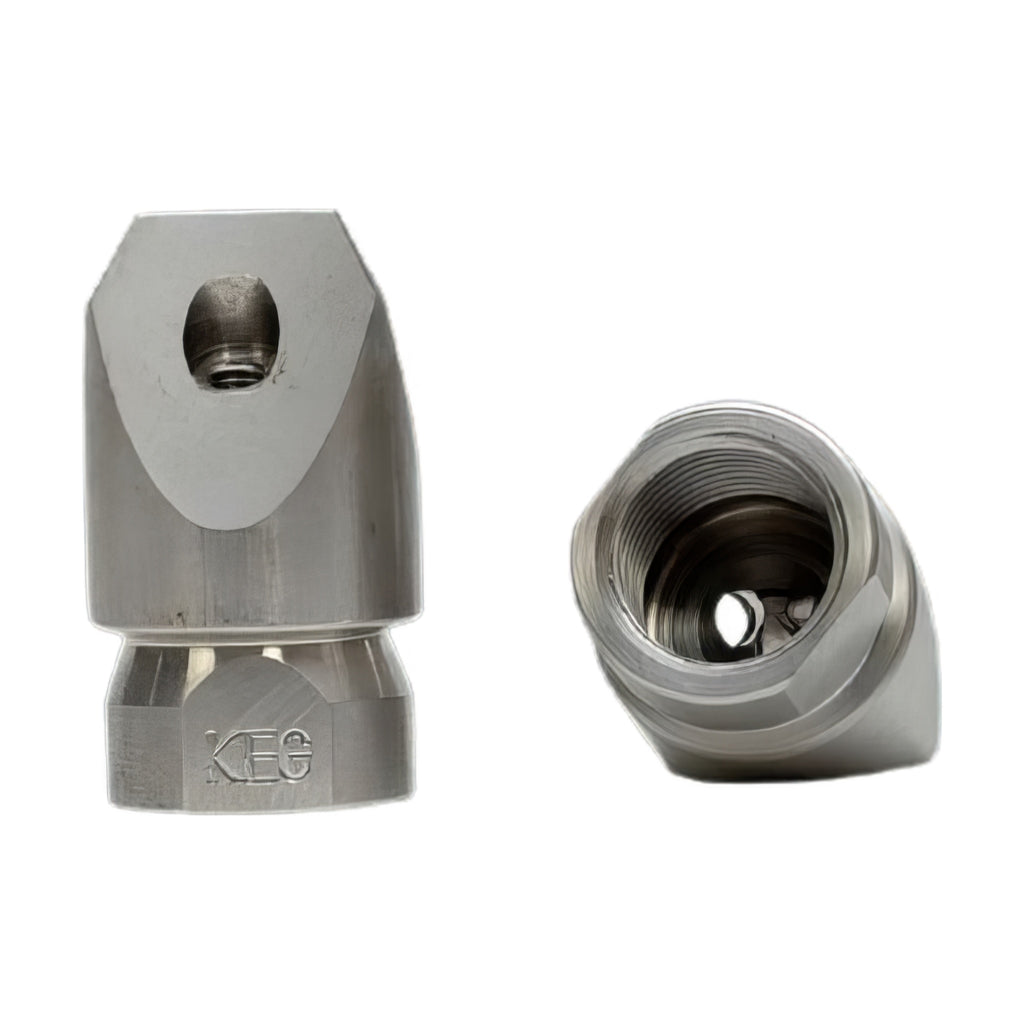

The KEG Hydro-X Triple Edge Quattro is a penetrating hydro excavation nozzle for digging, root system removal and dirt extraction in tight spaces. Four forward jets and sharp chiseled edges let the operator cut through debris while working in a small area.
It is a 1/2" nozzle with a wear-resistant stainless steel body, rated for 6 to 25 GPM and listed for pipe from 3". KEG supplies it with four replaceable titanium ceramic inserts, and a steel insert version is also offered.
Advantages
- Four forward jets angled to cut through debris
- Sharp chiseled edges for root cutting
- Compact for work in small spaces
- Replaceable inserts, titanium ceramic or steel
- Wear-resistant stainless steel body
- All-terrain use
Applications
- Hydro excavation and digging
- Dirt, debris and root systems in tight spaces
- Digging outside pipe and gas lines
- Pipe location
- Congested areas
Sizes and KEG Part Numbers
| Size |
KEG Part No. |
Inserts |
Weight (lb) |
Dimensions |
Pipe Range |
| 1/2" |
100054-HX |
4 forward |
0.3 |
2 1/4" x 1" |
From 3" |
Choosing the Right Version
- Choose titanium ceramic (C) or steel (S) inserts.
- This is the hydro excavating version (100054-HX); KEG's standard 1/2" Quattro nozzle is a separate part.
How to Order Online
Select the size and insert material above. Before Add to Cart unlocks, enter your jetter's flow in gallons per minute (GPM), its operating pressure (PSI) and the length of your jet hose in feet. SECI uses these numbers to order the correct nozzle from KEG. KEG list pricing includes the nozzle, its inserts and the drill point where the nozzle has one.
