Floor Cleaner Nozzle

Pipe Range: 6" to 72" | 5 to 14 Jets | Tier Three Fluid Mechanics (5 Jet: Tier Two)

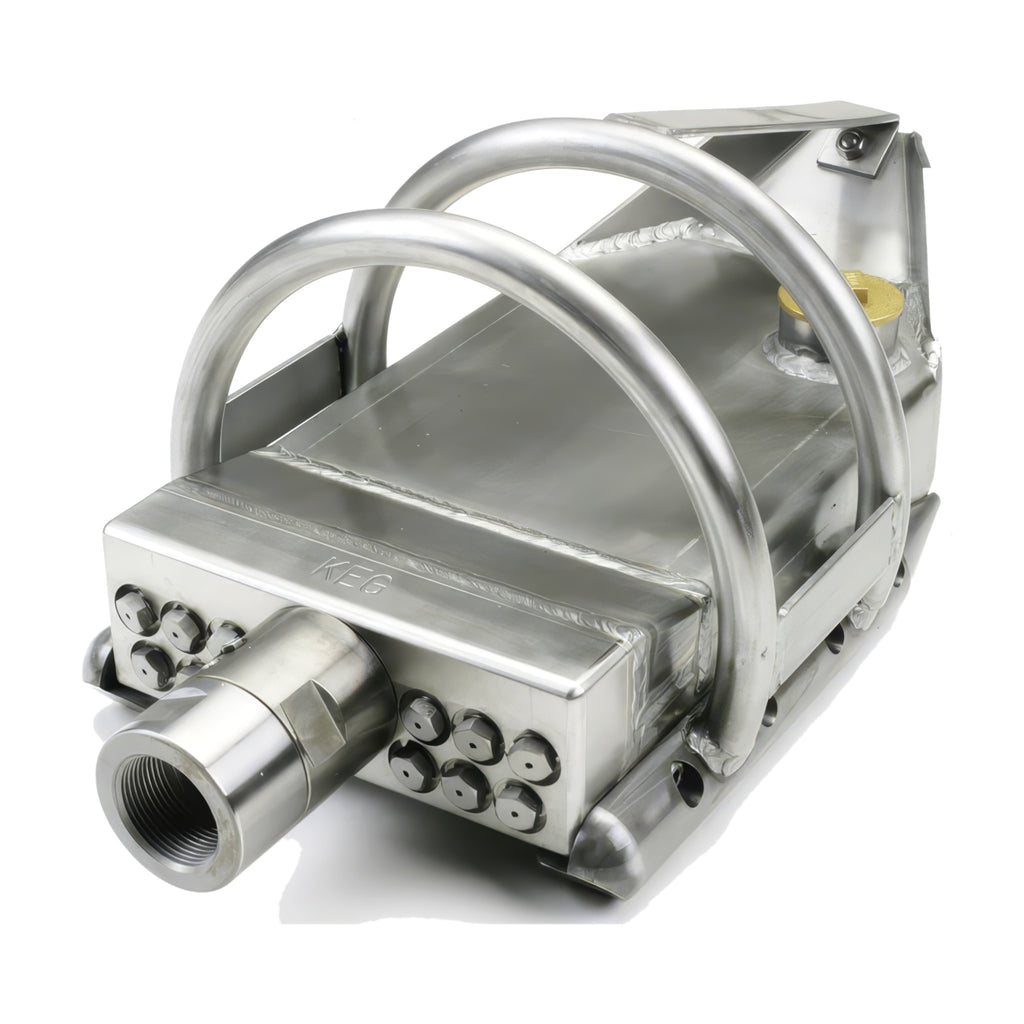

The KEG Floor Cleaner is a bottom cleaning nozzle for storm lines, detention systems, culverts and large sanitary pipe. It is built to move sludge, mud, compacted material and heavy debris such as rocks, bricks and broken concrete along the pipe floor.

KEG's fluid mechanics turn hose flow into cleaning force at each jet, and a roll cage brings the unit back upright so the jets work as designed. Six models run from 5 jets for 6" to 18" pipe up to 14 jets for 18" to 72" pipe, all with M14 inserts in titanium ceramic or steel. The 6 Jet through 14 Jet models carry Tier Three fluid mechanics; the 5 Jet is a Tier Two nozzle.

Advantages

• Self-righting roll cage returns the cleaner upright in the pipe
• Fillable weight port for high flow conditions
• Jet angles and flow pattern designed for heavy bottom debris
• Six jet counts to match pump flow and pipe diameter
• Replaceable M14 inserts in titanium ceramic or steel
• Can run in tandem as a pair for culverts

Applications

• Sanitary and storm lines
• Heavy or compacted solids and sludge
• Large stone and brick removal
• Detention systems and culverts
• High pump flow jetters
• Tandem culvert cleaning

Sizes and KEG Part Numbers

Choosing the Right Version

• Choose titanium ceramic (C) or steel (S) inserts for each model.
• KEG lists each floor cleaner with a swivel: 5 Jet with a 1" or 3/4" swivel (1" x 1/2" for a 1/2" truck), 6 and 8 Jet with a 1" swivel (1" x 3/4" for a 3/4" truck), and 10, 12 and 14 Jet with a 1 1/4" swivel (1 1/4" x 1" for a 1" truck).
• KEG lists bolt-on and weld-on roll cages and skids and angle adaptors as accessories. KEG Highrise Skids (100288AHL) fit the 6 Jet through 14 Jet models with bolt-on roll cages and raise the cleaner about 1" off the pipe bottom to ride over offset joints on retrieval.

How to Order Online

Select the model and insert material above. Before Add to Cart unlocks, enter your jetter's flow in gallons per minute (GPM), its operating pressure (PSI) and the length of your jet hose in feet. SECI uses these numbers to order the correct nozzle from KEG. KEG list pricing includes the nozzle, its inserts and the drill point where the nozzle has one.
