Drill Point Quattro Nozzle

Pipe Range: From 2" | Hose: 1/4" to 1" | Tier One and Tier Two

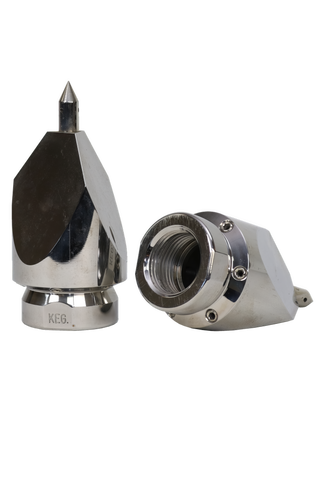

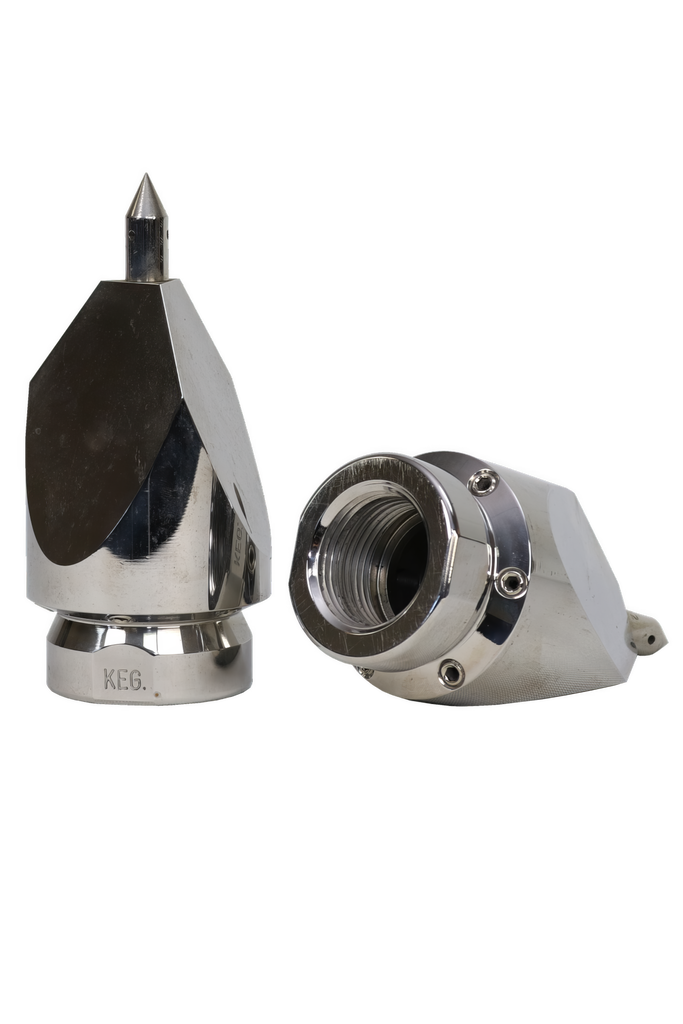

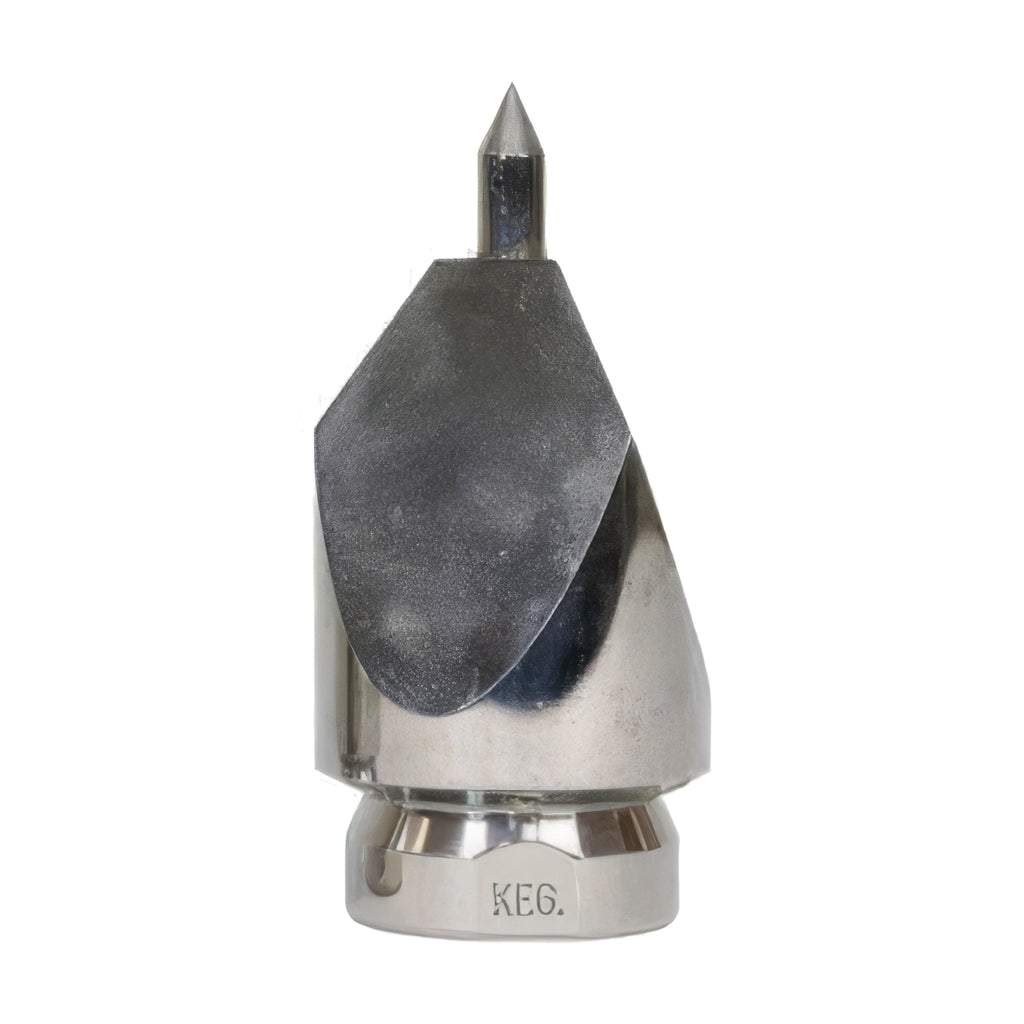

The KEG Drill Point Quattro Nozzle is a penetrating nozzle for total line blockages, led by a stainless steel drill tip that bores into tough clogs, grease in particular. Three jets pre-drilled in the replaceable tip widen the opening while the sharp, tapered edges of the body work the clog apart.

Propulsion jets at the rear give the nozzle strong thrust and wash the loosened debris down the line. KEG classifies it as Tier One or Tier Two depending on size and whether replaceable inserts are fitted. The 1/4", 3/8" and 1/2" sizes come with factory steel inserts only, and the 3/4" and 1" sizes take six M6 inserts in steel or titanium ceramic.

Advantages

• Replaceable drill point with three pre-drilled jets
• Stainless steel drill tip for grease blockages
• Sharp, tapered edges enlarge the opening
• Strong thrust and traction from rear propulsion jets
• Replaceable inserts on 3/4" and 1" sizes
• Tier One and Tier Two nozzle by size

Applications

• Sanitary lines
• Total blockages
• Grease penetration
• Pipes from 2" and up

Sizes and KEG Part Numbers

Choosing the Right Version

• The 1/4", 3/8" and 1/2" sizes are offered only with factory steel inserts.
• For the 3/4" and 1" sizes, KEG adds "-C" to the part number for titanium ceramic inserts and "-S" for steel inserts.
• The nozzle is supplied with its inserts and drill point.

How to Order Online

Select the size and insert material above. Before Add to Cart unlocks, enter your jetter's flow in gallons per minute (GPM), its operating pressure (PSI) and the length of your jet hose in feet. SECI uses these numbers to order the correct nozzle from KEG. KEG list pricing includes the nozzle, its inserts and the drill point where the nozzle has one.
