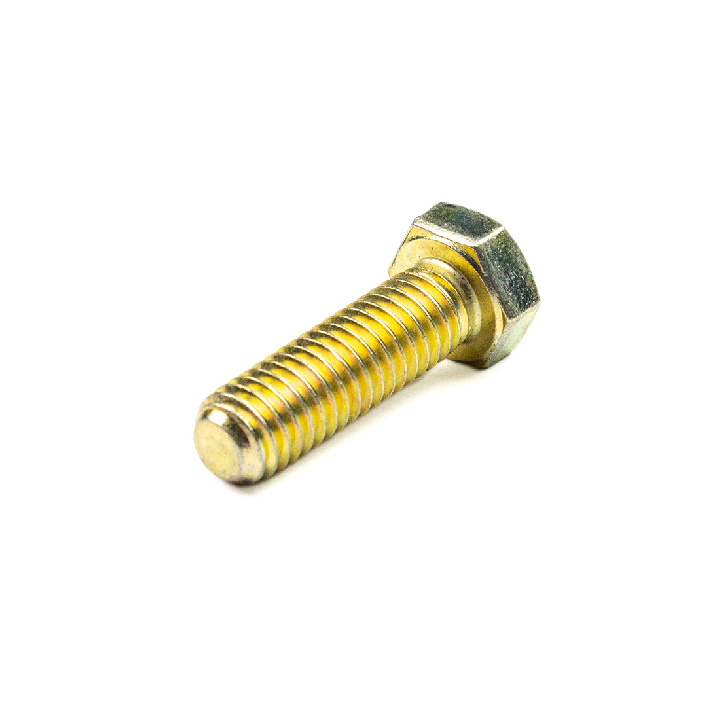

3/8"-16 x 1-1/4" Grade 8 Hex Head Bolt (QUB03501)

Overview

The 3/8"-16 x 1-1/4" Grade 8 Hex Head Bolt (QUB03501) is a genuine Labrie OEM part listed on the parts diagrams for Labrie Automizer, Expert and MiniMax side loaders, the Labrie heavy-duty right-hand arm, Leach 2R-III rear loaders and Wittke Starlight & Super Duty front loaders. It appears on 89 parts diagrams, including Curbside Hopper Doors, Streetside Hopper Door and Packer/Carrier Installation. Labrie's parts catalog lists it under Hardware.

Compatibility

Listed on these parts diagrams (item number and quantity per diagram):

• Labrie Automizer side loader
  • Body Enclosures - Front Grated - 849416 (Section 1, page 67): item 1, qty 6
  • Side Door - 870530 (TTD Units) (Section 1, page 73): item 32, qty 4
  • Side Door - 874757 (TTD Units) (Section 1, page 75): item 28, qty 4
  • Side Door - 835313 (TTD Units) (Section 1, page 79): item 32, qty 4
  • Side Door - 835316 (TTD Units) (Section 1, page 81): item 32, qty 4
  • Side Door - 868920 (TTD Units) (Section 1, page 83): item 39, qty 2
  • Side Door Latch & Deflector's - 860758 (Section 1, page 97): item 23, qty 4
  • Side Door Latch & Deflector's - 805672 (Section 1, page 99): item 35, qty 6
  • Plus 36 more Labrie Automizer side loader diagrams listed under Fits Vehicles
• Leach 2R-III rear loader
  • Packer/Carrier Installation - Hinged Style (Section 1, page 21): item 15, qty 8
  • Tailgate Upper Light Panels (No Center Brake Light) (Section 1, page 31): item 5, qty 8
  • Tailgate Upper Lt. Panels (L.S. & R.S Dual Oval Strobes) (Section 1, page 32): item 5, qty 8
  • Tailgate Upper Lt. Panels (Center Brake Light) (Section 1, page 33): item 5, qty 8
  • Tailgate Upper Lt. Panel (Center Oval Strobes) (Section 1, page 34): item 5, qty 8
  • Tailgate Deflector (Section 1, page 41): item 3, qty 2
  • Ladder, Side Door - Fixed (Section 2, page 72): item 3, qty 4
  • Mud Guards - Front of Tandem - Steel - 20 Yd. Only (Section 2, page 81): item 5, qty 8
  • Plus 22 more Leach 2R-III rear loader diagrams listed under Fits Vehicles
• Labrie Expert side loader
  • Floating Panels & Follower Scrapers (Section 1, page 33): item 18, qty as required
  • Light Bars - Mid TG - All (Section 1, page 75): item 11, qty as required
  • Mud Guards - Misc. (Section 1, page 81): item 11, qty as required
  • Fenders (Section 1, page 83): item 17, qty as required
  • Reservoir Assembly - Oil - 65 Gal. (Top of Frame) (Prior 2014) (Section 2, page 185): item 8, qty 4
  • Bodt Tilt Switch (Section 6, page 232): item 8, qty 2
• Labrie heavy-duty right-hand arm
  • Finger Assy. - 163060 (Section 2): item 5, qty 8
  • Grabber Assembly - 189423 (Section 2): item 2, qty 2
  • Rail Assembly, Inside - HYV30192 (Section 1): item 13, qty 1
• Wittke Starlight & Super Duty front loader
  • Body Rear Lower Wiring & Hydraulic Covers - Side Door (Section 2, page 43): item 1, qty 4
  • Top Doors (Section 2, page 44): item 1, qty 4
  • Fork Hyds Dual Adjustable - Fork (Section 4, page 80): item 13, qty 9
• Labrie MiniMax side loader
  • Curbside Hopper Doors (Section 1, page 13): item 18, qty 6
  • Streetside Hopper Door (Section 1, page 15): item 9, qty 2
  • Reservoir (Section 2, page 37): item 22, qty 4

Parts Support

Not sure this is the right part? Call SECI at (203) 933-9599 with your body model and serial number, or use the parts request form.
